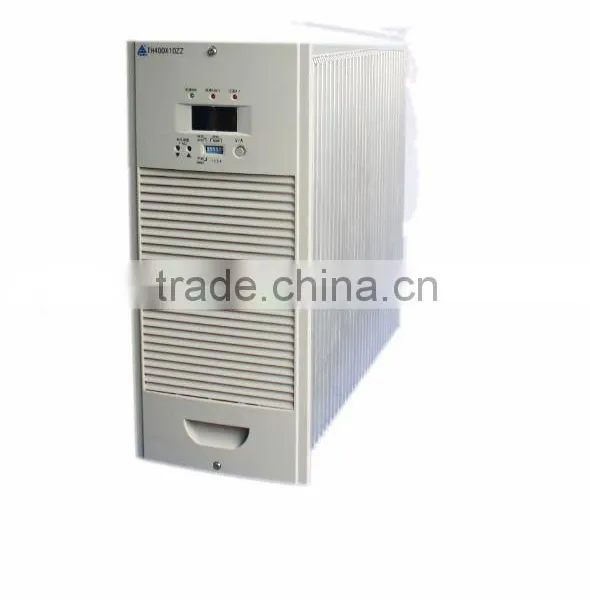

400V DC Switch Mode Power Supply

Name: 400V DC Switch Mode Power Supply
Brand: TonHe
SKU: 104736987

US$ 500 - 600 MOQ: 1 Unit

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

TonHe

Model Number:

TH400X10ZZ

Shijiazhuang Tonhe Electronics Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name TonHe

Model Number TH400X10ZZ

Output Power Other, 4KW

Output Type Other, DC

Input Voltage 380V

Output Voltage 400VDC

Output Current 10A

Specifications

1.400VDC Output
2.High efficiency,high reliability,low cost
3.Protections:short circuit/over load
4.Emergency power supply

Mode Item			TH400X10ZZ
Output current(A)			10
Power(KW)			4
Weight(kg)			16
Cooling method			Natural cooling
Interior radiator temperature rise			≤30°C
Output adjustment range(VDC)		minimum	350
		Typical value	364
		maximum	400
Over voltage protection			430±10VDC
Input voltage range(VAC)		minimum	323
		Typical value	380
		maximum	437
Stability precision of voltage			±0.5%
Stability precision of current			±1%
Power factor			≥0.93
Efficiency			≥90%
Maximum noise(dB)			50
Storage temperature(°C)	minimum		-40
	Typical value		25
	maximum		60
Working temperature(°C)	minimum		-10
	Typical value		25
	maximum		40
Parallel instability			±5%
Start up time(s)			3~8
Ripple coefficient			≤0.5%
Over current protection			When output current over point value, it will stable output. The output current will not increase.
Output shot circuit protection			When short circuit the module will automatic protect itself. When the trouble is over ,the module recovery to work.
