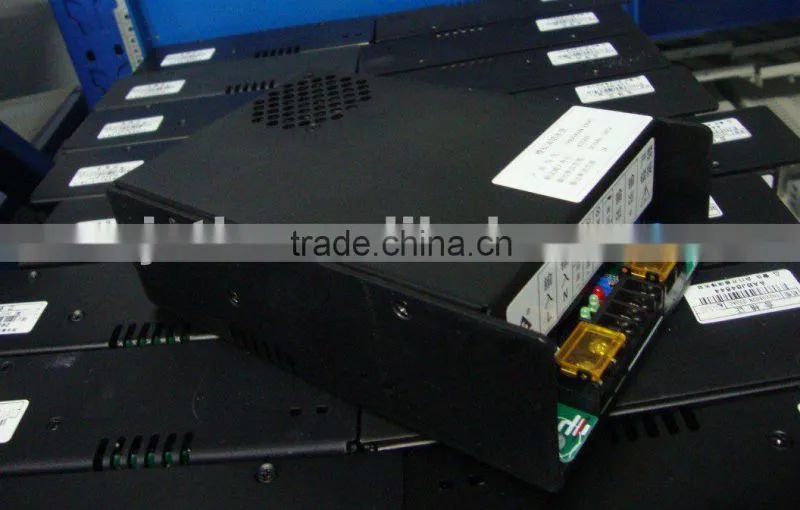

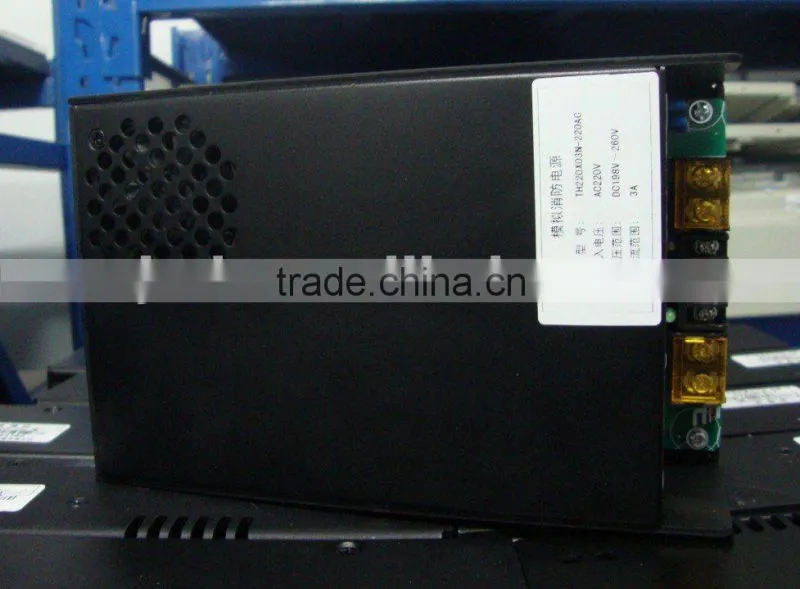

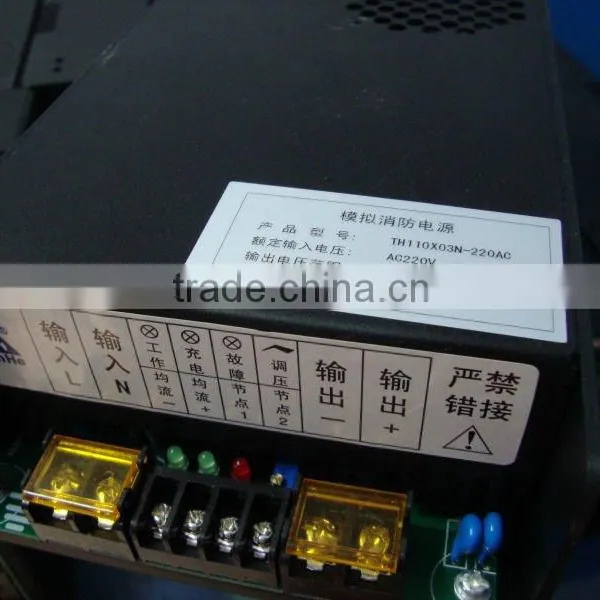

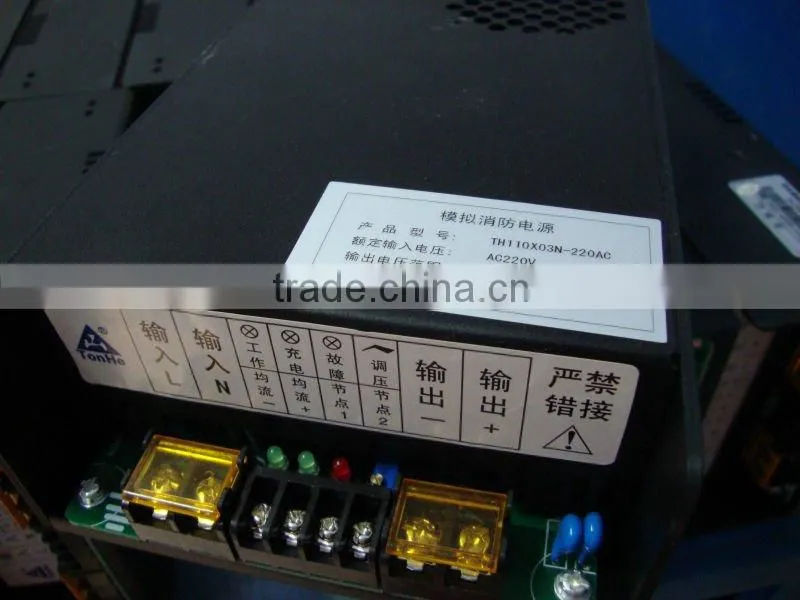

110V 3A emergency power supply module/EPS/ac-dc rectifier

Mode

Item

TH110X03N-220AC

Output current(A)

3

Power(KW)

0.3

Weight(kg)

1

Cooling method

Fan cooling

Interior radiator temperature rise

≤30°C

Output adjustment range(VDC)

minimum

95

Typical value

110

maximum

130

Over voltage protection

260

Input voltage range(VAC)

minimum

165

Typical value

220

maximum

253

Stability  precision of voltage

±0.5%

Stability  precision of current

±1%

Power factor

≥0.93

Efficiency

≥90%

Maximum noise(dB)

50

Storage temperature(°C)

minimum

-40

Typical value

25

maximum

60

Working temperature(°C)

minimum

-10

Typical value

25

maximum

40

Parallel instability

±5%

Start up time(s)

3~8

Ripple coefficient

≤0.5%

Over current protection

When output current over point value, it will stable output. The output current will not increase.

Output shot circuit protection

When short circuit the module will automatic protect itself. When the t

rouble is over ,the module recovery to work.
