Product Parameter laser diode 520nm 1w:
| Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit | |
| Optical Output Power | Po | If=1.5A | - | 1.0 | - | W | |
| Dominant Wavelength | Lp | If=1.5A | 510 | 520 | 525 | nm | |
| Threshold Current | Ith | CW | - | 0.3 | - | mA | |
| Slope Efficiency | CW | η | - | 0.83 | - | W/A | |
| Operating Voltage | Vop | If = 1.5A | - | 4.6 | - | V | |
| Beam Divergence Full Angle | Perpendicular | Qv | If = 1.5A | 35 | 46 | 55 | ° |
| Parallel | Qh | 5 | 11 | 25 | ° | ||
| Emission Point Accuracy | Perpendicular | dQv | If = 1.2A | -5.0 | - | 5.0 | ° |
| Absolute Maximum Ratings (Tc=25°C) | |||||||
| Parameter | Symbol | Ratings | Unit | ||||
| Forward Current | If | 1.8 | A | ||||
| Allowable Reverse Current | Ir (LD) | 85 | mA | ||||
| Operating Case Temperature | Tc | 0 to 50 | °C | ||||
| Storage Temperature | Tstg | -40 to 85 | °C | ||||

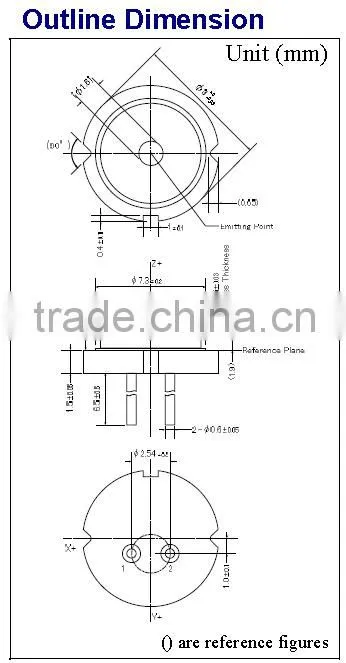

Outline demesion for laser diode 520nm 1w:

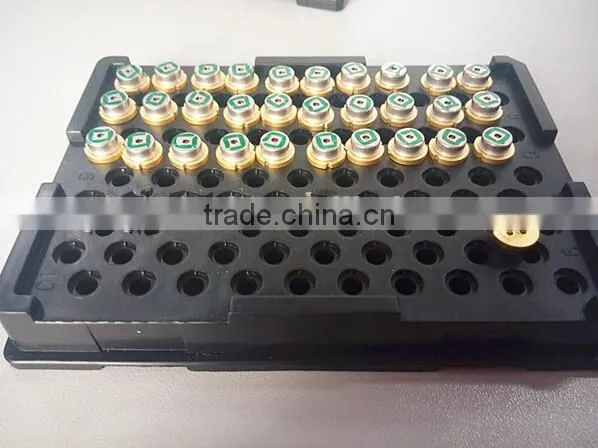

Packing for 520nm 1w laser diodes:
Plastic box package, it depends on different kinds of laser diodes with different sizes.52
Shipping for 520nm 1w laser diodes:
Yaya Tech. was founded in March, 2012, which has been registered in Dongguan, China, and Hong Kong. It's an electronic science and technology co., ltd of specializing in smart phone accessories designning, processing, production and selling. Products are hot selling in Southeast Asia, Europe and US., Central and South America. The strategy of company is focusing on high-grade quality products.
our products mainly have:
1.All kinds of bluetooth speakers
2.earphones
3.power banks
4.cell phone covers
5.USB cables and etc.
6.laser diodes
7.laser modules
520nm 1000mw laser diodes 520nm 1000mw laser diodes
What's the payment terms in your factory?
1. We accept T/T, paypal, western union ,and other payment terms
2. 30% advanced payment, 70% balance finished before shipment.
What's the MOQ of your factory?
Normally, our MOQ is 1pc, also welcome to test our products.
What's the leadtime of your order?
For laser diodes ,normally it's 1~3 days after get the confirmed order.
Why we can offer new nichia 520nm 1w laser diodes?
Our products are imported with original packaging,
we also will test them before send you to make sure the products'quality.
If I have other goods in your area, can I ask my supplier to send you the goods and ship together?
Yes, we can provide the warehouse for free for you, and then arrange shipping company to ship together.
Thanks very much for being with us, and welcome you to more about us YAYA TECH.
