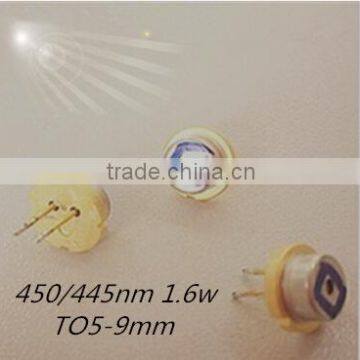

nichia TO5 9mm 450nm 1.6w blue laser diode
Absolute Maximum Ratings (Tc=25℃)
Item |
Symbol |
Absolute Maximum Ratings |
Unit |
Forward Current (Tc=25℃) |
If |
1.7 |
A |
Allowable Reverse Current (Tc=25℃) |
Ir (LD) |
85 |
mA |
Storage Temperature |
Tstg |
-40~85 |
℃ |
Operating Case Temperature |
Tc |
0~50 |
℃ |
Initial Electrical /Optical Characteristics (Tc=25℃)
Item |
Condition |
Symbol |
Min |
Typ. |
Max |
Unit |
Optical Output Power |
If=1.2A |
Po |
1.1 |
1.6 |
- |
W |
Dominant Wavelength |
If=1.2A |
λp |
435 |
- |
455 |
nm |
Threshold Current |
CW |
Ith |
80 |
- |
220 |
mA |
Slope Efficiency |
CW |
h |
1.0 |
- |
2.0 |
W/A |
Operating voltage |
If=1.2A |
Iop |
3.7 |
- |
6.0 |
V |
Packing: 445nm blue laser diode
1.100 pieces/box, 10 boxes /carton.
2. Plastic box package , 445nm 1.6w laser diode with 9mm package.
Shipping: 445nm blue laser diode
1.1~3 days after receipt of your payment
Yaya Tech. was founded in March, 2012, which has been registered in Dongguan, China, and Hong Kong. It's an electronic science and technology co., ltd of specializing electronic accessories designning, processing, production and selling. Products are hot selling in Southeast Asia, Europe and US., Central and South America. The strategy of company is focusing on high-grade quality products.
our products mainly have:
1.All kinds of bluetooth speakers blue laser diode
2.earphones
3.power banks
4.cell phone covers
5.USB cables and etc.
6.laser diodes
7.laser modules
What's the payment terms in your factory? blue laser diode
1. We accept T/T, paypal, western union ,and other payment terms
2. 30% advanced payment, 70% balance finished before shipment.
What's the MOQ of your factory? blue laser diode
Normally, our MOQ is 1pc, also welcome to test our products.
What's the leadtime of your order?
For laser diodes ,normally it's 1~3 days after get the confirmed order.
Why we can offer 445nm blue laser diodes? blue laser diode
Our products are imported with original packaging,
we also will test them before send you to make sure the products'quality.
If I have other goods in your area, can I ask my supplier to send you the goods and ship together?
Yes, we can provide the warehouse for free for you, and then arrange shipping company to ship together.
Thanks very much for being with us, and welcome you to more about us YAYA TECH.
