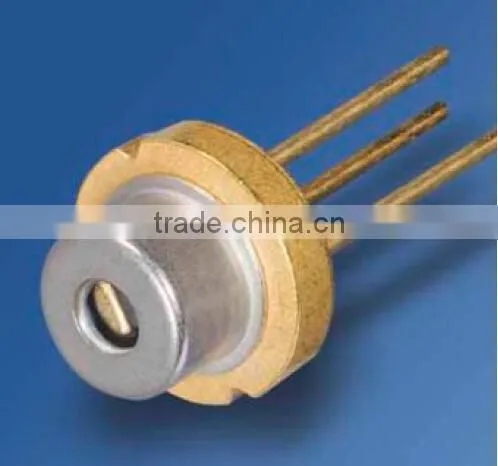

Help CenterCompetitive Price Violet Cheap Sanyo 405nm 20mw Laser Diode
Related Products
-
Salable Blue-violet High 405nm 250mw Laser DiodeNegotiableMOQ: 1 Piece -
Ndg7k75 Green Laser Diode Nichia 520nm 1wUS$ 230 - 299MOQ: 1 Piece
-
Nichia TO5 9mm 450nm 1.6w Blue Laser DiodeNegotiableMOQ: 1 Piece
-
Osram TO18 5.6mm 1.6w 445nm Blue Laser DiodeUS$ 20.5 - 30.5MOQ: 1 Piece
-
On Stock Nichia 250mw 405nm Laser DiodeUS$ 12 - 60MOQ: 1 Piece
Absolute Maximum Ratings (Tc=25℃)
| Parameter | Symbol | Ratings | Unit | |
| Light Output | Po(CW) | 20 | mW | |
| Reverse Voltage (LD) | VR | 2 | V | |
| Operating Temperature | Topr | 0 to +75 | ℃ | |
| Storage Temperature | Tstg | -40 to +85 | ℃ | |

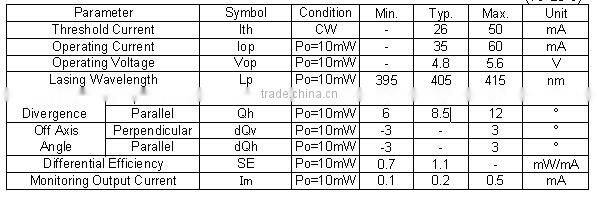

Electrical and Optical Characteristics (Tc=25℃)
2) Initial Values.
3) All the above values are evaluated with Tottori sanyo's measuring apparatus.
4) It makes a typical value a Reference Value.
5) Measurement condition : CW.

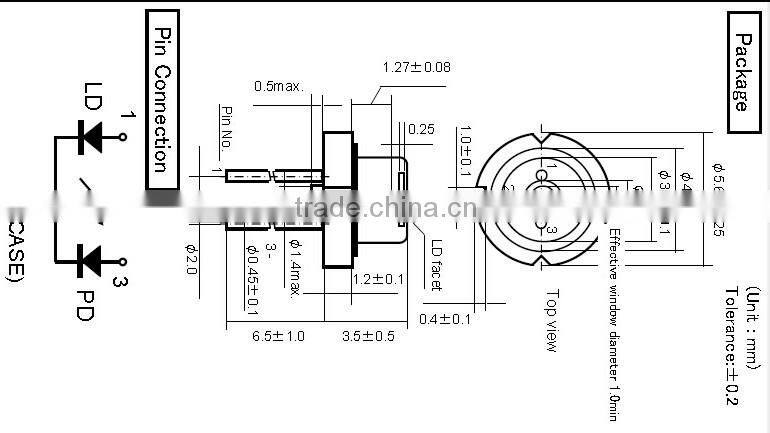

The design of Products:

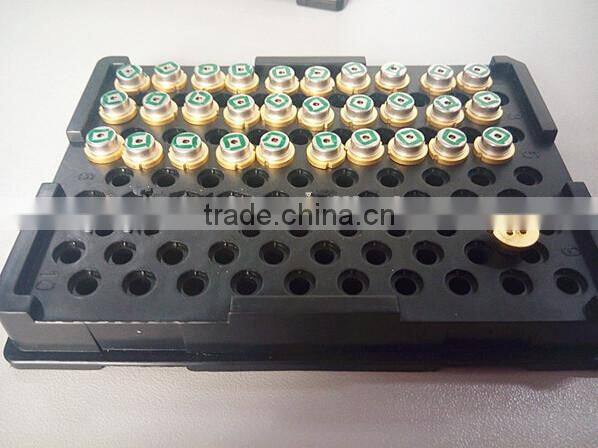

Packing:
1.100pieces/box,10 boxes/carton,18cm*14cm*10cm 405nm 20mw laser diode
2.Packing Type: TO18-5.6mm 405nm 20mw laser diode
Shipping: 405nm 20mw laser diode 405nm 20mw laser diode
1.The items normally will be shipped within 3 work days after the payment is confirmed.
2.. It will be shipped by DHL/FedEx/UPS or other special way, please contact with us and chose the best one.
Yaya Tech. was founded in March, 2012, which has been registered in Dongguan, China, and Hong Kong. It's an electronic science and technology co., ltd of specializing in smart phone accessories designning, processing, production and selling. Products are hot selling in Southeast Asia, Europe and US., Central and South America. The strategy of company is focusing on high-grade quality products.
our products mainly have:
1.laser diodes 405nm 20mw laser diode
2.laser modules 405nm 20mw laser diode
3.power banks
4.cell phone covers 405nm 20mw laser diode
5.USB cables and etc.
6.All kinds of bluetooth speakers
7.earphones 405nm 20mw laser diode 405nm 20mw laser diode
What's the payment terms in your factory?
1. We accept T/T, paypal, western union ,L/C and other payment terms
2. 30% advanced payment, 70% balance finished before shipment.
Can you provide samples to us? 405nm 20mw laser diode
Yes, samples can be provided for free, only you need pay the express charge. And also express charge can be deducted when you place production order.
What's the MOQ of your factory?
Normally, our MOQ is 500pcs per color, but this can be negotiated case by case.
What's the leadtime of your order?
Normally, it's 20-30days after get the confirmed order. 405nm 20mw laser diode
If I have other goods in your area, can I ask my supplier to send you the goods and ship together?
Yes, we can provide the warehouse for free for you, and then arrange shipping company to ship together.
Thanks very much for being with us, and welcome you to more about us YAYA TECH.
