Cheap Blue-violet High Efficiency Nichia 405nm 120mw Laser Diode

Cheap Blue-violet High Efficiency Nichia 405nm 120mw Laser Diode thumbnail-1
Cheap Blue-violet High Efficiency Nichia 405nm 120mw Laser Diode photo-1
US$ 5 - 7 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Japan
Brand Name:
Nichia
Model Number:
NDHV4212
Contact Supplier Request Quote Chat Now
Dongguan General Commerce Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Japan
Brand Name Nichia
Model Number NDHV4212
Type Laser Diode
Package Type Through Hole
Max. Forward Voltage 6V
Max. Reverse Voltage 2v
Max. Forward Current standard
Max. Reverse Current 150mA
Product Description

Absolute Maximum Ratings   (Tc=25℃) 405nm 120mw laser diode

Item

Symbol

Absolute Maximum Ratings

Unit

Optical Output Power

CW

Poc

120

mW

Pulse

Pop

200

mW

LD Reverse Voltage

Vr (LD)

5

V

Storage Temperature

Tstg

-40~85

℃

Operating Case Temperature

Tc

-10~70

℃

Initial Electrical /Optical Characteristics (Tc=25℃)

Parameter

  Symbol

  Condition

  Min.

  Typ.

  Max.

 Unit

Optical Output Power

Po

CW

   -

   -

120

  mW

Peak Wavelength

Lp

Po=120mW

400

405

410

nm

Threshold Current

    Ith

CW

   -

35

50

  mA

Operating Current

    Iop

  Po=120mW

   -

120

150

  mA

Slope Efficiency

CW

η

1.2

1.4

1.9

W/A

Operating Voltage

    Vop

  Po=120mW

   -

4.8

5.5

V

Monitor Current

Im

Po=120mW

0.2

0.4

0.7

  mA

FWHM Beam Divergence

Perpendicular

Qv

  Po=120mW

15

19.5

23

  °

Parallel

Qh

7

9

12

  °

Off Axis Angle

Perpendicular

dQv

  Po=120mW

-2

-

2

  °

Parallel

dQh

-2.5

-

2.5

  °

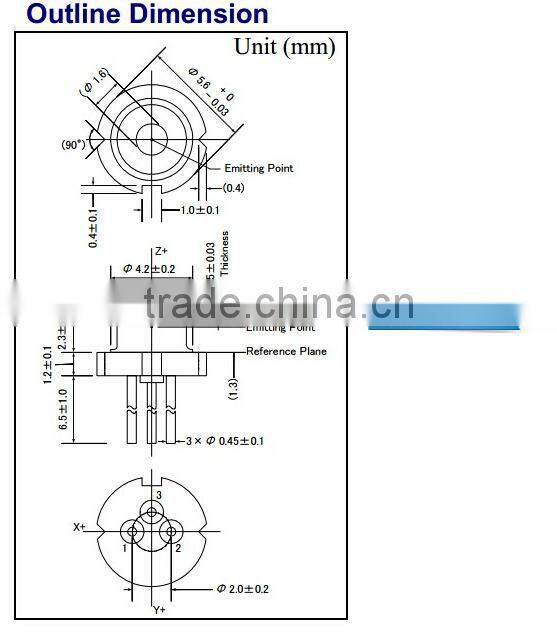

 Product Size for 405nm 120mw laser diodes:

 Cheap blue-violet high efficiency Nichia 405nm 120mw laser diode

We also can provide datasheet for your reference.                                                                                      If you have any question, please contact us without any hesitation.

Packaging & Shipping

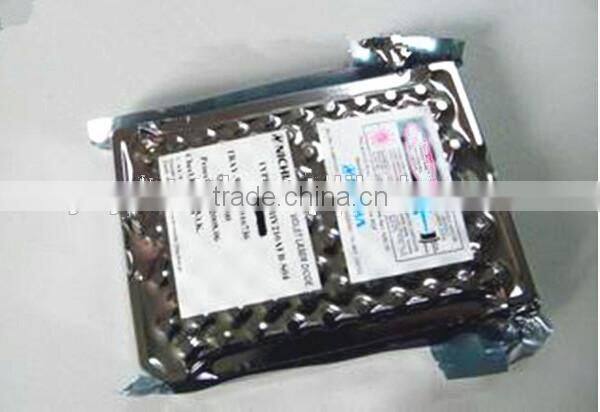

Packing for 405nm 120mw laser diodes:

1.100pieces/box,10 boxes/carton,18cm*14cm*10cm   405nm 40mw laser diode

2.Packing Type: TO18-5.6mm

Cheap blue-violet high efficiency Nichia 405nm 120mw laser diodeCheap blue-violet high efficiency Nichia 405nm 120mw laser diode

Shipping for 405nm 120mw laser diodes:

1.1~3 days after receipt of your payment
2.by DHL,Fedex or UPS or other way as your demand  .

 405nm 120mw laser diode                                              405nm 120mw laser diode      405nm 120mw laser diode

Company Information



Yaya Tech. was founded in March, 2012, which has been registered in Dongguan, China, and Hong Kong. It's an electronic science and technology co., ltd of specializing in smart phone accessories designning, processing, production and selling. Products are hot selling in Southeast Asia, Europe and US., Central and South America. The strategy of company is focusing on high-grade quality products.

our products mainly have:

1.All kinds of bluetooth speakers    405nm 120mw laser diode

2.earphones

3.power banks

4.cell phone covers

5.USB cables and etc.      405nm 120mw laser diode

6.laser diodes

7.laser modules                    405nm 120mw laser diode



405nm 120mw laser diode
FAQ



What's the payment terms in your factory?

1. We accept T/T, paypal, western union ,L/C and other payment terms

2. 30% advanced payment, 70% balance finished before shipment.



Can you provide samples to us?

Yes, samples can be provided for free, only you need pay the express charge. And also express charge can be deducted when you place production order.



What's the MOQ of your factory?

Normally, our MOQ is 500pcs per color, but this can be negotiated case by case.



What's the leadtime of your order?

Normally, laser diodes and laser module is 1~3days after get the confirmed order.



If I have other goods in your area, can I ask my supplier to send you the goods and ship together?

Yes, we can provide the warehouse for free for you, and then arrange shipping company to ship together.

 405nm 120mw laser diode    405nm 120mw laser diode       405nm 120mw laser diode



Thanks very much for being with us, and welcome you to more about us YAYA TECH.
