Specifications
4*2*0.45mmcat5ftp copper coated steel flat ethernet cable1.material:copper coated steel
2.length:305m
3.fluke test standard
4*2*0.45mm cat5 ftp copper coated steel
1.features summary
Category 5 is a basic element of cate line of products designed for high speed networkd applications (eg.GigaEthernet 1000Base-T). 4 pair ftp with different pitch for each pair. Small outside dameter, high flexibility. Available in 305m lengths and packed in carton boxes for easy transportation and laying in troughs. The cable does not feed fire and goes out when the source of fire is removed.
good sales cat5 ftp 4p copper coated steel with best price and high quality
nstruction

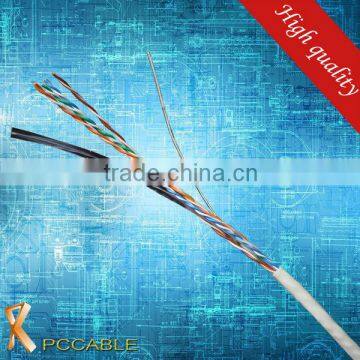

1)Conductor: you can see it in more detail in the above picture
* material: copper coated steel
* Conductor Diamter.:0.45±0.003mm
* Quantity:4 twisted pairs
Blue/white-blue
Green/white- green
Orange/white-orange
Brown/white-brown
Insulation:
*material:high density polyethylene
* insulationDiameter:<=1.0mm
* Average thickness: 0.4325 mm
* Minimum point thickness: 0.43mm
4)sheath:
* material: AL-Mylar100%(min)coverage
* Nominal Diameter:<=5.50mm
* Average thickness: 0.55mm
* Minimum point thickness: 0.45mm
5)Mechanical Properties:
*Conductor insulation material: PE
*Cable jacket material: halogen-free, flame-retardant material
*Application area: dray as well as humid rooms
*Temperature (moved): 0°C to 50°C
*Operating temperature: -20°C to +60°C
*Min. bending radius for one-time bending: 4×O.D.(not less than 15 times of the outer diameter when the outer diameter is not more than 40mm and not less than 20 times of the outer diameter when the diameter larger than 40mm.)
*Min. bending radius during installation: 8×O.D.
We are manufacturer, warmly welcome yourCUSTOM CABLE ASSEMBLY REQUEST
6)Cable assembly specification:
Conductor |
Insulation |
Core Number |
|
Shielded |
|
Jacket |
||||
AWG |
Specification mm |
Material |
Thickness (NOM.mm) |
Material |
Thickness (NOM.mm) |
OD (NOM.mm) |
||||
24 |
1/0.511 |
HD-PE |
0.20 |
4P |
|
AL-Foil+baiding |
|
AL-Mylar100%(min)coverage |
0.55 |
5.5 |
26 |
1/0.404 |
HD-PE |
0.20 |
4P |
|
AL-Foil+baiding |
AL-Mylar100%(min)coverage | 0.60 |
5.0 |
|
| ||||||||||
7). Transmission Properties: ( at 20°C)
TRANSMISSION PARAMETERS:
Insertion Loss(1-100MHz) <=1.967f +0.023f +0.050/f db
NEXT(1-100MHz) >=35.3-15log(f/100) db
PSNEXT(1-100MHz) >=32.3-15log(f/100) db
PSELFEXT(1-100MHz) >=20.8-20log(f) db
RL(1<=F<10MHz) >=20+5log(f) db
RL(10<=F<20MHz) >=25 db
RL(20<=F<100MHz) >=25-7log(f/20) db
Delay(1-100MHz) <=534+36/f db
Delay Skew(1-100MHz) <=45 db
1. Telecommunications
2. Local Area Network (LAN)

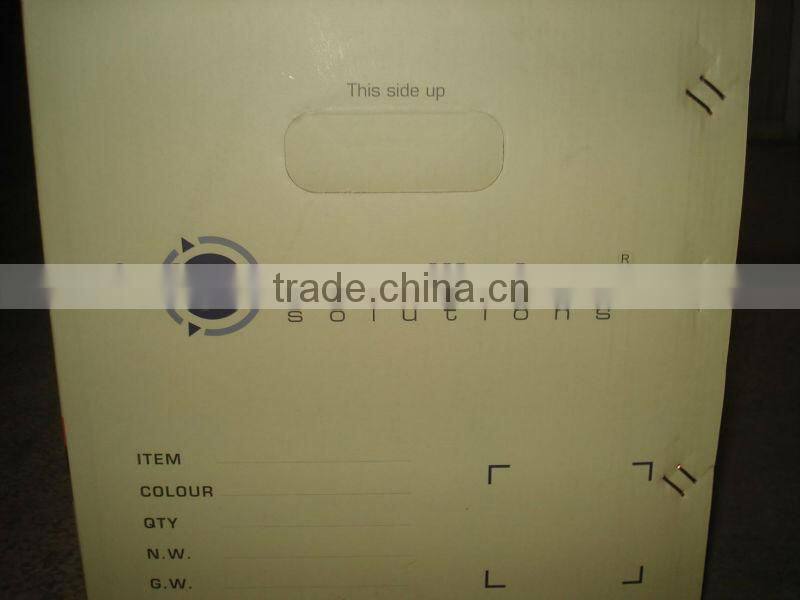

9)packing: 305m/box,2 box/carton
10)testing:
11)certificate
we have won and adopted TLC and so on quality managment system to stricly control the quality of communication cable and its accessories.Oure products are well received by China Telecom, China Netcom, China railcom,CPN, Specail network and Commerical Netcom.
12)export market:
mainland China, africa oceania eastern Europe , southeast Asia,South America and so on.
Do you know our producing concept?
13) producing concept: * We promote the concept of green environmental protection, we produced the jumper wire is low smoke zero halogen and environmental .
* Meanwhile,we follow the principle of human base, quality first, keep improving, competitive price , satisfactory service ,cost reduction, well effiency, on time delivery
