19,22,24 and 26awg Anneal Copper Fiber Optic Cable Duct Category 3

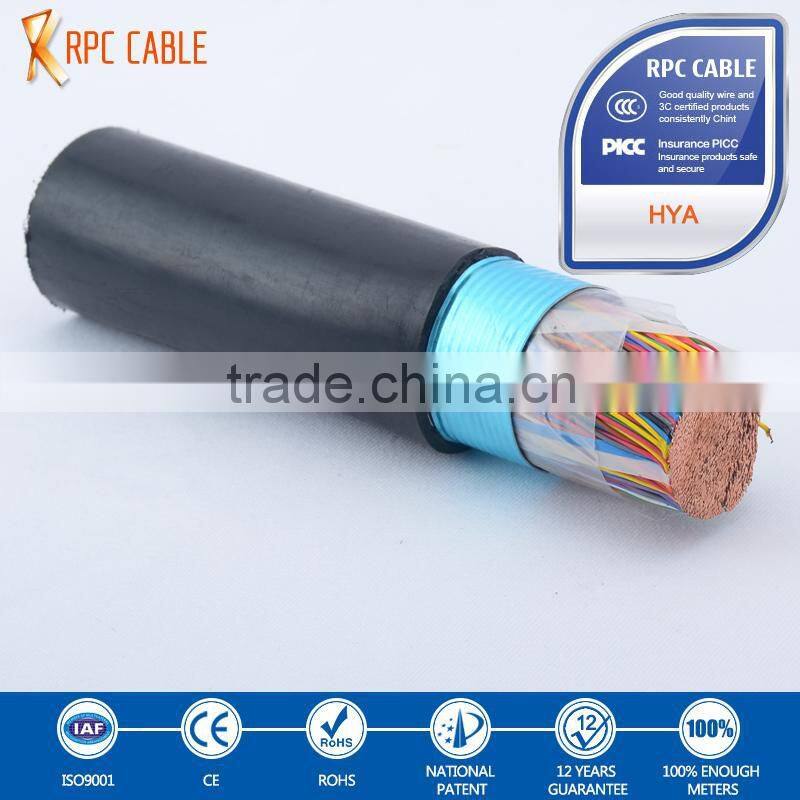

19,22,24 and 26awg Anneal Copper Fiber Optic Cable Duct Category 3 photo-1
US$ 0.2 - 100 MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
RPC
Model Number:
HYAT23
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Guangzhou Foshan
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name RPC
Model Number HYAT23

Specifications

19,22,24 and 26awg anneal copper fiber optic cable duct category 3
1.duct cables
2.5-2400 pairs
3.cat3

19,22,24 and 26awg anneal copper fiber optic cable duct category 3   electric cable duct
Attribute
19,22,24 and 26awg anneal copper fiber optic cable duct category 3
Product information
Name: 19,22,24 and 26awg anneal copper fiber optic cable duct category 3

19,22,24 and 26awg anneal copper fiber optic cable duct category 3

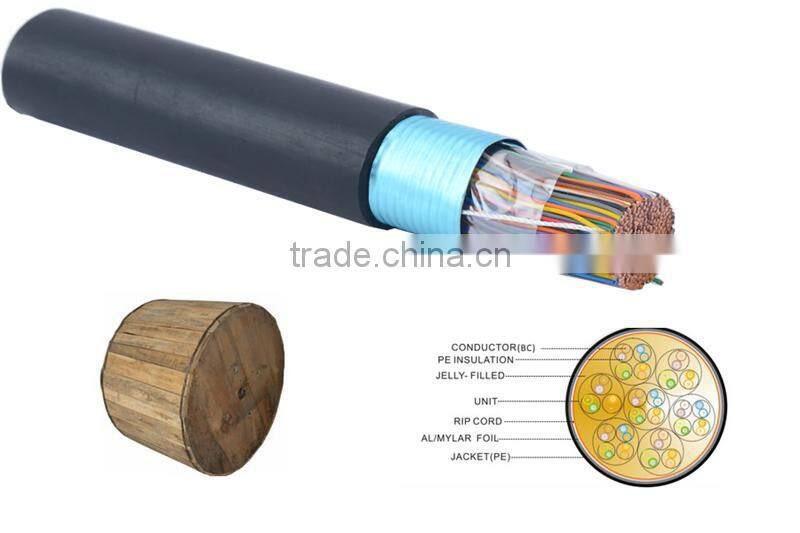

Jelly Filled air core telephone cable
Core Construction:
Conductors:
• Solid, annealed copper; sizes 19, 22, 24 and 26 AWG
InsuIation:
•Option 1 Solid, high density polyethylene, color- coded in accordance with telephone
industry standards
•Option 2 Conductors are dual insulated with an inner layer of foamed,natural polyolefin
covered by an outer layer of solid,colored polyolefin. The conductor insulation is color
coded in accordance with industry standards
Twisted Pairs:
• Insulated conductors are twisted into pairs with varying lay lengths to minimize crosstalk
Core Assembly:
• 25 pairs and less: pairs are assembled together in a single group
• More than 25 pairs: pairs are arranged in groups, each group having a color-coded unit
binder
• 1200 pairs and larger are mirror image color code
Filling Compound:
•The core assembly is filled with an 80 degree petroleum compound, completely filling
the interstices between the pairs and under the core wrap
Core Wrap:
• Non-hygroscopic dielectric tape applied Iongitudinally with an overlap
Aluminum Shield:

• Corrugated 0.008" aluminum tape applied Iongitudinally with an overlap
Jacket:
• Black, linear low density polyethylene
Application(s):
• Intended for aerial installation by attachment to a support strand
Compliances:
• Telcordia (Bellcore) Specification GR-421-CORE
• RoHS Compliant (effective 1/1/10)
Packaging:
• Standard lengths are shipped on returnable steel reels or on non-returnable wood reels
when requested
• Non-standard packaging is also available

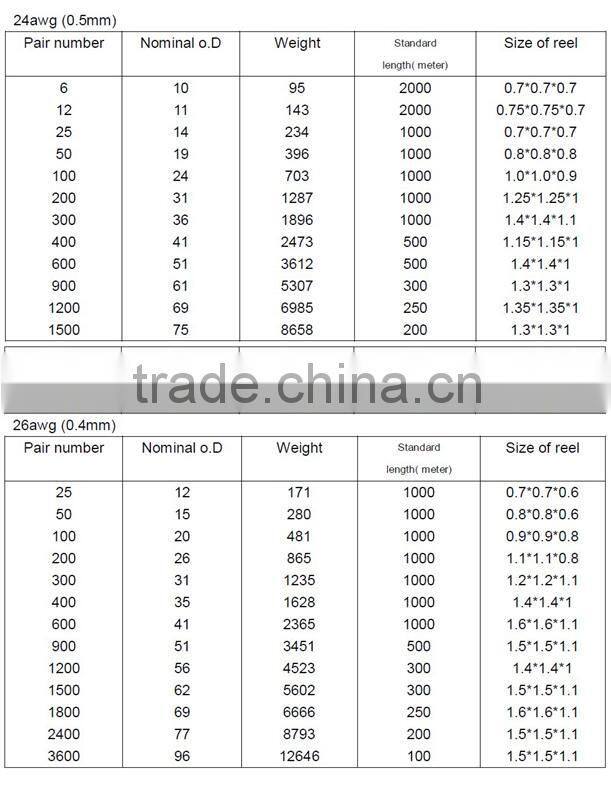

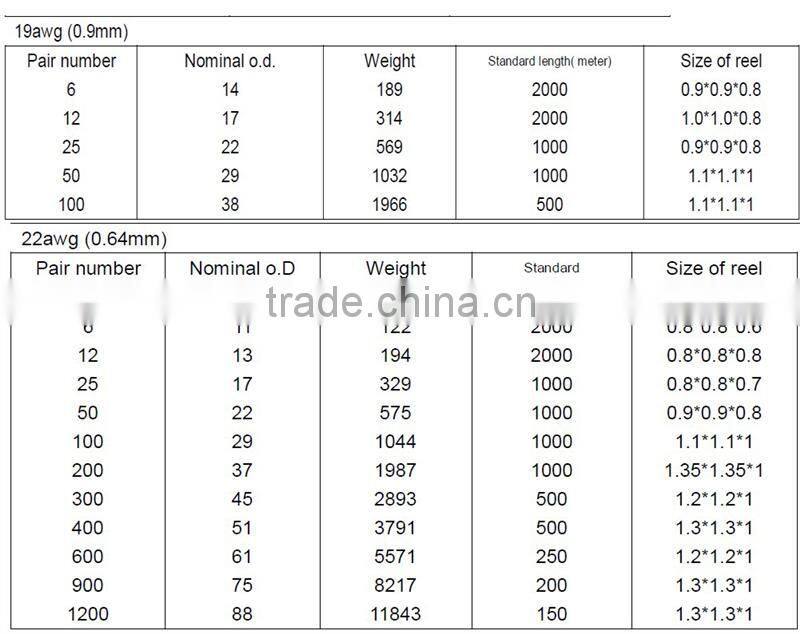

Electrical specifications
Average mutual capacitance at 1000 Mhz

19,22,24 and 26awg anneal copper fiber optic cable duct category 3
19,22,24 and 26awg anneal copper fiber optic cable duct category 3
19,22,24 and 26awg anneal copper fiber optic cable duct category 3






Details Templates
Product Name
19,22,24 and 26awg anneal copper fiber optic cable duct category 3
Keyword
electric cable duct
Product Size
Box size
Packing CTN
Ctn Size(CM):
Package:
G.W./N.W.(KG):
Detail Images
About Us

RPC CABLE MFG.ENTERPRISE

 Founded in 1989, Foshan RPC CABLE MFG,ENTERPRISE. Is one of the specialized manufacturers in producing lan cable(network cable), telephone cable, drop wire, telecommunication cable, optical fiber cable, other cables and wires. More than twenty years of professional manufacturing experience has equipped RPC cable Mfg,Enterprise with advanced production facilities and technology, skilled workers and engineers, reliable quality control system and exoerienced R&D team, we have won and adopted ISO9001.2000 quality managenment system to stricktly control the quality of communication and its accessories. For all the above competitive factors, we can continuously provide the high quality of communication cable, tooling and testing equipments.

Our main products included:

 Lan cable(network cable)

 cat3 series

cat5e series

cat6 series

cat7 series

drop wire and telephone cable

telecommunication cable

optical fiber cable

coaxial cable, electrical cable, alarm cable and speaker cable

Our products are well received by China telecom, China netcom, China Railcom CPN, special network and commercial netcom.Also, we have exploited the marker in many countries and areas such as middle east, africa, south america, southeast asia india, brazil, russia, central asia and eastern europe. All the products which use special package satisfy the customer's tooling and shipping standard.

Factory situation:

19,22,24 and 26awg anneal copper fiber optic cable duct category 3
19,22,24 and 26awg anneal copper fiber optic cable duct category 3
19,22,24 and 26awg anneal copper fiber optic cable duct category 3
19,22,24 and 26awg anneal copper fiber optic cable duct category 3

Contact us

19,22,24 and 26awg anneal copper fiber optic cable duct category 3
factory address: rpc cable mfg.enterprise

 Dakeng indusrial zone, Songgang, Nanhai, Foshan, Guangdong, China

Other notes

19,22,24 and 26awg anneal copper fiber optic cable duct category 3
19,22,24 and 26awg anneal copper fiber optic cable duct category 3


Other descriptions

We also provide the OEM serice
