Specifications
E1 tinned copper lszh/pvc sheath 2/4/8/12/16/32/48/64 pairs120ohm pcm cableecom pcm cable
2.120ohm
3.e1
4.rohs ce cert

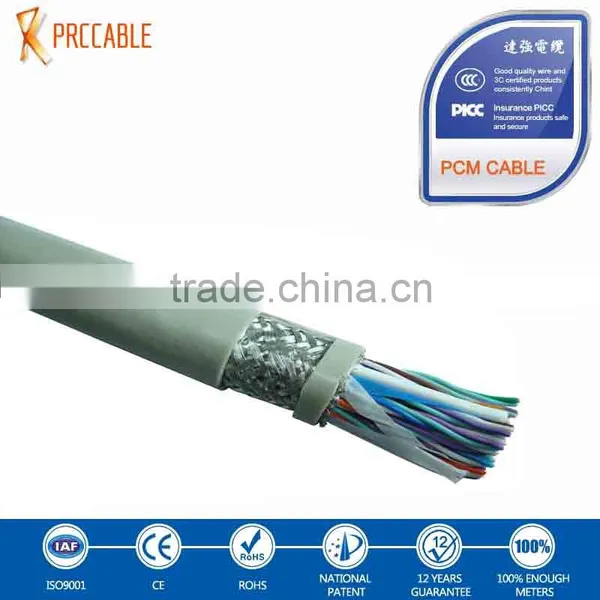

E1 tinned copper lszh/pvc sheath 2/4/8/12/16/32/48/64 pairs120ohm pcm cable
0.50mm or 0.40mm tinned copper, PE insulation, PET foil, Al foil shield, Tinned copper drain wire, PVC, LSZH or LSNH
Parameters |
Minimum Requirement |
1. Conductor |
|
- Material |
tinned copper |
- Diameter (mm) |
0.40 ± .005 |
2 Insulation |
|
- Material |
polyethylene |
2.1 Twisting |
twisted |
2.2 Color |
White-brown |
3. Jacket |
|
- Material |
Polyvinyl chloride |
- Outside diameter (mm) |
2.70 nom |
4. Shielding |
Polyester-aluminized foil with 0.50 mm tin plated drain wire |
5. ELECTRICAL TEST |
|
|
5.1 DC Resistance @ 20° C (W/km) |
< 120
|
|
5.2 Mutual capacitance @ 20° C (nF/km) |
< 100 |
|
5.3 Insulation resistance (GW/km) |
>500 |
5.4 Dielectric strength (Vdc) |
>1500 |
|
5.5 Characteristic Impedance (W) |
|
at 1 MHz |
120 ± 12 |
5.6 Attenuation (dB/km @ 1 MHz) |
< 65
|
