Specifications

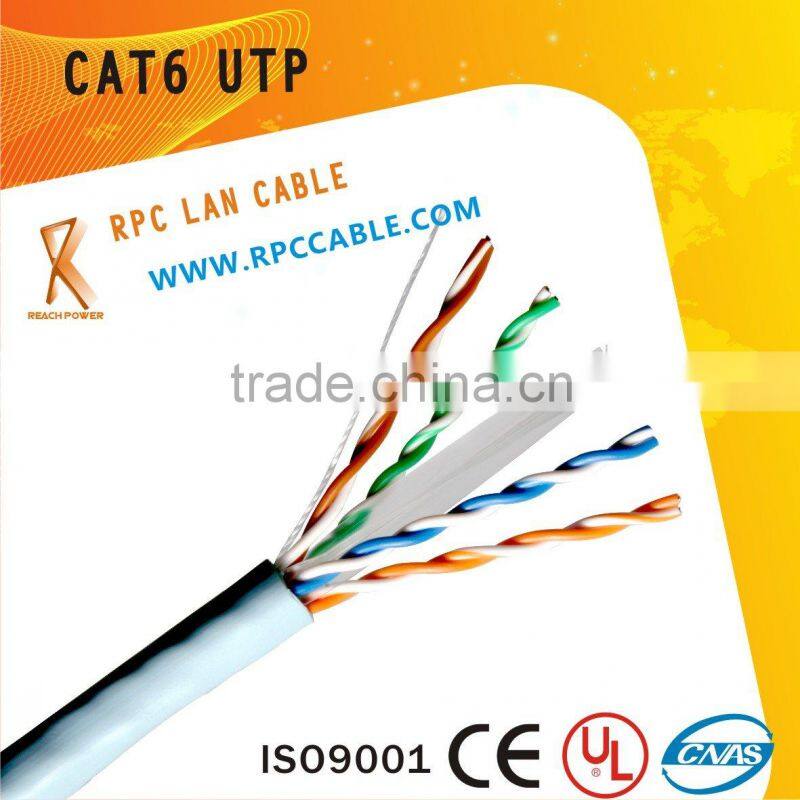

fluke test cat5e lan cable lan cable crimpingConductor type : Solid bare copper
fluke test cat5e lan cable lan cable crimping
1.Reference Standard
ISO/IEC 11801, ANSI/TIA-568-C.2
IEEE 802.3 10GBASE-T, EN 50173

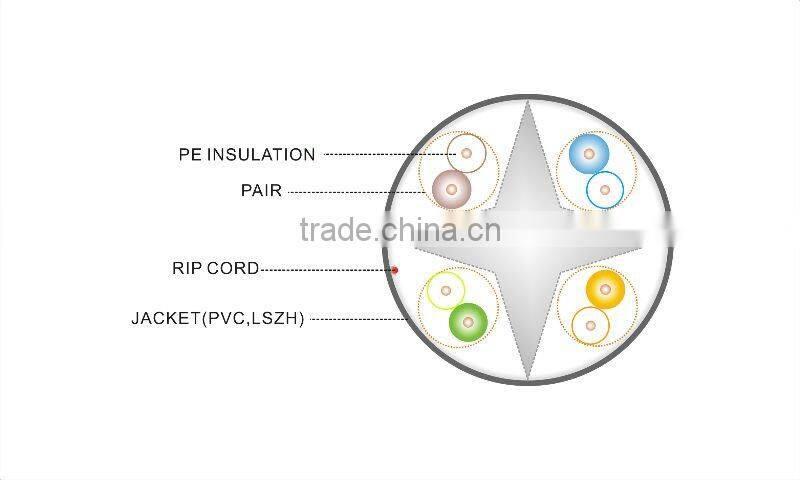

2.Cable Construction
2.1. Conductor type : Solid bare copper , 23AWG/1(Φ0.565~0.568mm))
2.2. Core Insulation : Polyethylene
2.3. Insulation Wall Thickness : 0.215mm (Aeverage)
0.200mm (Min.)
2.4. Core Identification : Pair 1 Blue + White/Blue
Pair 2 Orange + White/Orange
Pair 3 Green + White/Green
Pair 4 Brown + White/Brown
3. Technical Data
3.1 Electrical Data
Test Voltage : 1.0 kVDC at 1 minute
Spark test : 2.2~2.5kV
Characteristics Impedance : 100+/-15% at ≤100MHz
100+/-20% at 100MHz-200MHz
Capacitance, core/core : 56pF/m max
Delay Skew : ≤45ns/100m
Velocity of Propagation : 66% approx , at 100MHz
(All measurement are based on 100 meter at 20°C)
Freq. |
Attenuation |
Return Loss |
NEXT |
PS NEXT |
ACR |
PS ACR |
ELFEXT (ACR-F) |
PS ELFEXT (PS ACR-F) |
Max. Propagation Delay |
MHz |
MHz[dB/] |
Min.[dB] |
Min.[dB] |
Min.[dB] |
Min.[dB] |
Min.[dB] |
Min.[dB] |
Min.[dB] |
[ns] |
1 |
1.9 |
28.1 |
82.1 |
77.7 |
80.3 |
76 |
68.4 |
67.4 |
555 |
4 |
3.9 |
34.9 |
70.2 |
67.6 |
71 |
65.1 |
60.9 |
54.1 |
555 |
8 |
5.5 |
30.7 |
66.9 |
64.7 |
66.9 |
59.6 |
56.5 |
50.5 |
555 |
10 |
6.2 |
30.3 |
63.8 |
60.3 |
67.6 |
60.2 |
58.4 |
52.9 |
555 |
16 |
7.9 |
36.8 |
63.7 |
60.8 |
58.5 |
53.5 |
53.4 |
45.9 |
555 |
20 |
8.9 |
36.8 |
56.4 |
56.8 |
57.1 |
48.7 |
49.3 |
40.7 |
555 |
25 |
10.0 |
29 |
60.2 |
56 |
57.2 |
49.3 |
49.3 |
43.4 |
555 |
31.25 |
11.3 |
27.6 |
57.1 |
54.6 |
52.9 |
44.1 |
49.1 |
37.7 |
555 |
62.5 |
16.3 |
25.4 |
53.5 |
50.0 |
67.2 |
37.1 |
34.1 |
32.9 |
555 |
100 |
20.9 |
27.1 |
49.3 |
45.6 |
40.2 |
26.4 |
29.7 |
28.2 |
555 |
155 |
26.4 |
28.3 |
47.8 |
45.5 |
33.6 |
21 |
22.6 |
22.3 |
555 |
200 |
30.3 |
32.8 |
50.8 |
48.7 |
23.5 |
20.5 |
25.1 |
23.8 |
555 |
250 |
34.2 |
26.3 |
39.9 |
39.4 |
8.4 |
7.4 |
28.2 |
24.3 |
555 |
We can guarantee :
1.Put all of our experiences and technology of communication in our products
2.Concentrate on optical fiber cable and do the professional enterprise forever
