Specifications
10 ft ethernet cable/network cable 4p utp cat5e outdoor/indoor1.4*2*0.55mm solid bare copper
2.ANSI/TIA/EIA-568B.2, IS09
10 ft ethernet cable/network cable 4p utp cat5e outdoor/indoor

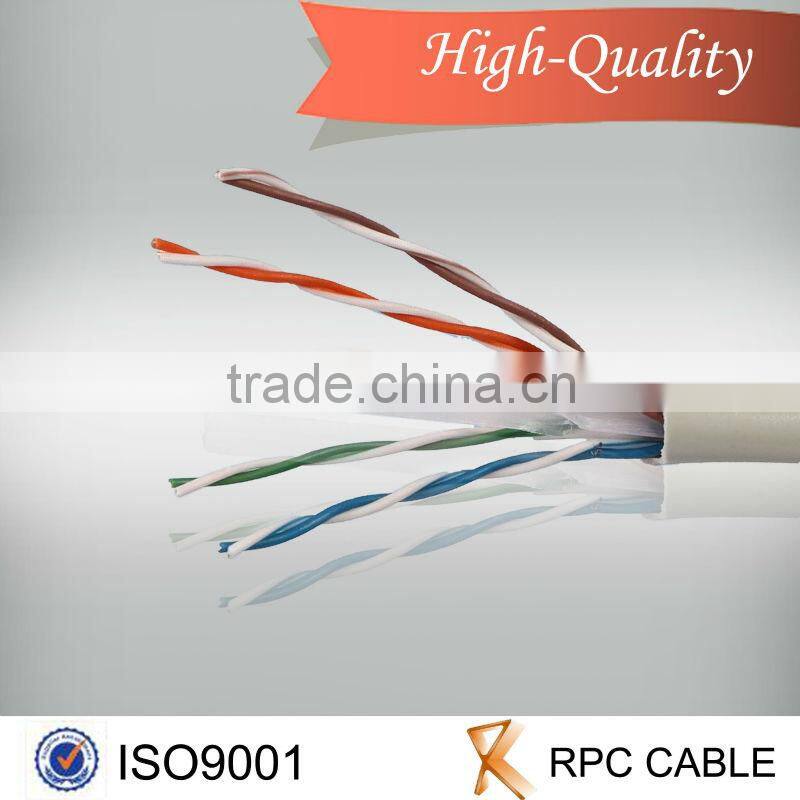

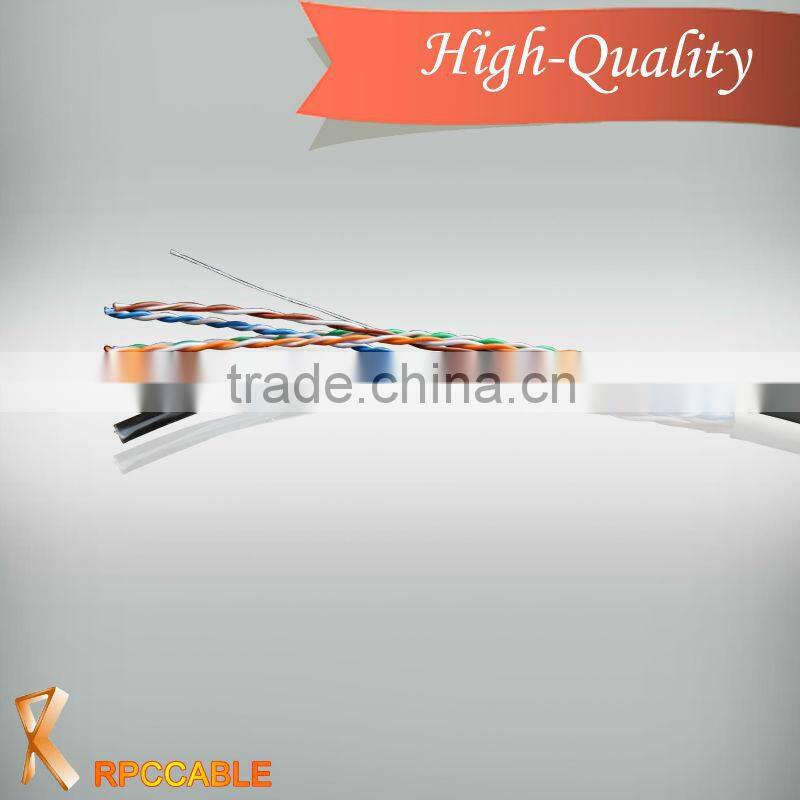

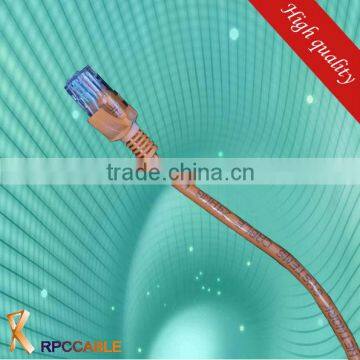

1.product display
-------------------------------------------------------------------------------------------

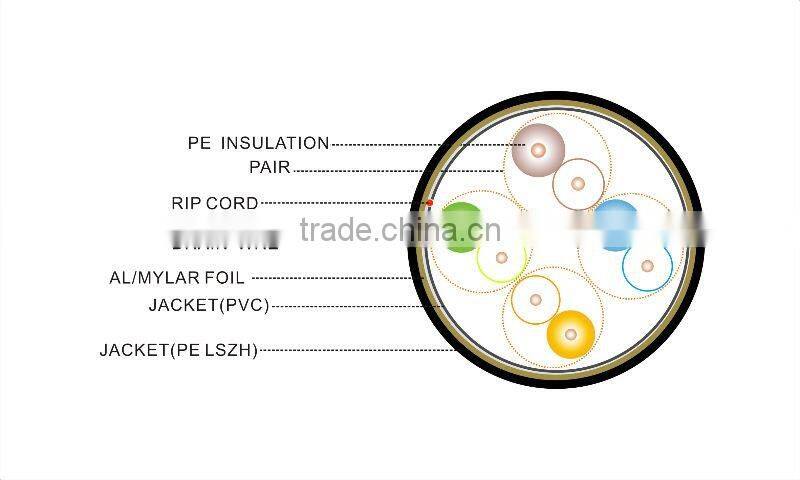

2.Specification
* Conductor: 26AWG or 24AWG Bare copper or copper coated aluminum
* Insulation: HD—PE
* Unrip rope: optional
* Jacket: PVC or LSZH
* Shielding: UTP
* Impedance: 100±15% Ω at 1 ~100MHz
* Reference Standard: ANSI/TIA/EIA- 568B,ISO/IEC11801 ROHS
* Working Temperature: -20°C ~ + 75°C
* pairs:4 pairs
Pair1: Orange/White Orange
Pair2: Blue/ White Blue
Pair3: Green/ White Green
Pair4: Brown/White Brown
-----------------------------------------------------------------------------------------------------
2. related product display
cat6 utp lan cable
-----------------------------------------------------------------------------------------------------------
3.Application
1.Computer Network Cabling Project
2.Broadband Network Communication
--------------------------------------------------------------------------------------------------------------
4. Transmission Properties: ( at 20°C)
Frequency(MHz) |
Impedance(ohm) |
RL(dB) |
Attenuation(dB/100m) |
Next(dB) |
Next Power Sum(dB) |
ELFEXT(dB) |
PSELFEXT(dB) |
1.0 |
100±15 |
20.0 |
2.0 |
62.3~65.3 |
62.3~62.3 |
61.0~63.8 |
61.0~60.8 |
4.0 |
100±15 |
23.0 |
4.1 |
53.0~56.3 |
53.0~53.3 |
49.0~51.8 |
49.0~48.8 |
10.0 |
100±15 |
25.0 |
6.5 |
47.0~50.3 |
47.0~47.3 |
41.0~43.8 |
41.0~40.8 |
16.0 |
100±15 |
25.0 |
8.2 |
44.0~47.2 |
44.0~44.2 |
37.0~39.7 |
37.0~36.7 |
20.0 |
100±15 |
25.0 |
9.2 |
43.0~45.8 |
43.0~42.8 |
35.0~37.8 |
35.0~34.8 |
31.25 |
100±15 |
23.6 |
11.7 |
40.0~42.9 |
40.0~39.9 |
31.0~33.9 |
31.0~30.8 |
62.50 |
100±15 |
21.5 |
17.0 |
35.0~38.4 |
35.0~35.4 |
25.1~27.8 |
25.1~24.9 |
100.0 |
100±15 |
20.1 |
22.0 |
32.0~35.3 |
32.0~32.3 |
21.0~23.8 |
21.0~20.8 |
------------------------------------------------------------------------------------------------------------------

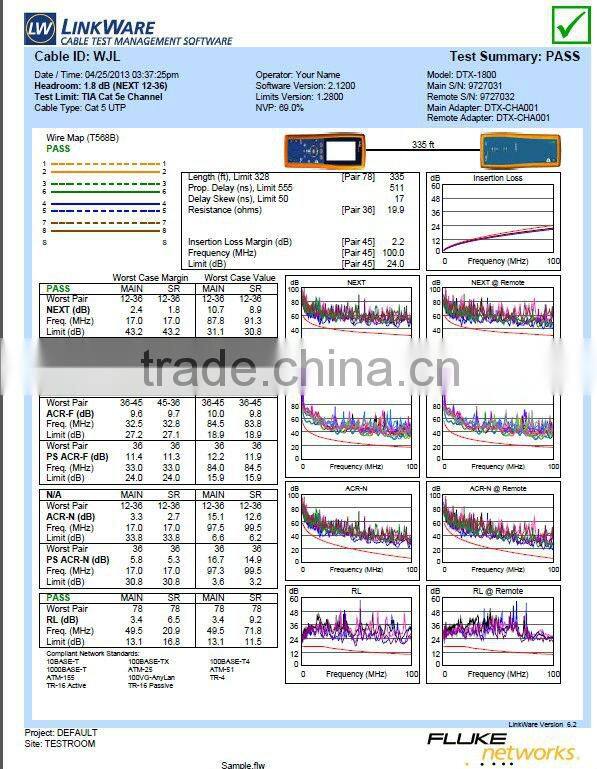

5.test report
----------------------------------------------------------------------------------------------------------------

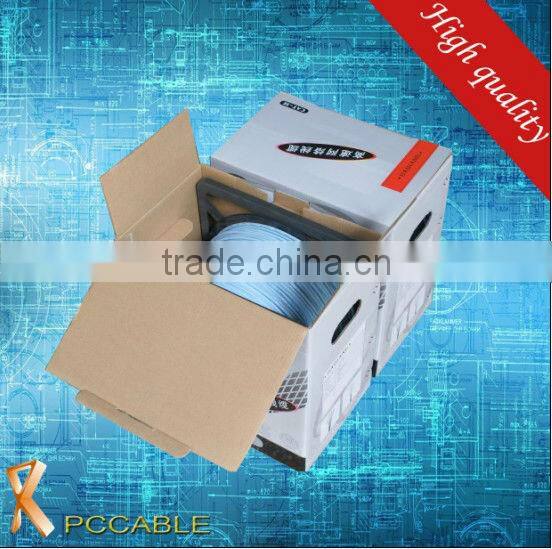

6.packing process:

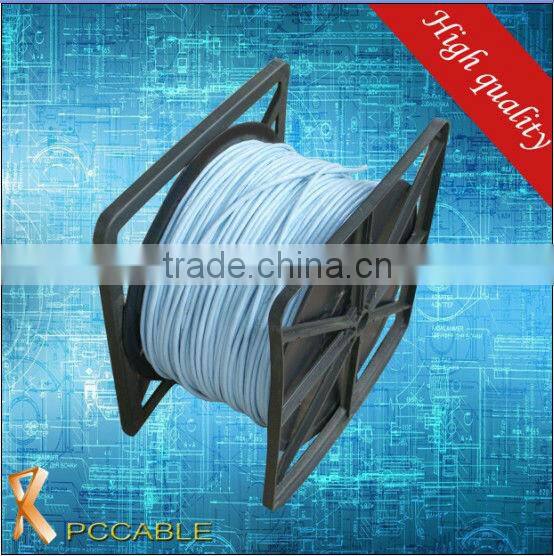

first put lan cable into a plastic roller

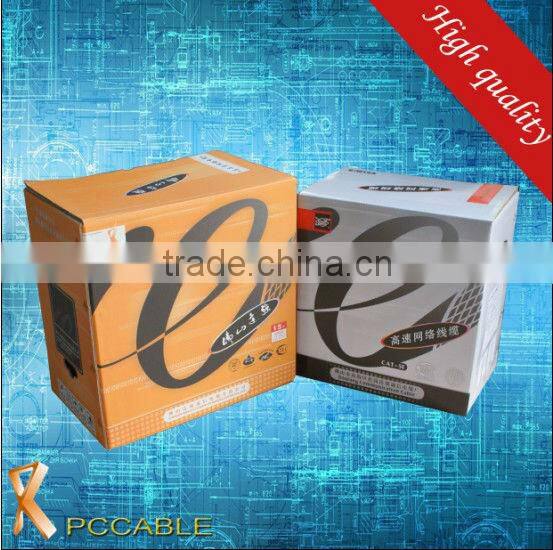

then into a box
↓
finally wrap the box
↓
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
pany view
Do you know our producing concept?
We promote the concept of green environmental protection, we produced the jumper wire which is low smoke zero halogen and environmental .
Meanwhile,we follow the principle of human base,
quality first, keep iproving, competitive price satisfactory service ,cost reduction, well effiency, on time delivery.
