5 Pairs Figure 8 Aerial Cable Pure Copper

5 Pairs Figure 8 Aerial Cable Pure Copper photo-1
US$ 1 - 100 MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
RPC
Model Number:
RPC-HYAC
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name RPC
Model Number RPC-HYAC
Type Cat 3

Specifications

5 pairs figure 8 aerial cable pure copper
1.cat3
2.can be jelly filled
3.iso9001

5 pairs figure 8 aerial cable pure copper

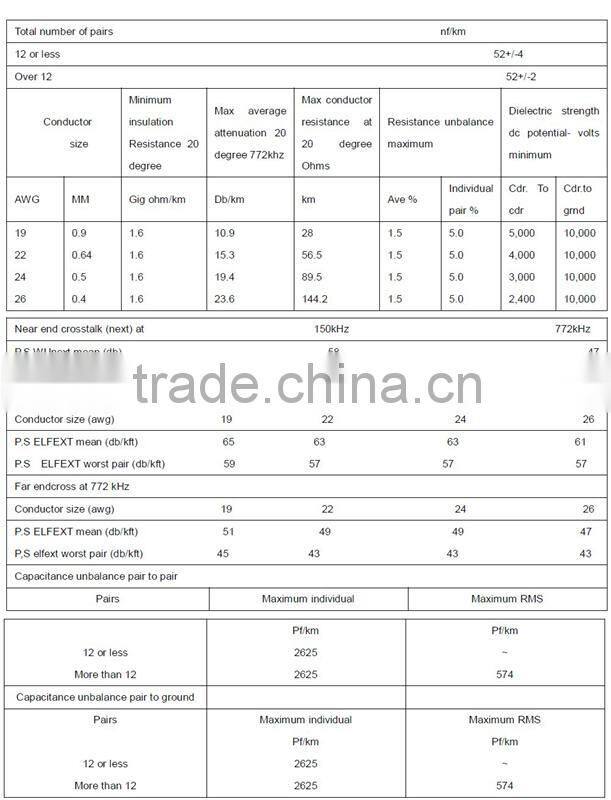

Attribute

Product information
Name: aerial telephone cable

5 pairs figure 8 aerial cable pure copper

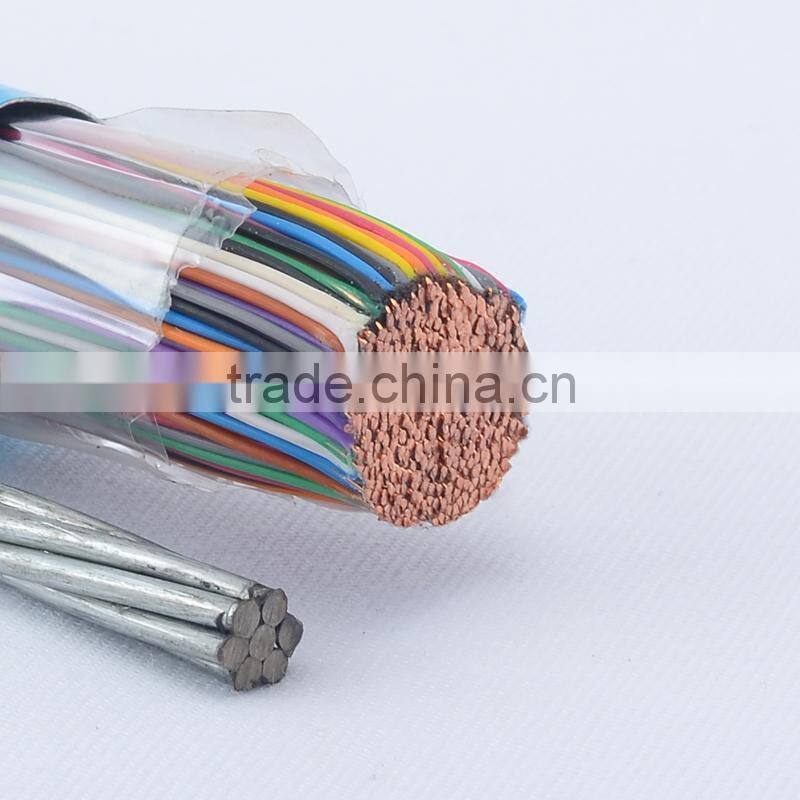

Core Construction:
Conductors:
• Solid, annealed copper; sizes 19, 22
 24 and 26AWG
Insulation:
• Solid, high density polyethylene, color- coded in
accordance with telephone industry standards
Twisted Pairs:
• Insulated conductors are twisted into pairs with
varying lay lengths to minimize crosstalk
Core Assembly:
• 25 pairs and less: pairs are assembled together in
a single group
• More than 25 pairs: pairs are arranged in groups,
each group having a color-coded unit binder
Core Wrap:
• Non-hygroscopic dielectric tape applied
longitudinally with an overlap

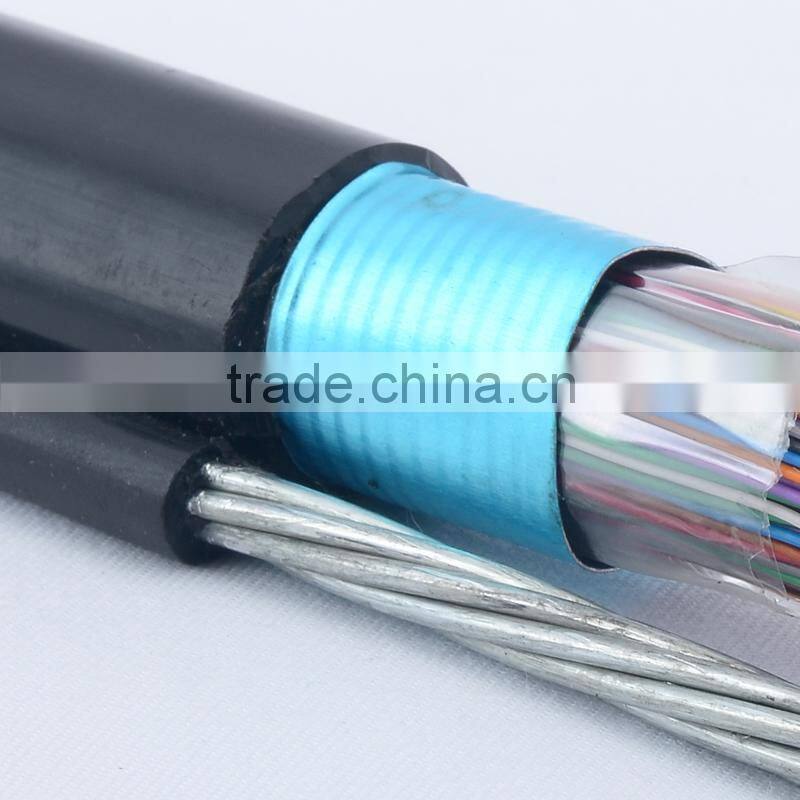

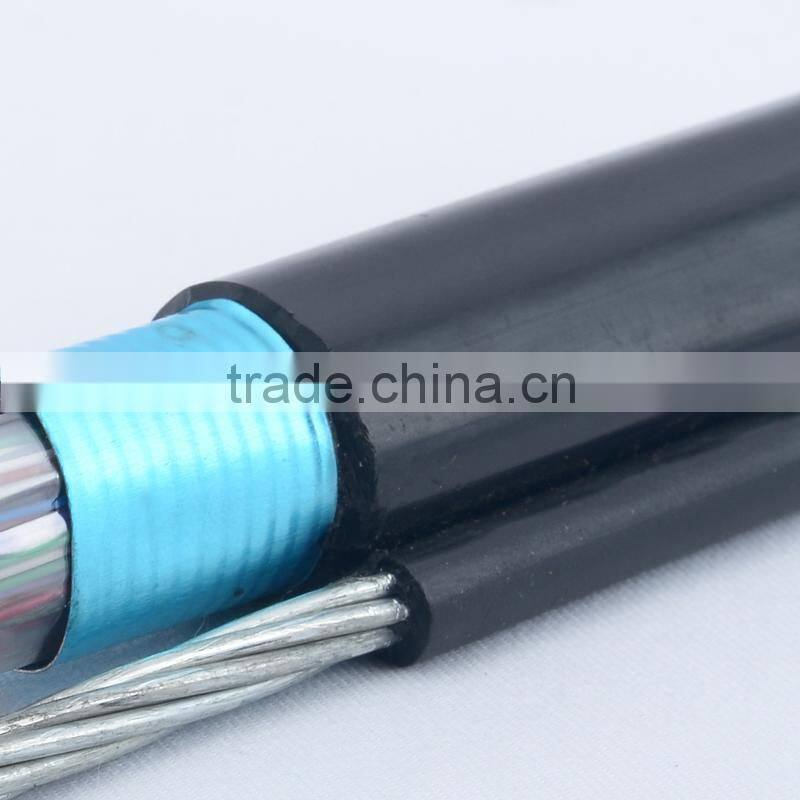

Figure 8 Sheath:
Aluminum Shield:
• Corrugated, copolymer coated, 0.008" aluminum
tape applied longitudinally with an overlap
Support Messenger:
• A 1/4", 7 strand, extra high strength galvanized
steel wire, fully flooded for corrosion protection

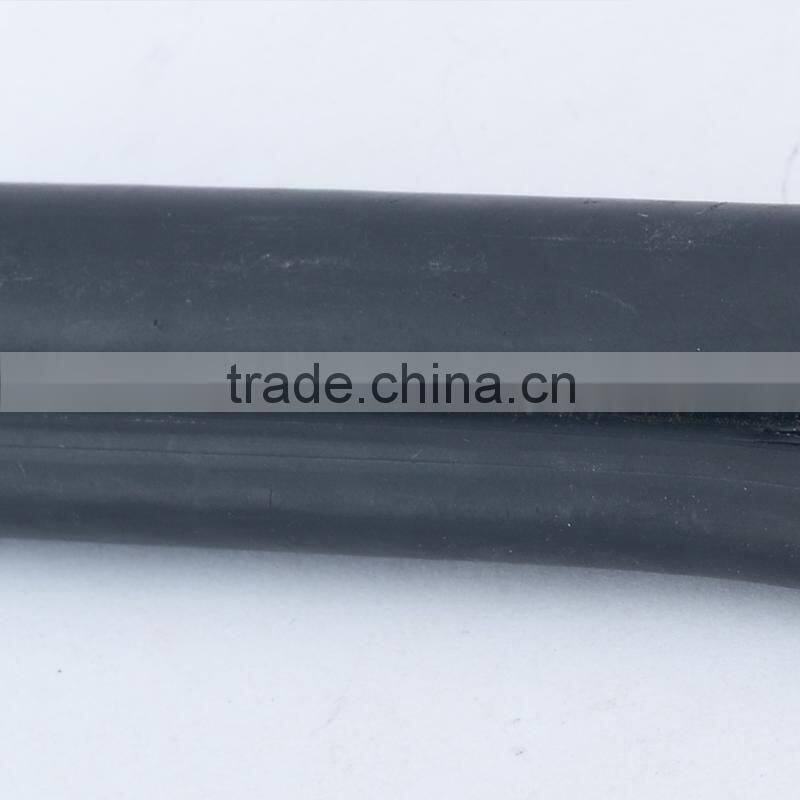

Jacket:
• Black, linear low density polyethylene is jacketed
in an integral extrusion with the shielded core
and support messenger to form a "Figure 8"
configuration

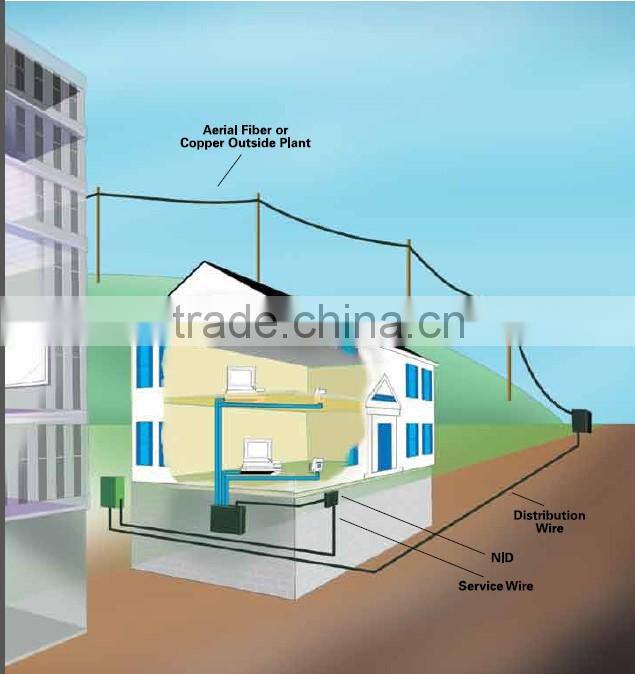

Application(s):
• Intended for aerial installation
Compliances:
• Formerly RDUP (RUS) Specification PE-38
• RoHS Compliant (effective 1/1/10)
• ANSI/ICEA S-85-625-2007
Packaging:
• Standard lengths are shipped on non-returnable
wood reels
• Non-standard packaging is available upon request



5 pairs figure 8 aerial cable pure copper

5 pairs figure 8 aerial cable pure copper

5 pairs figure 8 aerial cable pure copper  5 pairs figure 8 aerial cable pure copper
5 pairs figure 8 aerial cable pure copper
5 pairs figure 8 aerial cable pure copper
5 pairs figure 8 aerial cable pure copper





Details Templates
Product Name
5 pairs figure 8 aerial cable pure copper
Keyword
5 pairs figure 8 aerial cable pure copper
Product Size
Box size
Packing CTN
Ctn Size(CM):
Package:
G.W./N.W.(KG):
Detail Images
About Us

RPC CABLE MFG.ENTERPRISE

 Founded in 1989, Foshan RPC CABLE MFG,ENTERPRISE. Is one of the specialized manufacturers in producing lan cable(network cable), telephone cable, drop wire, telecommunication cable, optical fiber cable, other cables and wires. More than twenty years of professional manufacturing experience has equipped RPC cable Mfg,Enterprise with advanced production facilities and technology, skilled workers and engineers, reliable quality control system and exoerienced R&D team, we have won and adopted ISO9001.2000 quality managenment system to stricktly control the quality of communication and its accessories. For all the above competitive factors, we can continuously provide the high quality of communication cable, tooling and testing equipments.

Our main products included:

 Lan cable(network cable)

 cat3 series

cat5e series

cat6 series

cat7 series

drop wire and telephone cable

telecommunication cable

optical fiber cable

coaxial cable, electrical cable, alarm cable and speaker cable

Our products are well received by China telecom, China netcom, China Railcom CPN, special network and commercial netcom.Also, we have exploited the marker in many countries and areas such as middle east, africa, south america, southeast asia india, brazil, russia, central asia and eastern europe. All the products which use special package satisfy the customer's tooling and shipping standard.

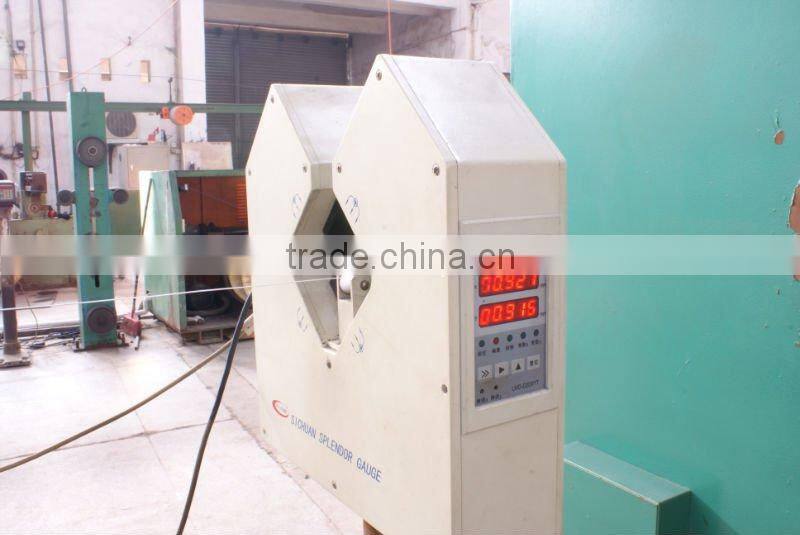

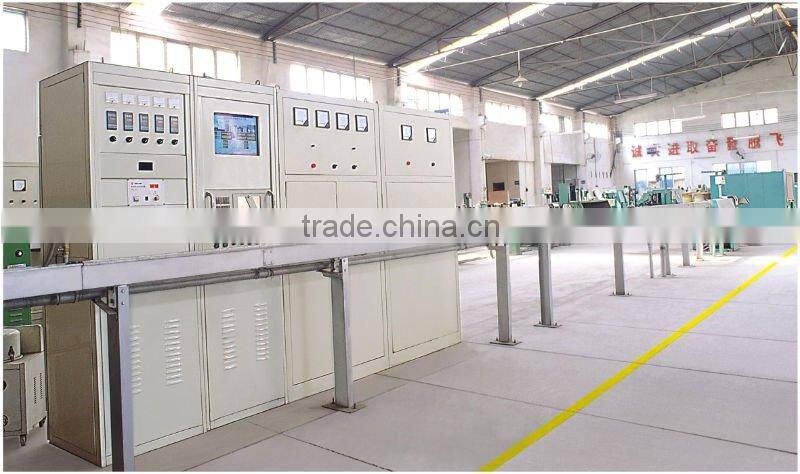

Factory situation:

5 pairs figure 8 aerial cable pure copper
5 pairs figure 8 aerial cable pure copper
5 pairs figure 8 aerial cable pure copper
5 pairs figure 8 aerial cable pure copper

Contact us

5 pairs figure 8 aerial cable pure copper
factory address: rpc cable mfg.enterprise

 Dakeng indusrial zone, Songgang, Nanhai, Foshan, Guangdong, China

Other notes

5 pairs figure 8 aerial cable pure copper
5 pairs figure 8 aerial cable pure copper


Other descriptions

We also provide the OEM serice
