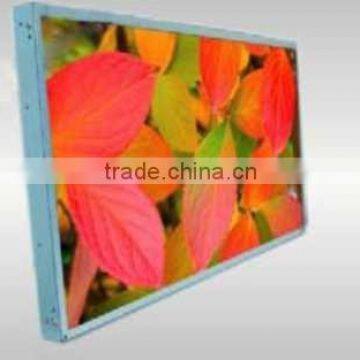

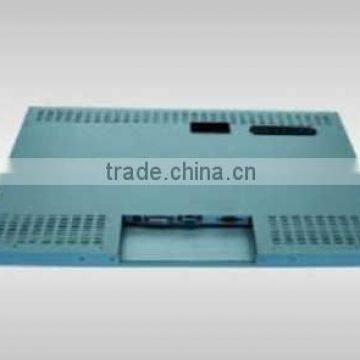

21.5" without touch thin open frame LED monitor
We will work closely with you to create the right solution bespoke to your business needs, giving you a return on investment that is both quick and substantial.
WiViTouch appreciates the support and favor from all the friends!
NO. |
21.5 |
Type |
WVT-LOM-21.5 |
Close |
Metal frame, open style |
Show type |
21.5 "Active matrix TFT-LED |
Show size in effect |
476.64mm× 268.11mm |
Monitor display size |
Wide : 498mm High :295mm Thick :28mm |
Best resolution ratio |
1920×1080 |
Stand by color |
16.7M |
Bright (Typ.) |
1000(type).LED |
Echo time (Typ.) |
16ms |
|
Angle of view (Typ. at CR> 10) |
170(H) |
160(V) | |
Contrast Ratio (Typ.) |
1000:1 |
Video frequency imports |
15pin D-sub (VGA), DVI-D |
|
Synchronization Range Horizontal / Vertical |
31.5~37.5KHz/60~75Hz |
|
Recommended Resolution |
1920×1080, 60Hz/ 80Hz |
Pixel Pitch (mm) |
250×250 |
|
Weight (Behind net weight / wrapping) |
6Kg/8.7Kg / |
Power Consumption |
DC2.0 / 12V |
Certification |
CE,ROHS |
Warranty |
1 year free warranty for LED Openframe monitor |
Main featurers:
LCD panel with wide temperature can work 24hours.
Long lasting product cycle-enclosure controlled by Wivitouch specifications
Future generation panels p
hased-in without external changes
High quality panel with high brightness,high contrast ratio and broad viewing angle
Application:
Gaming Machine
Kiosk
Industry Control
Medical Treatment
POS.ATM.Media player.Etc
This monitor also includes support for both DVI and VGA input connectors. Drop this into your kiosk and never worry about external changes to the chasis for your production. Open frame monitor being used in embedded displays are becoming a key component for a variety of applications. Control panels / touch controls for industrial test equipment, seismic monitoring systems, ATM bank machines, and vending machines are a just a few examples. LCD monitors have also found its way into digital signage solutions such as freestanding self service kiosks.
LCD TouchMonitor,Openframe Touch Monitor,Industry Touch Monitor,Gaming machine Touch Monitor,Kiosk, Interactive touch foil(Touch Thru Glass,Touch Film), LCD touch Panel PC/Computer/ bezel Monitor, Touch Tablet PC, Touch advertisement monitor, Touch advertising display, Touch Payment Kiosk, Touch solutions, Optical touch screen,Surface Capacitive Touch Screen Panel, Projection Capacitive touch screen panel and digital signage across all industries and have grown 30% year on year. Now our products have been widely used in games, finance, communication, electricity, transportation, hospitals, estates, travel and government lines, stations, 4S shops, museums, exhibitions, libraries, hotels and entrainment KTV.
Welcome your inquiry !
Contact me onlie:
Skype ID "WiViTouch04"
