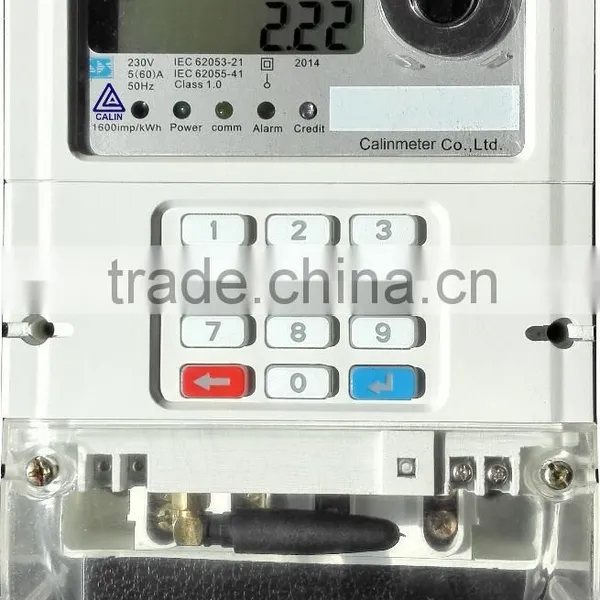

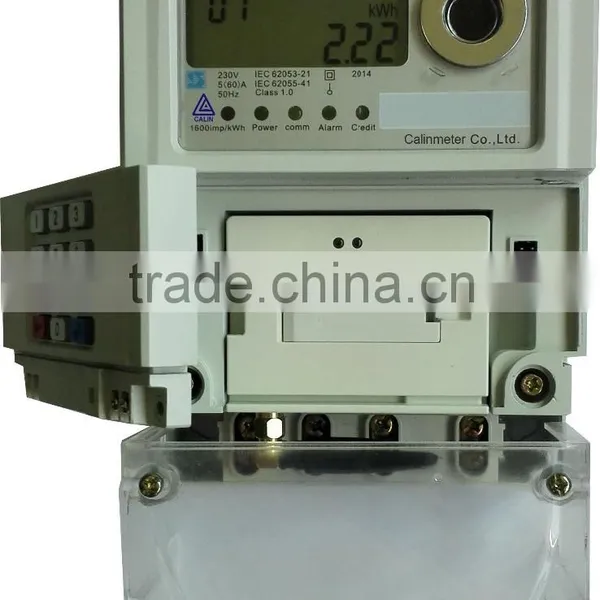

Help CenterSingle Phase Keypad Prepaid Energy Meter With Plug in GPRS Module
Related Products
-
Three Phase STS Keypad Prepaid Energy Meter With GPRS ModuleUS$ 10 - 20MOQ: 10 Pieces -
Single Phase STS Keypad Smart Prepaid Single Phase Energy MeterUS$ 18.00 - 30.00MOQ: 100 Pieces
-
Single Phase STS Keypad Smart Prepaid Single Phase Prepaid Electric Meter Quality ChoiceUS$ 18.00 - 30.00MOQ: 100 Pieces
-
Single Phase STS Keypad Smart Single Phase Prepaid Electricity MeterUS$ 16.50 - 18.50MOQ: 100 Pieces
-
DIN Rail STS Keypad Prepaid Energy Meter With CIU/UIUUS$ 10 - 20MOQ: 10 Pieces
Main Features
- Energy Measurement
Total and time-sharing forward active & reactive energy measurement
Total and time-sharing reverse active & reactive energy measurement
Save last one to sixteen months energy data
- 20 digit Standard Transfer Specification(STS)
Credit data transfered from a point of sale (POS) or vending system is made into a numeric token in a 20 digit number using the Standard Transfer Specification (STS) encryption techniques, which comply with IEC62055 protocol
- Load control function
When the residual energy is 0 or the allowable overdraft that both sides agreed, this meter will send out power-off signal to have load switch cut off power. The power will be recovered automatically after inputting new purchased energy amount.
- Programmable low credit warning
The meter can be programmed for setting user credit warning threshold, When the meter’s residual energy is equal to credit warning threshold, the meter will start the audio & video warning function in a way of warning light flashing
- Tamper detection
With event recording function (including cover-opening event, tamper event and power failure event)
- Optical port interface
Support IEC62056-21 protocol, 1200bps for communication
- RS-485 serial interface
Support IEC62056(DLMS/COSEM) protocol, 2400bps for communication
- LCD display
Number of digits value field Up to 8, Digit size 4x10mm
- Communication modules
GPRS module:EGSM900/DCS1800 dual-band, support GSM/GPRS phase2/2+ protocol
PLC module: according to Technology Standards of SSC163X ,center frequency 270K, FSK modulate technolgy
