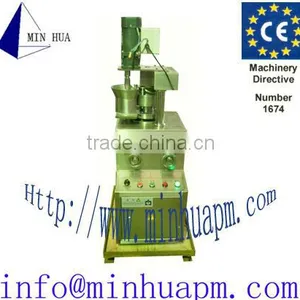

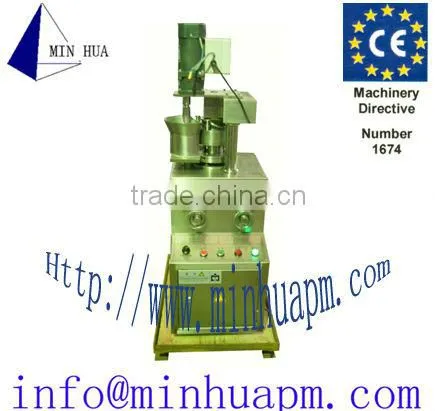

Rotary Tablet Press Zp5-9A

Rotary Tablet Press Zp5-9A thumbnail-1
Rotary Tablet Press Zp5-9A photo-1
US$ 3,680 - 4,080 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
MINHUA
Contact Supplier Request Quote Chat Now
Minhua Pharmaceutical Machinery Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shanghai, China
Brand Name MINHUA
Model Number ZP-5C
Type Rotary Tablet Press
Production Capacity 9600 pcs per hour
Max. Pressure(KN) 40KN
Max. Tablet Thickness(mm) 6mm
Max. Tablet Diameter(mm) 12mm
Voltage 220V
Power(W) 1500
Weight 330
Dimension(L*W*H) 600x960x1150
Certification ISO
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.rotary tablet press
2.40KN
3.force feeder optional

Meeting the GMP standard,ZP-5,7,9 type tablet presses are ideally-designed to press granular raw materials into round ,non round tablets for laboratory use for laboratory use for research and development or small-scale production in pharmaceutical, chemical and food industry ,The working part is enclosed by transparent windows so that press condition can be observed clearly and the windows can be opened .Cleaning and maintenance is easier .The machines feature small volume, low weight, low noises and tidy appearance .The alarming system and vacuum cleaner are attached .The speed adjustment of the driver is controlled by the frequency conversion device.

Dies

5sets

7sets

9sets

Max. Pressure

40kn

Max. Dia of Tablet

12mm(non-round shape:14mm)

Max. depth of Fill

15mm

Max. Thickness of Tablet

6mm

Turret Speed

0-32r/min

Production Capacity

9600 pc/h

13000 pc/h

15000 pc/h

Motor

1.5kw, 1440r/min, 220,380/50v/hz

Overall Size

600×960×1150mm

Net Weight

260kg

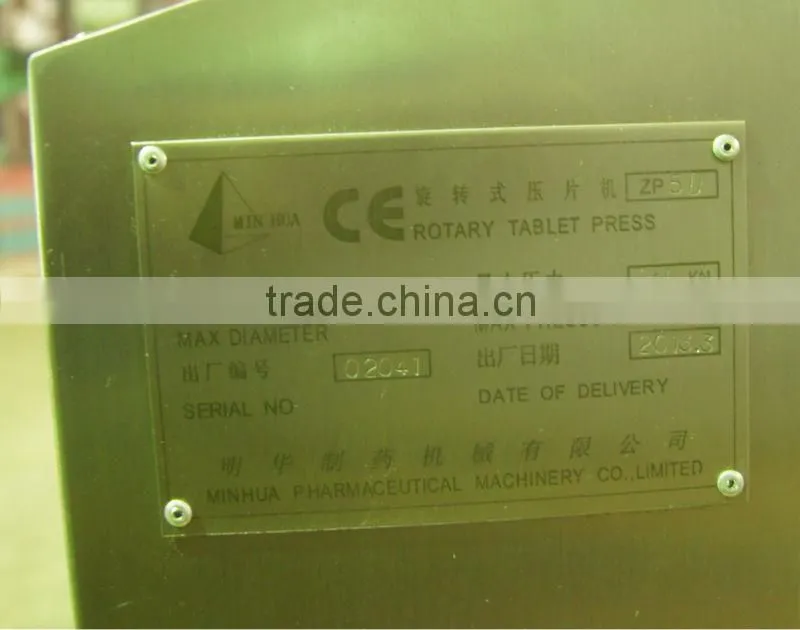

 rotary tablet press zp5-9A
