Home > Manufacturing & Processing Machinery > Pharmaceutical Equipment & Machinery > Pharmaceutical Tablet Equipment > Rotary Tablet Press Zp-11E

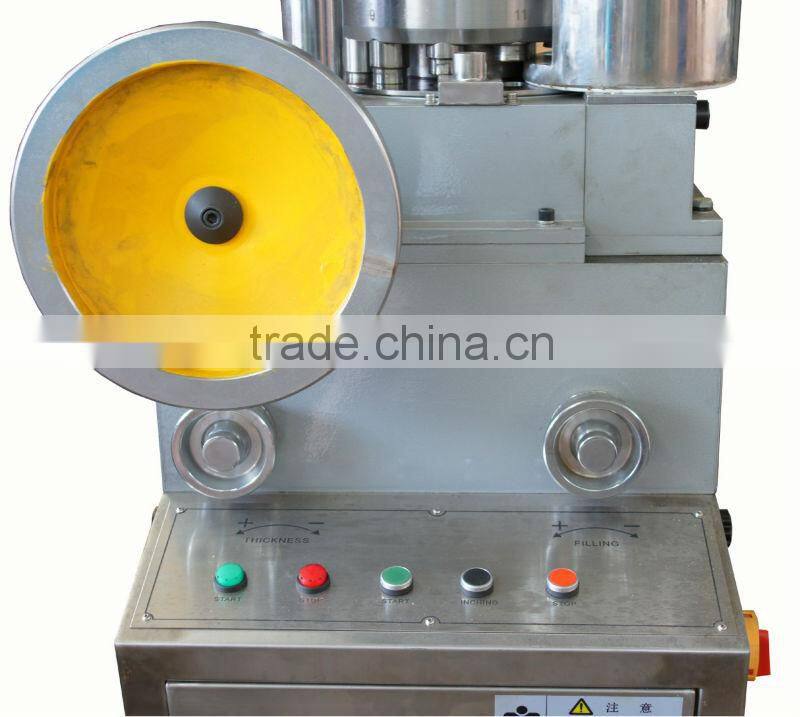

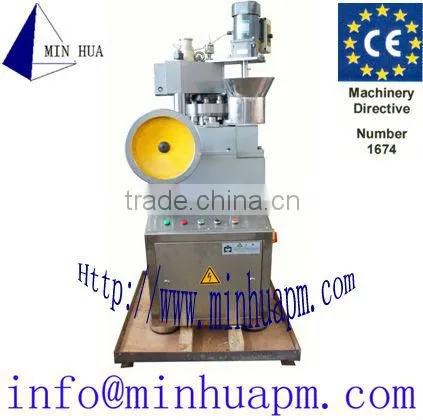

Rotary Tablet Press Zp-11E

Name: Rotary Tablet Press Zp-11E
Brand: MINHUA
SKU: 104707945
Availability: InStock

US$ 1 - 2 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

MINHUA

Contact Supplier Request Quote Chat Now

Minhua Pharmaceutical Machinery Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Shanghai, China

Brand Name MINHUA

Model Number ZP-11E

Type Rotary Tablet Press

Production Capacity 9900 pcs per hour

Max. Pressure(KN) 100KN

Max. Tablet Thickness(mm) 10-12mm

Max. Tablet Diameter(mm) 40mm

Voltage 380

Power(W) 4000

Weight 700

Dimension(L*W*H) 550x570x1500

Certification ISO

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.rotary tablet press ZP-11E
2.100KN
3.max diameter 32mm

Specification:

This machine is suitable for pressing round tablets form various kinds of granular materials, but also different geometrical shape tablet ,specially for small-scale batch production .During operation ,the speed of turret rotation .the depth of filling material and the thickness of the tablets can be adjusted .The pre-pressure unit and over-load protection unit is included in the system ,The mechanical buffer unit will prevent punches and apparatus from overload damage ,A power suction unit is attached to take the residual power during operation ,so that the blockage by the residual power can be eliminated and collected power material can be reused.

Technical Parameter:

Punching dies	11 sets(substandard)
max working pressure	80-100 KN
max. Dia. of tablet	32 mm
max. thickness of tablet	10-13mm
Max .depth of filling	28 mm
Max .working dia	430-530mm
dia. of center form	52 mm
dia. of punching die	40 mm
Dia. of upper/lower punching bar	40 mm
speed of rotary table	6-15 r/min
produce capacity	9900 pc/h
Motor Power	4 kw
Machine height	1600 mm
Net weight	700 kg
Voltage	380V/50HZ
