full-automatic electric stacker forklift
Full electric stacker
Full electric stacker price with CE OEM for Wesco,Vestil,Genkinger

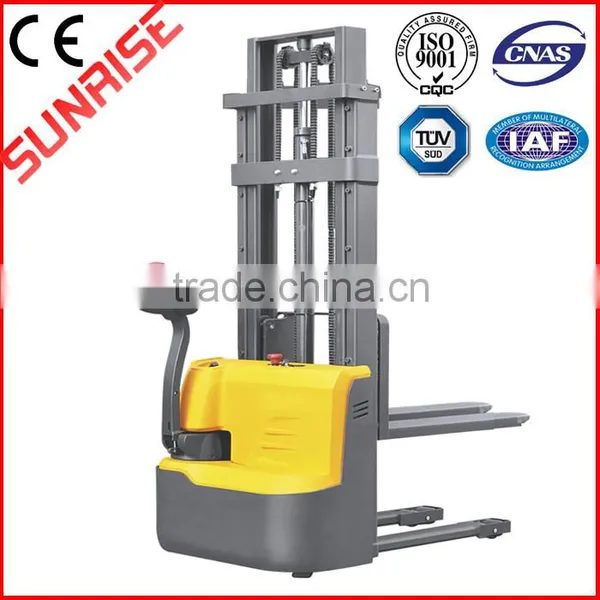

Walkie Stacker
- Ride-on platform desgin.
- Quiet,safety,durable,reliable and efficient
- A green product, no pollution.
- High tensile German mast steel to provide long term safety and durability.
- Capacity is 2000KG
- Lifting Height:3500MM
- Easy to operate

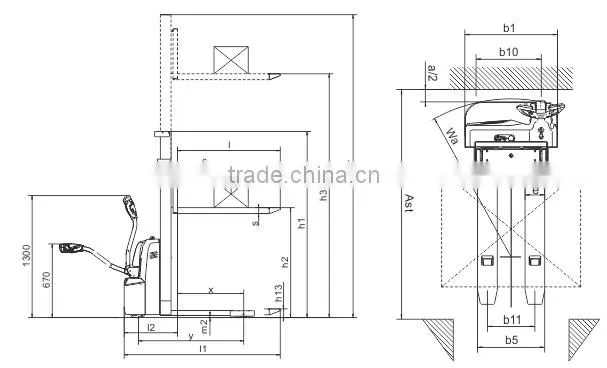

Data for electric stacker
| Model | CDDR10 | CDDR12 | |
| Drive type | electric | ||
| Operation type | pedestrian | ||
| Load capacity | Q(kg) | 1000 | 1200 |
| Load centre distance | c(mm) | 600 | |
| Load distance, centre of drive axle to fork | x(mm) | 697 | |
| Fork height,lowered | h13(mm) | 90 | |
| Wheelbase | y(mm) | 1335 | |
| Tyres | polyurethane | ||
| Height, mast lowered | h1(mm) | 2087/1837/2087/2237 | |
| Max.lift height | h3(mm) | 1600/2500/3000/3300 | |
| Height,mast extended | h4(mm) | 2087/3087/3587/3887 | |
| Overall length | l1(mm) | 1965 | |
| Overall width | b1(mm) | 820 | |
| Fork dimensions | s/e/l(mm) | 60/170/1070(1150) | |
| Width overall forks | b5(mm) | 580/695 | |
| Aisle width for pallets 1000×1200 crossways | Ast(mm) | 2400 | |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 2370 | |
| Turning radius | Wa(mm) | 1525 | |
| Tracel speed,laden/unladen | Km/h | 5.3/5.6 | |
| Service brake | Electromagnetic | ||
| Battery voltage,nominal capacity K5 | V/Ah | 24/120 | |
| Service weight(with battery) | kg | 700/730/750 | 710/740/760 |

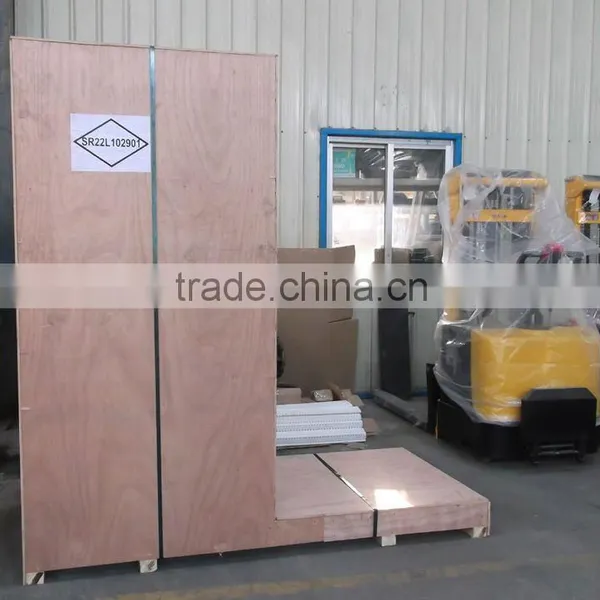

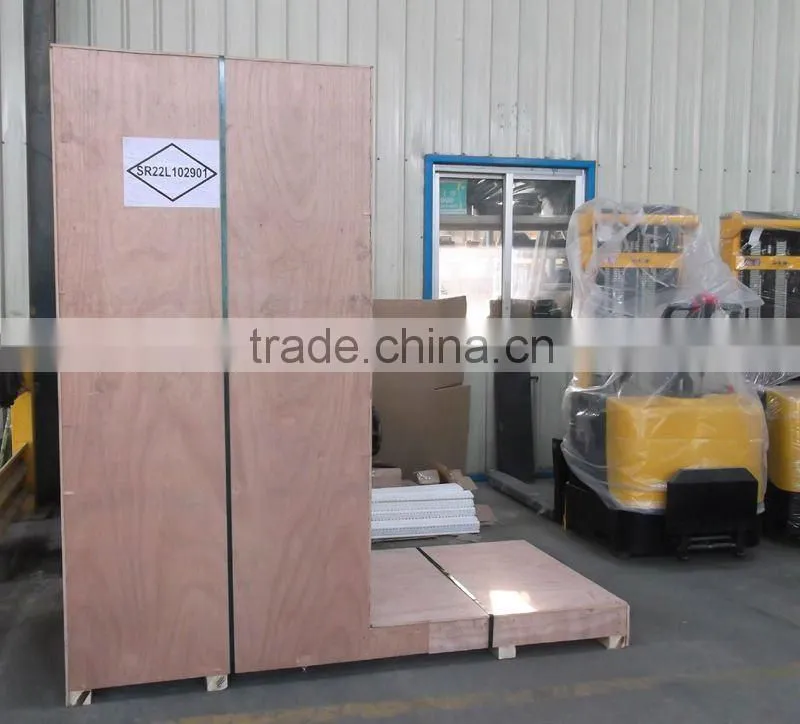

Packaging
Plywood case packing
Shipping
The transportation depends on client's choice, usually by sea, by train etc.You also can choose other shipping method and inform us before shipment.
electric stacker
electric stacker
• If you want to buy forklifts, you should Tell us your detail requirements(Load Capacity? Lifting height etc.) by email or on TradeManager or Whatsapp, We will send you our offer in 24 hours.
•We provide excellent after service.
•We accept custom non-standard products
•You can add logo on our products! We provide OEM/ODM service. In addition, we promise your design would protect by law, we won't tell anyone else about this. It's your own copyright.
•If you have any repair questions, we can also help because we are professional.
1.How can customer buy parts once the electric stacker break down?
The electric stacker adopts most of the common parts of hardware.You can buy the parts in your local hardware market or pallet truck parts shop.
2.How can customer repair the electric stacker.
One of the great advantage of semi electric stacker is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.What is the battery life span?
The lift span of the battery can be 4 years if you maintain it as per our maintanance manual.
4.How long is the quality guarantee of the electric forklift?
One year quality guarantee including battery.Wheels are not included.If it breask down within one year,we can send the parts free of charge to you.
5.How can we charge the battery?
It is equipped with a battery charger.You can connect the battery to the charger and connect the charger to the AC power.
electric stacker
...
