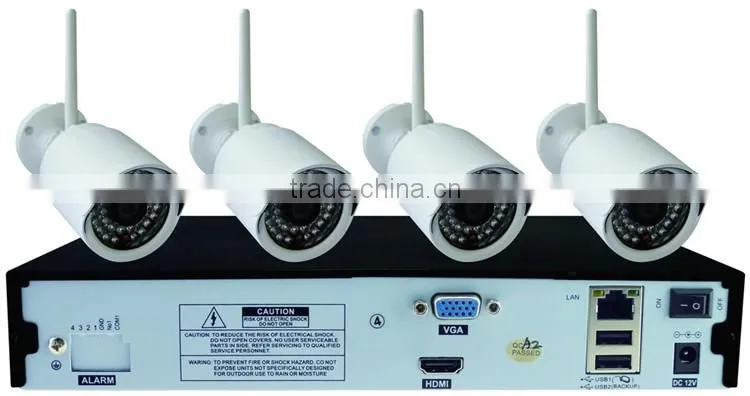

Help CenterFactory Direct 4 CH Wireless P2p ip CCTV Camera System With 1.0 Megapixel Wireless Bullet Camera Kit
Related Products
-
9" Touch Screen 720P Wifi Digital LCD Baby Monitor H.265 ip Camera Wireless SystemUS$ 1 - 165MOQ: 1 Set -
Wireless Security Cameras 4ch 720P Wifi Security ip Camera NVR KitUS$ 1 - 239MOQ: 1 Set
-
2016 Surveillance Wifi Video Recorder Onvif 1080p Full HD P2P CCTV NVRUS$ 1 - 65MOQ: 1 Piece
-
2016 New Products 8ch P2P 1080P Hdmi NVRUS$ 1 - 45MOQ: 1 Piece
-
Full HD 1080P CCTV NVR 24ch H.264 HDMI Network Video Recorder P2P Standalone NVRUS$ 1 - 65MOQ: 1 Piece

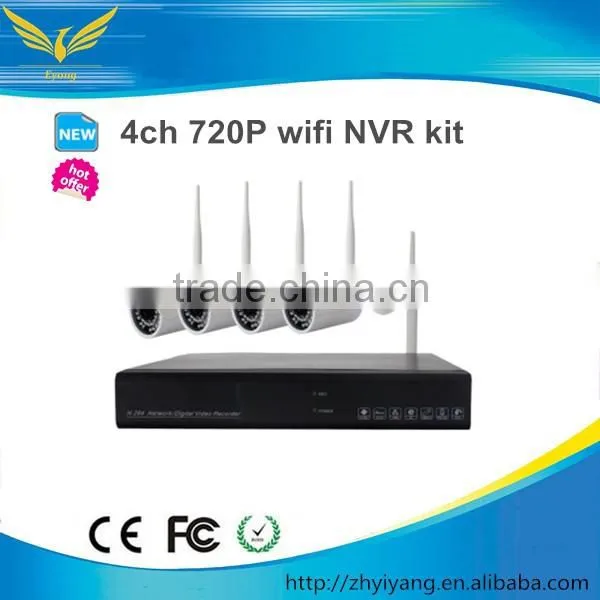

low cost 4CH 720P P2P wifi ip camera with security camera system
security camera system:
| WIFI NVR | ||
| System | Main Processor | High performance embedded microprocessor |
| Operating system | Embedded LINUX OS | |
| Video spec. | Video compression format | H.264 |
| Display Image Resolution | 720P@30fps;960P@30fps;1080P@30fps | |
| Playback Image Resolution | 720P@30fps;960P@30fps;1080P@30fps | |
| Motion Detection | can setup 192(16×12)pcs motion detection area each channeland multi-level sensitivity(1-6 levels adjustable) |
|
| Privacy Masking | depends on ipc | |
| Audio spec. | Audio compression format | adpcm |
| two-way audio | 1ch | |
| Recording | Recording Mode | Manual Recording, Motion Detection Recording, Time Recording, Alarm Recording, |
| Recording storage | HDD,Network | |
| Frame rate | 30 fps NTSC;25fps PAL | |
| Recording Playback | Max suport 4ch 720P | |
| Backup Mode | Support HDD,USB Flash Disk store & backup | |
| Video | Network Video Input | 4ch |
| Video output | 1ch VGA and 1ch HDMI | |
| Audio | Audio Input | N/A |
| Audio Output | N/A | |
| Alarm | Alarm Input | N/A |
| Alarm Output | N/A | |
| Other | Network | 1x10/100Mbps,RJ45 port |
| RS485 | Standard 485 port,support half-duplex, green terminal port | |
| USB | 2 USB 2.0 ports | |
| HDD | support 1 3TB SATA HDD inside | |
| Power | DC +12V /4A | |
| power consumption | 16W-18W(not include HDD and PoE) | |
| Operation temperature | 0℃-+55℃ | |
| Operation humidity | 10%-90% | |
| Demension | 252*213*42mm(0.8u hight) | |
| Weight | 1.5--1.8KG(not include HDD) | |
| IP CAMERA | ||
| Device Type | 720P OV9712d CMOS sensor | |
| Lens Size | 1/4 | |
| Day and Night | Yes | |
| Min.Scene Illumination | 0.5lux(IR ON) | |
| Infrared sensitivity | Support | |
| IR Filter | IR-CUT | |
| IR-led lamp | 36pcs | |
| IR distance | 30M | |
| Electronic shutter | 1/5-1/15,000 /S | |
| Lens | 3.6MM | |
| Focus | Fixed | |
| Aperture | Fixed Aperture F1.2 | |
| Compression | H.264 Main Profile | |
| Picture Resolution | 1280*720@25ps | |
| Steam flow | Support dual stream | |
| Bit Rate | 128-8192kbps | |
| Bit Rate Type | CBR/VBR | |
| S/N Ratio | >50DB | |
| Image enhancement | Auto White Balance,Backlight compensation,Brightness,Contrast,Saturation adjusted | |
| Subtitles input | Support channel name, date/time | |
| Flip Config | Up/down, Left/right | |
| Audio | Support the microphone input andAudio output, support two-way voice intercom equipment | |
| equipment | An external audio equipment | |
| Audio input/ output | one channel audio input, one channel audio output | |
| Audio Compression | G.711/G.726 | |
| Alarm input/output | No | |
| Alarm way | Motion Detection:Configure motion detection area,detecting sensitivity is adjustable | |
| Alarm processing | The control center to monitor,Go to PTZ preset pos,Send E-mail, Log record,SD card storage etc. | |
| Protocal | HTTP,TCP/IP,UDP,SMTP,DDNS,DNS,SNTP,DHCP,FTP,RTP,RTSP,UPNP,ONVIF,28181 | |
| Ethernet | Ethernet (10/100 Base-T),RJ-45 connector | |
| Safety | IP address filtering,User level password protection,The user access log | |
| Wifi major chipset | MTK7601 | |
| Wifi protocol | 802.11b/n/g | |
| Frequency Range | 2.4~2.4835GHz | |
| Encryption | WEP, WPA/WPA2 | |
| WEB Browser | Microsoft Internet Explorer 6.0 and above,google,firefox etc. | |
| Mobile Phone | Support iPhone,Android,Bit rate:32K – 512K adjustable,Frame rate:6–12 fps | |
| Software Management | CMS and the devices Compatible with ONVIF | |
| Software intelligence function | Motion detection,Miss object detection, Moving object tracking, counting, Retrograde motion detection, etc. | |
| Event action | Files are stored to the back end equipment,Send E-mail,Zoom in alarm, | |
| Remote Access | DDNS,Software,P2P | |
| Accessories | Power adapter, CD, Screw bag | |
| Power Comsumption | DC 12V ,Module power consumption is less than 2 W | |
| Temperature | -20°~60°C | |
| Humidity | -10~85% | |
| Certification | CE ,FCC | |
Application:
Sample Availability & Policy :
could you let us know your quantity? price can be negotiated based on Your quantity.
and sample is evaluated before bulk order production.
Guarantees/Warranties/Terms and Conditions :
We guarantee each shipment before shipping, it will be strictly inspected by our own inspector or customer's appointed inspector. According to different products or different composed parts, we provided one to two years quality guarantee after shipment.
After Sales Service :
During valid quality guarantee period, we provide spare parts or technical support to fix or upgrade the software. If the problem can't be resolved by you, please return the defective to our Hong Kong provided address and we fix it for you.
QC/Technical Support :
Our quality control and technical department is mainly composed by 10 to 19 professional workers. It includes three parts such as raw material, production is going on and final products.
Add:Rm. 1212, Bldg. 2, Henghe Center, No. 313, Renmin East Road, Xiangzhou Dist. ,Zhuhai City,Guangdong,China.
Q1: Whether there is ir-cut on the lamp pannel
Part of our products has welded ir-cut, and we can also weld ir-cut upon customers' request.
Q2: Can you produce the product according to our sample?
Yes, we can, as long as you send us a sample and tell us the specific requirements and the quantity reaches a certain number. We will make the same product as
possible as we can and send them for your checking. Customization design is also available upon your request.
Q3: The power control board is separated from the lamp pannel or not?
Generally speaking, for the high-power ir lamp, the power control board is separated from the lamp pannel in case of burnout and affecting the lifespan of the
components; for the low-power ir lamp, the power control board is on the lamp pannel.
Q4: The lamp focus is variable or not?
Part of our products can be made into variable focus.
Q5: What kind of package?
Use Transparent sealing bag,40 pieces for one small package(conventional led);
Two pieces for one package with the black shell glass(array led).
We have different size of boxes to package 500pcs - 2000pcs
Weave bage package for goods safety!
Q6: What kind of service we offer?
We can offer Super quality cctv ir board and best service, 2 years warranty;
Free OEM for your logo as your quantity above10000 pieces. The most important thing is the order must be delivered in time.
Q7: What's the solution when items have the problem?
If the quality of the item goes wrong, we must arrange to replace the order and even make compensation.
If it is other problem, we will also do our best to assist you solving the problem including maintaining the products and replace relevant accessories.
Q8: What are the differences between 10mil and 12mil?
10mil is the most widely-used and cost effective while 12mil is more stable and the recession rate is lower than 10mil.
Q9: What are the high-power mils?
Generally, there are three different kind of high-power mils, that is, 42mil, 35mil, 28mil.
Q10: Can the ir board of 4mm degree be applied to the lens of 6mm degree?
You’d better use matching ir board, that is, if the lens are 6mm, you’d better select 6mm lamp panel, so please tell us the “mm(degree of the lens)” before
you place order.
Q11: How to find the most suitable ir lamp board model immediately?
You can send the picture of the case (housing) and tell us the size and holes of the case(housing), then we can match the most suitable lamp board for you.
Q12: Is the guarantee period of white light also 2 years?
No, the warranty of white light is 1 year, because the power of white light is higher, and more thermal energy produced, the lifespan of white light will be
reduced.
Q13: Are all the ir board with glasses?
We provide glass for ir array lamp when necessary, the rest you can ask you case supplier. In addition, we have no gaskets (waterproof rings), they are under the
case suppliers’ part.
Q14: How about the voltage?
Power supply is the DC12V (if the customer require 5V, we are also able to make), the sequence of connection is black (+) and red (-).
Q15: Are all the goods can be delivered within 15 days?
Upon your order, we will check our inventory, if the PCB inventory is sufficient, we can deliver the ordered goods on time, but our factory has no enough PCB, we
need some time to replenish the stock, you may rest assured that we will solve the problem in the first time because we have a long-standing relationship with our
supplier and we have the priority to get the PCB.
Q16: How about the illumination distance of the ir lamp of 4mm (3.6mm), 6mm, 8mm, 12mm respectively?
The distance is not up to the lamp, lamps match the lens. The function of ir lamp is to help the lens, so the illumination distance of the ir lamp is the same with
that of lens, but the more the number of the lamp, the clearer and brighter the images.
Q17: How about the material of the lamp wick?
Generally, we have 2 type of lamp wick material: Epistar and fake epistar.
