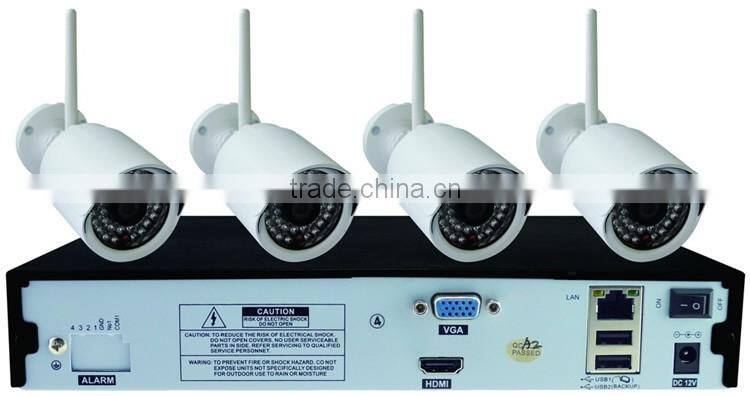

Wireless Security Cameras 4ch 720P Wifi Security ip Camera NVR Kit
US$ 1 - 239
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
KW9N4-CNB66W
Payment & Shipping
Payment Methods:
Port of Shipment:
zhuhai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2016 Surveillance Wifi Video Recorder Onvif 1080p Full HD P2P CCTV NVRUS$ 1 - 65MOQ: 1 Piece -
2016 New Products 8ch P2P 1080P Hdmi NVRUS$ 1 - 45MOQ: 1 Piece
-
Full HD 1080P CCTV NVR 24ch H.264 HDMI Network Video Recorder P2P Standalone NVRUS$ 1 - 65MOQ: 1 Piece
-
Standalone 16ch P2P 960P H.265 NVRUS$ 1 - 58MOQ: 1 Piece
-
2016 8ch P2P Hdmi NVR 1080PUS$ 1 - 38MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
OEM
Model Number
KW9N4-CNB66W
Type
IP Camera
Style
Bullet Camera
Sensor
CMOS
Technology
NetWork
Special Features
Waterproof / Weatherproof
wireless video camera
Product Description
security camera system:
| WIFI NVR | ||
| System | Main Processor | High performance embedded microprocessor |
| Operating system | Embedded LINUX OS | |
| Video spec. | Video compression format | H.264 |
| Display Image Resolution | 720P@30fps;960P@30fps;1080P@30fps | |
| Playback Image Resolution | 720P@30fps;960P@30fps;1080P@30fps | |
| Motion Detection | can setup 192(16×12)pcs motion detection area each channeland multi-level sensitivity(1-6 levels adjustable) |
|
| Privacy Masking | depends on ipc | |
| Audio spec. | Audio compression format | adpcm |
| two-way audio | 1ch | |
| Recording | Recording Mode | Manual Recording, Motion Detection Recording, Time Recording, Alarm Recording, |
| Recording storage | HDD,Network | |
| Frame rate | 30 fps NTSC;25fps PAL | |
| Recording Playback | Max suport 4ch 720P | |
| Backup Mode | Support HDD,USB Flash Disk store & backup | |
| Video | Network Video Input | 4ch |
| Video output | 1ch VGA and 1ch HDMI | |
| Audio | Audio Input | N/A |
| Audio Output | N/A | |
| Alarm | Alarm Input | N/A |
| Alarm Output | N/A | |
| Other | Network | 1x10/100Mbps,RJ45 port |
| RS485 | Standard 485 port,support half-duplex, green terminal port | |
| USB | 2 USB 2.0 ports | |
| HDD | support 1 3TB SATA HDD inside | |
| Power | DC +12V /4A | |
| power consumption | 16W-18W(not include HDD and PoE) | |
| Operation temperature | 0℃-+55℃ | |
| Operation humidity | 10%-90% | |
| Demension | 252*213*42mm(0.8u hight) | |
| Weight | 1.5--1.8KG(not include HDD) | |
| IP CAMERA | ||
| Device Type | 720P OV9712d CMOS sensor | |
| Lens Size | 1/4 | |
| Day and Night | Yes | |
| Min.Scene Illumination | 0.5lux(IR ON) | |
| Infrared sensitivity | Support | |
| IR Filter | IR-CUT | |
| IR-led lamp | 36pcs | |
| IR distance | 30M | |
| Electronic shutter | 1/5-1/15,000 /S | |
| Lens | 3.6MM | |
| Focus | Fixed | |
| Aperture | Fixed Aperture F1.2 | |
| Compression | H.264 Main Profile | |
| Picture Resolution | 1280*720@25ps | |
| Steam flow | Support dual stream | |
| Bit Rate | 128-8192kbps | |
| Bit Rate Type | CBR/VBR | |
| S/N Ratio | >50DB | |
| Image enhancement | Auto White Balance,Backlight compensation,Brightness,Contrast,Saturation adjusted | |
| Subtitles input | Support channel name, date/time | |
| Flip Config | Up/down, Left/right | |
| Audio | Support the microphone input andAudio output, support two-way voice intercom equipment | |
| equipment | An external audio equipment | |
| Audio input/ output | one channel audio input, one channel audio output | |
| Audio Compression | G.711/G.726 | |
| Alarm input/output | No | |
| Alarm way | Motion Detection:Configure motion detection area,detecting sensitivity is adjustable | |
| Alarm processing | The control center to monitor,Go to PTZ preset pos,Send E-mail, Log record,SD card storage etc. | |
| Protocal | HTTP,TCP/IP,UDP,SMTP,DDNS,DNS,SNTP,DHCP,FTP,RTP,RTSP,UPNP,ONVIF,28181 | |
| Ethernet | Ethernet (10/100 Base-T),RJ-45 connector | |
| Safety | IP address filtering,User level password protection,The user access log | |
| Wifi major chipset | MTK7601 | |
| Wifi protocol | 802.11b/n/g | |
| Frequency Range | 2.4~2.4835GHz | |
| Encryption | WEP, WPA/WPA2 | |
| WEB Browser | Microsoft Internet Explorer 6.0 and above,google,firefox etc. | |
| Mobile Phone | Support iPhone,Android,Bit rate:32K – 512K adjustable,Frame rate:6–12 fps | |
| Software Management | CMS and the devices Compatible with ONVIF | |
| Software intelligence function | Motion detection,Miss object detection, Moving object tracking, counting, Retrograde motion detection, etc. | |
| Event action | Files are stored to the back end equipment,Send E-mail,Zoom in alarm, | |
| Remote Access | DDNS,Software,P2P | |
| Accessories | Power adapter, CD, Screw bag | |
| Power Comsumption | DC 12V ,Module power consumption is less than 2 W | |
| Temperature | -20°~60°C | |
| Humidity | -10~85% | |
| Certification | CE ,FCC | |
Factory Show
Application :
Our Services
Sample Availability & Policy :
could you let us know your quantity? price can be negotiated based on Your quantity.
and sample is evaluated before bulk order production.
Guarantees/Warranties/Terms and Conditions :
We guarantee each shipment before shipping, it will be strictly inspected by our own inspector or customer's appointed inspector. According to different products or different composed parts, we provided one to two years quality guarantee after shipment.
After Sales Service :
During valid quality guarantee period, we provide spare parts or technical support to fix or upgrade the software. If the problem can't be resolved by you, please return the defective to our Hong Kong provided address and we fix it for you.
QC/Technical Support :
Our quality control and technical department is mainly composed by 10 to 19 professional workers. It includes three parts such as raw material, production is going on and final products.
