Specifications
1.low weight ,low volume2.maintain free
3.high quality with low price
4.low start up wind speed
5 wind power generator
| Wind generator part | Model | Z-50W | Z-100W |
| Name | Hyacinth | Hyacinth | |
| Rated power | 50W | 100W | |
| Rated DC voltage | DC 12V/24V | DC 12V/24V | |
| Rated current | 4.4A/2.2A | 8.8A/4.4A | |
| Rated speed | 1050r/m | 860r/m | |
| Max power | 65W | 115W | |
| Number of blade | 3 pcs | 3 pcs | |
| Starting wind speed | 3m/s | 3m/s | |
| Cut-in wind speed | 3.5m/s | 3.5m/s | |
| Cut-out wind speed | 15m/s | 15m/s | |
| Security wind speed | 45m/s | 45m/s | |
| Rated wind speed | 12m/s | 12m/s | |
| Engine | Three-phase permanent magnel generator | Three-phase permanent magnel generator | |
| Rotor diameter | 830mm | 1050mm | |
| Blade material | Carbon fiber reinforced plastics | Carbon fiber reinforced plastics | |
| Output line anti-winding device | Overall three-phase commutator | Overall three-phase commutator | |
| Over-speed wind protection | Tip stall protection + turned protection + Electromagnetic brake | Tip stall protection + turned protection + Electromagnetic brake | |
| Life span | 10 years | 10 years | |
| Equipment surface protection | Galvanization plastic coating | Galvanization plastic coating | |
| Working temperature | -40°C-70°C | -40°C-70°C | |
| N.W. | 2.6kg | 2.8kg | |
| Packing material | Carton box and foam material | Carton box and foam material | |
| packing dimension | 620*260*220mm | 620*260*220mm | |
| G.W. | 3.2kg | 3.5kg | |
| Price (USD) | 130 | 170 | |
| Tower part | Tower height | 3M(diameter 30mm zinced iron tube) | 3M(diameter 30mm zinced iron tube) |
| G.W | 17kg | 17kg | |
| Price (USD) | 80 | 80 | |
| Controlling circuit equipment | Controller*Inverter | 100W | 100W |
| Packing material | Carton box and foam material | Carton box and foam material | |
| G.W. | 2.5kg | 2.5kg | |
| PRICE (USD) | 90 | 90 | |
| Total price ( USD ) | 290 | 340 |
Company information
Shenzhen Green Elec Technology Co., Ltd. is a high-tech enterprise which makes commitment to wind power research, development, production and marketing. Our company has advanced equipment of wind power and open wind tunnel with diameter of 2.9m. A number of outstanding domestic and international wind power experts make efforts for our company's extraordinary contributions to product development. Our research results about the usage of weak winds, which expand the application scope of wind power generators, have been successfully applied to wind power field. Shenzhen Green Elec Technology Co., Ltd. has several domestic and foreign patents. Our products have had EU RoHS & CE certifications and stepped into global market with high appraisement.
Our company has 50,000 sets of Wind-Solar Hybrid wind turbines production ability and we can supply vertical and horizontal types of products. Our company has many distribution agencies. What's more, a large number of agents around the world join our sales.
Our company is working on a variety of renewable energy research including sea tide power generating, sea wave power generating, getting water with wind power and power generating at high altitude. We hope to make a brilliant future with friends who are interested in the cause of renewable energy. We will uphold our philosophy: Creation, Struggle and Return!
Our Service
maintain free
20+ Year R&D Experience.
Variable Pitch Technology.
Permanet Magnetic AC Gen.
OEM Factory.
Technical Serive for World Market

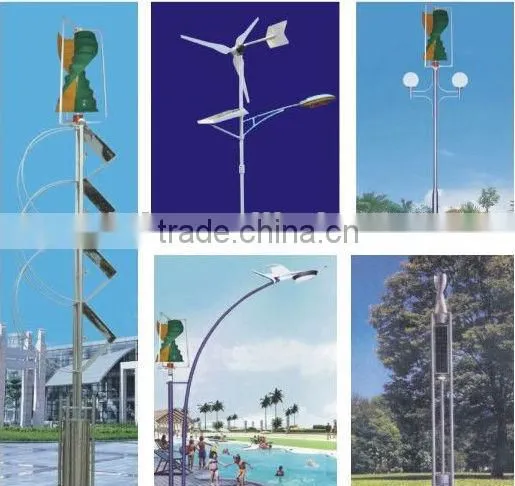

Wind PV Hybrid Street Lamp System
