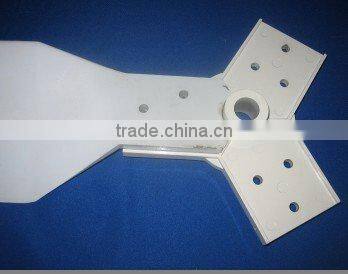

Help Center400W Wind Turbine Parts of Cap to Protect Generator
Related Products
-
300w Wind Power Generator for Power Supply Systems, and Low-load Power Consumption of ElectricityUS$ 220 - 280MOQ: 1 Set -
400W Wind Turbine's Tail for Your ThinkingUS$ 360 - 490MOQ: 5 Sets
-
Renewable Resources, Recycling Green Energy Power 400w Windmill and Solar Panel SystemNegotiableMOQ: 5 Sets
-
Renewable Resources, Recycling of Wind TurbineNegotiableMOQ: 5 Sets
-
Power Supply Systems, Led Lighting, Water Heating 3kw Wind GeneratorNegotiableMOQ: 2 Sets
Specifications

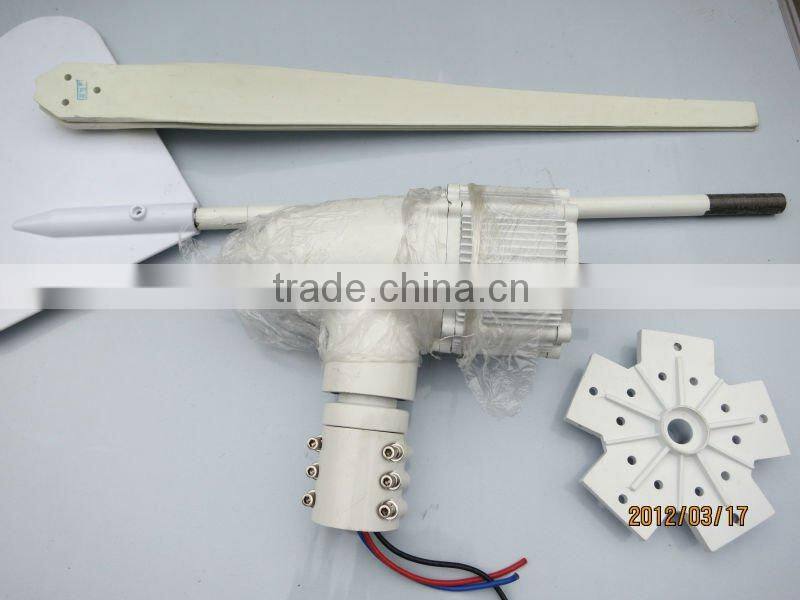

400W wind turbine 3/5blades400W wind turbine parts
LDK series of wind turbines by the ultra-high strength engineering plastic precision injection molding, the wind wheel running smooth and quiet. The wind round airfoil aerodynamic experts, designed by made with a very low starting with the entry point, high wind energy utilization efficiency and be able to use blades in accordance with its own aerodynamic effects of wind conditions to prevent any use of the next for Speed series high-quality high-strength permanent magnetic materials, generators, small size, light weight and high power generation efficiency. Motor technology experts to create a unique electromagnetic design of the generator has a very small start-resistance moment, would effectively guarantee LDK series in the breeze will be able to start running.
Series used in all high-quality precision die-casting aluminum alloy components and stainless steel fittings, extremely light weight machine. LDK series of sleek harmony with the surrounding environment, easy to install, high efficiency long life maintenance-free, anti-wind impatient tone lower. Ensure that you are in any adverse weather conditions can enjoy the clean energy
Model |
Z-400W |
Z-600W |
|||
Name |
City Swallow |
City Swallow |
|||
Rated power |
400W |
600W |
|||
Rated DC voltage |
DC 12V/24V |
DC 12v/24v |
|||
Rated current |
33A/17A |
50A/25A |
|||
Rated speed |
740r/m |
640r/m |
|||
Max power |
460W |
680W |
|||
Number of blade |
3 pcs |
5 pcs |
|
5 pcs |
|
Starting wind speed |
3m/s |
2.5m/s |
|
2.5m/s |
|
Cut-in wind speed |
3.5m/s |
3m/s |
|
3m/s |
|
Cut-out wind speed |
15m/s |
15m/s |
|||
Security wind speed |
45m/s |
45m/s |
|||
Rated wind speed |
12m/s |
12m/s |
|||
Engine |
Three-phase permanent magnel generator |
Three-phase permanent magnel generator |
|||
Rotor diameter |
1450mm |
1850mm |
|||
Blade material |
Carbon fiber reinforced plastics |
Carbon fiber reinforced plastics |
|||
Output line anti-winding device |
Over all three-phase commutator |
Over all three-phase commutator |
|||
Over-speed wind protection |
Tip stall protection + turned protection + Electromagnetic brake |
Tip stall protection + turned protection + Electromagnetic brake |
|||
Life span |
15 years |
15 years |
|||
Equipment surface protection |
Aluminum oxide + plastic coating |
Aluminum oxide + plastic coating |
|||
Working temperature |
-40°C-70°C |
-45°C-70°C |
|||
N.W. |
16kg |
17kg |
|
21kg |
|
Packing material |
Carton box and foam material |
Carton box and foam material |
|||
packing dimension |
980*480*250mm |
980*480*250mm |
|||
G.W. |
17kg |
18kg |
|
22kg |
|
