Hybrid Solar Wind Power Generator

Name: Hybrid Solar Wind Power Generator
Brand: Green Elec
SKU: 104685375

US$ 350 - 450 MOQ: 3 Sets

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Green Elec

Model Number:

z-600

Shenzhen Green Electricity Kang Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Green Elec

Model Number z-600

Type Wind Power Generator

Specifications

600W wind power generators
1.CE ROHS ISO certificate
2.Low noise and easy installation
3.2 years warranty 15 years life span

600W 12V 24V 48V AC wind power generator/wind turbine/windmill

1.REAL wind turbine plant
2.With CE ROHS ISO CERTIFICATES
3.Low noise and easy installation
4.15 years life-span

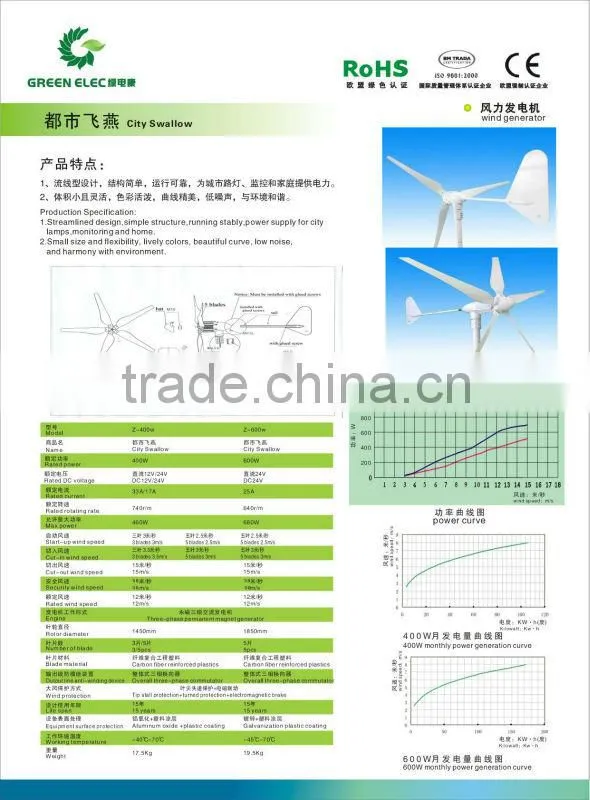

Model	Z-600W
Name	City Swallow
Rated power	600W
Rated DC voltage	DC 12/24/48V
Rated current	50/25/12.5A
Rated speed	640r/m
Max power	680W
Number of blade	5pcs
Starting wind speed	2.5m/s
Cut-in wind speed	3m/s
Cut-out wind speed	15m/s
Security wind speed	45m/s
Rated wind speed	12m/s
Engine	Three-phase permanent magnel generator
Rotor diameter	1850mm
Blade material	Carbon fiber reinforced plastics
Output line anti-winding device	Over all three-phase commutator
Over-speed wind protection	Tip stall protection + turned protection + Electromagnetic brake
Life span	15 years
Equipment surface protection	Aluminum oxide + plastic coating
Working temperature	-45°C-70°C
N.W.	19.9kg
Packing material	Carton box and foam material
packing dimension	980470250mm
G.W.	22.1kg

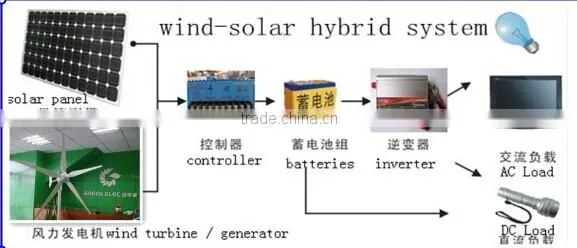

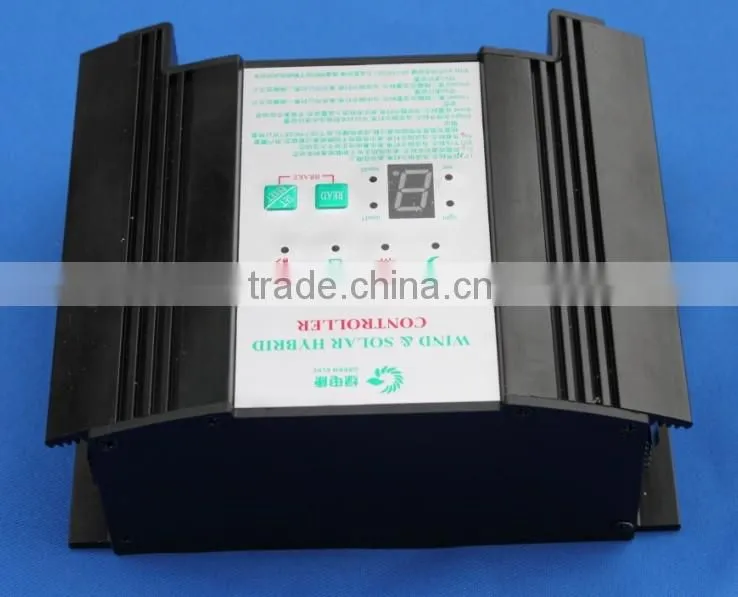

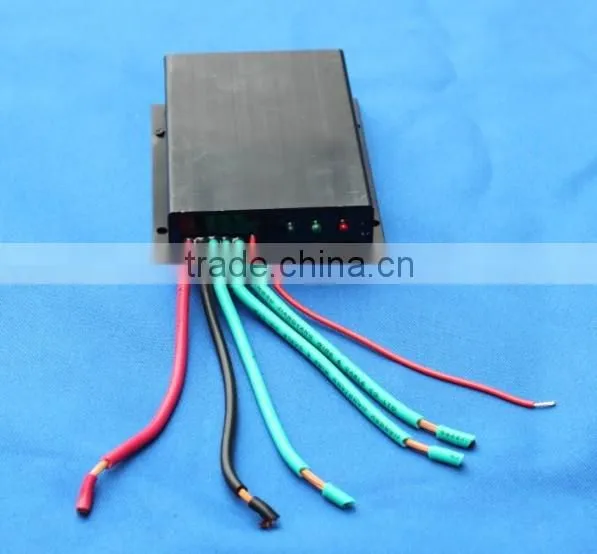

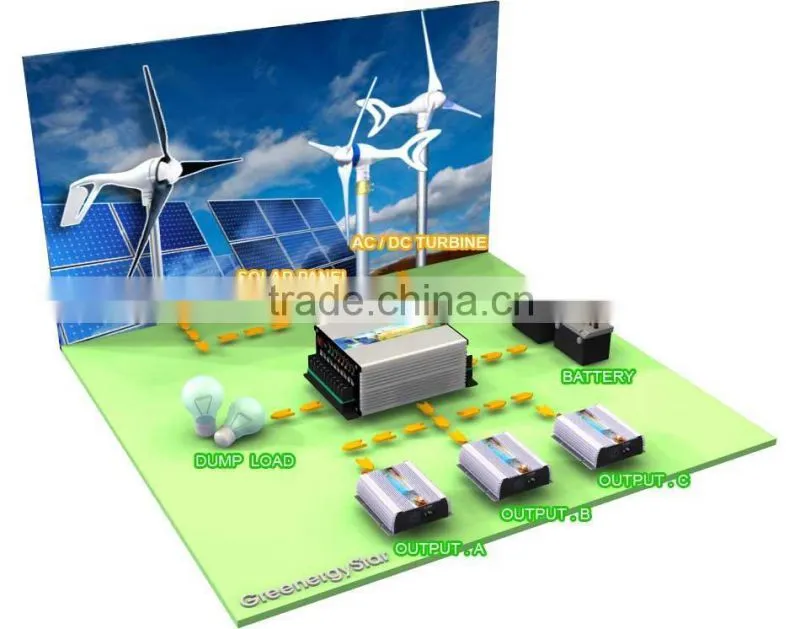

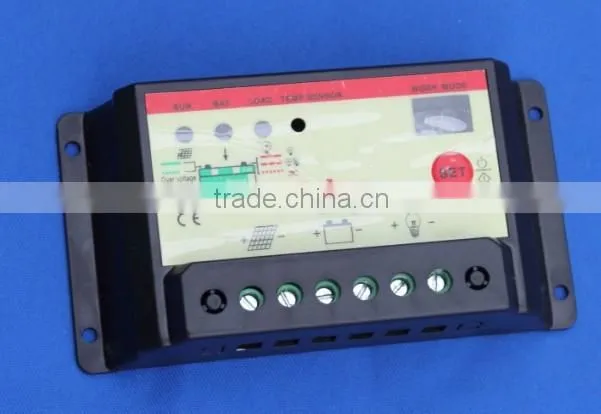

Wind-solar controller

Type		LDK-3-600/150-12/24
System rated voltage		12V/24V
Solar/PV module power		120-720W
Wind turbine power		3-600W
Charging	Charging	20A-50A(wind) 10A-30A(solar)
	Equalize Protection	14.4V±1% 28.8V±1%
	Float charge	13.8V±1% 27.6V±1%
	Equalize recovery	13.2V±1% 26.4V±1%
Over discharge	Disconnect (DC)	10.9V±1% 21.8V±1%
	Restoration (DC)	12.3V±1% 24.6V±1%
Overvoltage	Cut off (DC)	16V±1% 32V±1%
	Restoration (DC)	15V±1% 30V±1%
Load Current(DC)		≤0.06A
Voltage drop(DC)		≤0.5V
Control mode		Dual maximum power point tracking-MPPT (PWM charging efficiency 20% higher than ordinary type)
Display mode		Digital tube and LED
Display Parameters		Battery power, the load output
Type of protection		Solar reverse charge protection, battery open-circuit protection, reverse battery protection, over-speed and over-voltage protection soft automatic braking
Heat dissipation		Heat sink
Ambient temperature		-25°C~+55°C
Use altitude		≤4000m(>2000m need to reduce power usage)
Humidity		0~90%, No condensation
Net weight		880/1080g
size		Length 125 /175* width 151 * high 66(mm)
