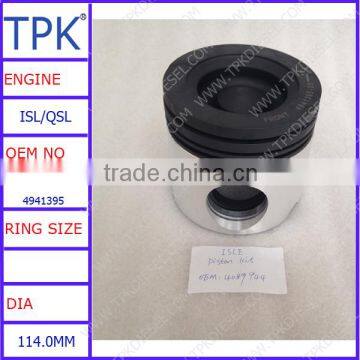

4089944 4941395 ISL QSL PISTON KIT

Specifications For 6CT Piston

Features of   6L, L375, 6L8.9, ISL, QSL, QSL8.9 Engine  Piston Kit

1:  AL109 piston

2:  Top Quality, 2 year warranty

3:  Fast Delivery & Good packing(harden cartons and plywood)

4:  One-step service

Reference Pictures of  6L, L375, 6L8.9, ISL, QSL, QSL8.9

Engine  Piston Kit

Shipping

(1): By sea

(2): By air

(3): By express (DHL, FEDEX, TNT, EMS... )

Packing:

(1): TPK packing or nuetral packing

(2): according to your requirments

Payment

(1): TT (30 %  in Advanced, 70 % before Shipment)
(2): Western Union
(3): Cash

Warranty

All our parts warranty 1 years, If problems from our parts itself, we will take all responsibilty on the spare parts and service.

If the troubles come from human factors, should take responsible for it.

        Guangzhou TPK Diesel Parts Co.,Ltd, Build in 1996, is a professional  manufacturer on Diesel Piston, Piston ring, Cylinder Liner, Head Gasket & Overhaul Gasket Kit. TPK has been cooperating with OEM factory in China for several years, running business mainly in imported diesel engines . All products in TPK have passed the national quality supervision on combustion engines and obtained certificates from ISO9002.

Till now, TPK has four storehouses in Guangzhou, occupying an area of over 5,000 square meters. The number of employees in TPK reaches up to 100, among which include 20 sales personnel in China, 15 sales personnel outside China, 10 QC personnel. TPK products command a ready market in Europe, Middle East, South America, North America, and Southeast Asia and are well received.

With the principles of international brand, good quality, shared resources, and serving the world, TPK endeavors to provide perfect accessories replacement solutions for customers. TPK is ready to cooperte with you to reach a win-win future.

Q:   Do you have any other engine parts?

A:   yes, we have more than 10 kinds of engine repair parts like the followings:

1: Cylinder block, cylinder head, crankshaft, camshaft, connecting rod.
2: Liner Kits. Piston kits, piston ring set, cylinder liner (sleeve), Pin bush.
3: Full / Overhaul gasket kit, head gasket,Oil Seal.
4: Engine bearing, Main bearing, con rod bearing,Camshaft Bearing,thrust washer
5: Engine valve, valve seat, valve guide.
6: Oil Pump, water pump,
7: Starter, alternator
9: Oil cooler, radiator
10: Turbocharger

Q: Do you have Some Other excavator engine models?

A:  yes, for CMS, we have the following models

C_U_M_M_I_N_S:

(1): 4BT,4BT3.9,4BTA,6BT,6BT5.9,6BTA,6BTA5.9,
(2): 6CT,6CTA,6CTAA,6CT8.3,6CTA8.3,6CTAA8.3
(3): 6L,L375,NH220,N14,NTA14,L10,LT10,
(4): NT855,NTA855,NTC,K19,KTA19,KTAA19,K38,KTA38,KTAA38
(5): ISBE, ISB3.9,ISB5.9, ISB6.7,ISCE,ISDE,ISDE107,
(6): M11,ISM,ISM11,QSM, ISF2.8,ISF3.8
(7): ISL,ISLE,ISL340,ISL375,L375,T375,ISLE375,
(8): QSB,QSB6.7,QSC,QSL,ISX,QSX,ISX15,QSX15

Q: Do you have Some Online service?

A:  yes, we have Whatspp, Wechat, Skype, YAHOO, QQ...

ENGINE KITS
IF3800910 Inframe kit 1 CAPS fuel system, CM554; Piston kit 3800910, Piston top 3967507
OH3800910 Overhaul kit 1 CAPS fuel system, CM554; Piston kit 3800910, Piston top 3967507
IF4089944 Inframe kit 1 CAPS fuel system, CM554; Piston kit 4089944, Piston top 4941395
OH4089944 Overhaul kit 1 CAPS fuel system, CM554; Piston kit 4089944, Piston top 4941395
IF4089646 Inframe kit 1 HPCR fuel system, CM850; Piston kit 4089646, Piston top 4941392
OH4089646 Overhaul kit 1 HPCR fuel system, CM850; Piston kit 4089646, Piston top 4941392
IF4089963 Inframe kit 1 HPCR fuel system, CM850; Piston kit 4089963, Piston top 4941393
OH4089963 Overhaul kit 1 HPCR fuel system, CM850; Piston kit 4089963, Piston top 4941393
IF4955237 Inframe kit 1 HPCR fuel system, CM850; Piston kit 4955236, Piston top 4941396
OH4955237 Overhaul kit 1 HPCR fuel system, CM850; Piston kit 4955236, Piston top 4941396
IF4955530 Inframe kit 1 HPCR fuel system, CM2150; Piston kit 4955530, Piston top 4932721
OH4955530 Overhaul kit 1 HPCR fuel system, CM2150; Piston kit 4955530, Piston top 4932721
CYLINDER KIT
3800913 Cylinder kit 6 Contains 3800910 piston kit, 3800912 ring set, 3934046 pin, 3800328 liner kit
[3800913]
3800910 Piston kit 6 Contains 3945458 top, 3800912 ring set, 3800914 skirt kit [3800910; replaces
3967507]
4089613 Piston kit 6 Contains 3950395 top, 3800912 ring set, 3920692 retainers, 3934046 pin, 3966721
skirt [4089613; replaces 4025183]
4089944 Piston kit 6 Contains 4941395 top, 4089644 ring set, 3920692 retainers, 3950549 pin, 3966721
skirt [4089944; replaces 4955299]
4089646 Piston kit 6 Contains 4941392 top, 4089644 ring set, 3920692 retainers, 3966721 skirt
[4089646; replaces 4955296]
4089963-B Piston kit 6 Contains 4941393 top, 4089644 ring set, 3920692 retainers, 3966721 skirt
[4089963; replaces 4955297]
4955237-B Piston kit 6 Contains 4941396 top, 4089644 ring set, 3920692 retainers, 3966721 skirt [4955237]
4955530 Piston kit 6 Contains 4932721 top, 4955651 ring set, 3920692 retainers, 4936397 skirt
[4955530; replaces 4309526]
3934046-F Piston pin 6 [replaces 3941052, 3901597]
3950549-F Piston pin 6
3920692-F Retainer piston pin 12 [replaces 3901996, 3901922]
3800912-F Ring set 6
Use with piston 4930435, 3966722, 3950395, 3948612, 3945458
4089644-F Ring set 6 [replaces 4089643]
Use with piston 4941396, 4941395, 4941393, 4941392, 4934266, 4928927, 3974404
4955651-F Ring set 6 [4955651]
3800328-F Cylinder liner kit 6 1/05/98 to Present (Thick-Walled Block)(Previously 3800903) [3948095 liner,
3907177 oring]

3948095-F Cylinder liner 6 1/05/98 to Present (Previously 3944344) (.24" between bores, 5.15 flange OD, 3mm
shorter)
3907177-F Cylinder liner oring 6
3924445-F Shim cylinder liner 0.25mm Oversize (0.010 in.)
3924446-F Shim cylinder liner 0.38mm Oversize (0.015 in.)
3924447-F Shim cylinder liner 0.50mm Oversize (0.020 in.)
3924448 Shim cylinder liner 0.75mm Oversize (0.030 in.) [OEM]
3924449 Shim cylinder liner 1.00mm Oversize (0.040 in.) [OEM]
BEARINGS
3802210-F Bearing main set 1 std [when out use: 3945917]
3802211-F Bearing main set 1 0.25mm u/s [when out use 3945918]
3802212-F Bearing main set 1 0.50mm u/s [when out use 3945919]
3945917-F Bearing main set 1 std (narrow); (6) 3944158, (7) 3944153, (1) 3944158
3945918-F Bearing main set 1 0.25mm u/s (narrow); (6) 3944159, (7) 3944154, (1) 3944164
3945919-F Bearing main set 1 0.50mm u/s (narrow); (6) 3944160, (7) 3944155, (1) 3944165
3945920-B Bearing main set 1 0.75mm u/s (narrow); (6) 3944161, (7) 3944156, (1) 3944166
3901430-F Bearing rod half std
Upper and Lower early engines; Lower only late engines
3901431-F Bearing rod half 0.25mm u/s
3901432-F Bearing rod half 0.50mm u/s
3901433-F Bearing rod half 0.75mm u/s
3901434-F Bearing rod half 1.00mm u/s
3950661-F Bearing rod half Std [3950661; replaces 3901430, 3901460]
Upper and Lower early engines; Lower only late engines
3950662-F Bearing rod half 0.25mm u/s [3950662]
3950663-F Bearing rod half 0.50mm u/s [3950663]
3950664-F Bearing rod half 0.75mm u/s [3950664]
3950665-F Bearing rod half 1.00mm u/s [3950665]
3966244-F Bearing rod half 6 Std [3966244]
Upper only late enginess
3966245-CMO Bearing rod half 0.25mm
3966246-CMO Bearing rod half 0.50mm
3966247-CMO Bearing rod half 0.75mm
3966248-CMO Bearing rod half 1.00mm
3945329-F Bearing cam 7 [repl 3901685, 3943199]
3945703-CMO Bushing con rod 6
4944137-B Bushing con rod 6 Used with 4947898 and 5266243 rods
GASKET & SEALS
4089958-F Set cylinder head 1 [replaces 4025238, 3800342]
