Hot Sales 6CT PISTON KIT 3802281 3919565 3802281 3923161 3923164 3908750

Hot Sales 6CT PISTON KIT 3802281 3919565 3802281 3923161 3923164 3908750 thumbnail-1
Hot Sales 6CT PISTON KIT 3802281 3919565 3802281 3923161 3923164 3908750 thumbnail-2
Hot Sales 6CT PISTON KIT 3802281 3919565 3802281 3923161 3923164 3908750 thumbnail-3
Hot Sales 6CT PISTON KIT 3802281 3919565 3802281 3923161 3923164 3908750 thumbnail-4
Hot Sales 6CT PISTON KIT 3802281 3919565 3802281 3923161 3923164 3908750 photo-1
Hot Sales 6CT PISTON KIT 3802281 3919565 3802281 3923161 3923164 3908750 photo-2
Hot Sales 6CT PISTON KIT 3802281 3919565 3802281 3923161 3923164 3908750 photo-3
Hot Sales 6CT PISTON KIT 3802281 3919565 3802281 3923161 3923164 3908750 photo-4
US$ 112.6 - 114.6 MOQ: 3 Sets
Key Specifications
Get Latest Price
Type:
Other, Piston, Engine piston kit
Size:
Standard Size
Car Make:
6CT
Contact Supplier Request Quote Chat Now
Guangzhou TPK Diesel Parts Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Piston, Engine piston kit
Size Standard Size
Car Make 6CT
OE NO. 3919565 3802281 3923161 3923164
Place of Origin Hunan, China
Brand Name TPK
Model Number 6CT
Warranty 12 Months
        Hot sales  6CT PISTON KIT 3802281 3919565 3802281 3923161 3923164 3908750
Product Description

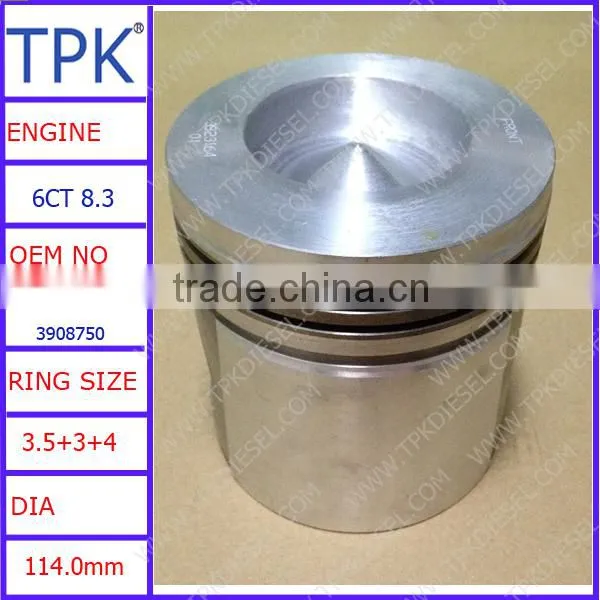

Specifications For 6CT Piston



Commodity:       Engine Piston
Model:       6CT PISTON
Part No:         3919565 3802281 3923161 3923164 3908750
other models:       6CT,6CTA,6CTAA,6CT8.3,6CTA8.3,6CTAA8.3
Cylinder dia:        114.0mm
Piston Pin Size:        45.0 mm* 91.0mm
Length:        120.3 mm
Remarks:        Alfin





Features of  6CT Engine  Piston Kit



1:  AL109 piston



2:  Top Quality, 2 year warranty



3:  Fast Delivery & Good packing(harden cartons and plywood)



4:  One-step service





Reference Pictures of 6C 6CT,6CTA,6CTAA,6CT8.3,6CTA8.3,6CTAA8.3

Engine  Piston Kit





 Hot sales 6CT PISTON KIT 3802281 3919565 3802281 3923161 3923164 3908750Hot sales 6CT PISTON KIT 3802281 3919565 3802281 3923161 3923164 3908750Hot sales 6CT PISTON KIT 3802281 3919565 3802281 3923161 3923164 3908750Hot sales 6CT PISTON KIT 3802281 3919565 3802281 3923161 3923164 3908750Hot sales 6CT PISTON KIT 3802281 3919565 3802281 3923161 3923164 3908750













Packaging & Shipping



 Hot sales 6CT PISTON KIT 3802281 3919565 3802281 3923161 3923164 3908750





Shipping



(1): By sea

(2): By air

(3): By express (DHL, FEDEX, TNT, EMS... )



Packing:



(1): TPK packing or nuetral packing

(2): according to your requirments







Our Services



Payment



(1): TT (30 %  in Advanced, 70 % before Shipment)
(2): Western Union
(3): Cash



Warranty



All our parts warranty 1 years, If problems from our parts itself, we will take all responsibilty on the spare parts and service.



If the troubles come from human factors, should take responsible for it.





Company Information





        Guangzhou TPK Diesel Parts Co.,Ltd, Build in 1996, is a professional  manufacturer on Diesel Piston, Piston ring, Cylinder Liner, Head Gasket & Overhaul Gasket Kit. TPK has been cooperating with OEM factory in China for several years, running business mainly in imported diesel engines . All products in TPK have passed the national quality supervision on combustion engines and obtained certificates from ISO9002.



Till now, TPK has four storehouses in Guangzhou, occupying an area of over 5,000 square meters. The number of employees in TPK reaches up to 100, among which include 20 sales personnel in China, 15 sales personnel outside China, 10 QC personnel. TPK products command a ready market in Europe, Middle East, South America, North America, and Southeast Asia and are well received.



With the principles of international brand, good quality, shared resources, and serving the world, TPK endeavors to provide perfect accessories replacement solutions for customers. TPK is ready to cooperte with you to reach a win-win future.





FAQ




Q:   Do you have any other engine parts?



A:   yes, we have more than 10 kinds of engine repair parts like the followings:



1: Cylinder block, cylinder head, crankshaft, camshaft, connecting rod.
2: Liner Kits. Piston kits, piston ring set, cylinder liner (sleeve), Pin bush.
3: Full / Overhaul gasket kit, head gasket,Oil Seal.
4: Engine bearing, Main bearing, con rod bearing,Camshaft Bearing,thrust washer
5: Engine valve, valve seat, valve guide.
6: Oil Pump, water pump,
7: Starter, alternator
9: Oil cooler, radiator
10: Turbocharger



Q: Do you have Some Other excavator engine models?



A:  yes, for CMS, we have the following models




C_U_M_M_I_N_S:



(1): 4BT,4BT3.9,4BTA,6BT,6BT5.9,6BTA,6BTA5.9,
(2): 6CT,6CTA,6CTAA,6CT8.3,6CTA8.3,6CTAA8.3
(3): 6L,L375,NH220,N14,NTA14,L10,LT10,
(4): NT855,NTA855,NTC,K19,KTA19,KTAA19,K38,KTA38,KTAA38
(5): ISBE, ISB3.9,ISB5.9, ISB6.7,ISCE,ISDE,ISDE107,
(6): M11,ISM,ISM11,QSM, ISF2.8,ISF3.8
(7): ISL,ISLE,ISL340,ISL375,L375,T375,ISLE375,
(8): QSB,QSB6.7,QSC,QSL,ISX,QSX,ISX15,QSX15





Q: Do you have Some Online service?



A:  yes, we have Whatspp, Wechat, Skype, YAHOO, QQ...



Hot sales 6CT PISTON KIT 3802281 3919565 3802281 3923161 3923164 3908750





Q: Do you have Some Other models?



A: yes, we have



6CT Piston 3923165
3802396 (KIT)
6CT,210HP Piston 3923163 3802397 (KIT)
6CT,215HP Piston 3929161 3923367
6CT,230HP Piston 3923537
6CT,240HP Piston 3923164
3802398 (KIT)
6CT,260HP Piston 3925878 3802601 (KIT)
6CT, 300HP Piston 3917707 3802263 (KIT)
6743-31-2110
6CT, 325HP Piston 3926963
6CT  Piston 3923164 3802398
6CTA 8.3 Piston 3929161
3802657 (KIT)





CYLINDER KIT
3277991-F Cylinder kit 6 16:1 CR [3277336 piston, 151770 pin, 157978 ret, 3278723 ring, 3022530 liner]
AR61504-F Cylinder kit 6 17:1 CR [200800 piston, 151770 pin, 157978 ret, 3278723 ring, 3022530 liner]
3020737-F Piston kit 6 16:1 CR [3277336 piston, 151770 pin, 157978 ret]
AR60740-F Piston kit 6 17:1 CR [200800 piston, 151770 pin, 157978 ret]
3277336-F Piston body 6 16:1 CR
200800-F Piston body 6 17:1 CR
151770-F Piston pin 6
157978-F Retainer piston pin 12 Lock rings
3278723-F Ring set 6 [1 cyl] (repl AR61500)
3277592-F Cylinder liner kit 6 [3022530 liner, 216283 crevice seal, (2) 216284 oring] (repl AR60170)
3022530-F Cylinder liner 6 (repl 554311)
216283-F Cylinder liner oring 6 Crevice seal
216284-F Cylinder liner oring 12 Packing seal
BEARINGS
BM99830-F Bearing main set 1 Std
BM99831-F Bearing main set 1 .010
BM99832-F Bearing main set 1 .020
BM99833-F Bearing main set 1 .030
BM99834-F Bearing main set 1 .040
157620-F Bearing rod half 12 Std (naturally aspirated engines only)
157621-F Bearing rod half 12 .010 (naturally aspirated engines only)
157622-F Bearing rod half 12 .020 (naturally aspirated engines only)
157623-F Bearing rod half 12 .030 (naturally aspirated engines only)
157624-F Bearing rod half 12 .040 (naturally aspirated engines only)
3012360-F Bearing rod half 12 Std (turbo and natural engines)
3012361-F Bearing rod half 12 .010 (turbo and natural engines)
3012362-F Bearing rod half 12 .020 (turbo and natural engines)
3012363-F Bearing rod half 12 .030 (turbo and natural engines)
3277332-F Bushing con rod 6
3278345-F Bearing cam 2 (repl 554003)
Turbo cam 3278026 only
3031037-F Bearing cam 2 (repl 554004)
Turbo cam 3278026 only
GASKET & SEALS
3277752-F Set upper 1 Gaskets for both heads
3801657-F Set lower 1
3017063-F Gasket cylinder head 2
154019-F Gasket valve cover 2 Early
3277100-F Gasket valve cover 2 Late; seal stock
556356-F Gasket manifold exhaust 2
175726-F Gasket oil pan 1
3010457-F Seal crankshaft front 1 For tapered nose crankshaft (early style)
3010464-F Sleeve crankshaft 1 front
3010459-F Seal crankshaft rear 1



CAMSHAFT
3277463-F Camshaft 1
Small Cam; CPL 5004, 5010, 5015, 5024, 5036, 5058
3278029-F Camshaft 1
Big Cam; CPL 5031, 5032, 5054, 5066, 5067, 5070, 5071
187649-F Gear camshaft 1
168209-B Push rod 12 (repl 170326)
Valve
168209-B Push rod 6 (repl 170326)
Injector
F1 CAM FOLLOWER
153679-F Roller cam 12 Valve
169154-F Pin roller cam 12 Valve
108186-F Lock pin 12 Valve
154571-F Roller cam 6 Injector
114223-F Pin roller cam 6 Injector
111272-F Lock pin 6 Injector
218853-F Socket 12
Intake and exhaust valve
218853-F Socket 6
Injector
R1 ROCKER BOX
152937 Bushing lever 12 [Discontinued] Valve
152936 Bushing lever 6 [Discontinued] Injector
168306-F Screw rocker lever 6
S212-F Nut rocker lever 6
194037-F Socket lever 6 Injector lever
VALVE TRAIN
CYLHEAD NOTE For complete and bare cylinder heads - Refer to Cylinder Head Catalog or Call with casting
3275779-F Valve kit 24 Intake and exhaust [3275356 valve, 3275354 lock]
3275356-F Valve 24 Intake and exhaust
01228 Valve intake 48 Ealrly style, square grv lock; 1.605 head dia, 5.565 length, 0.3788 stem dia, 0.3300 tip to groove, 30 deg,
1G [166774]
166772-F Valve lock 48 early square groove lock for 166774 valve
3275354-F Valve lock 48
163037-F Valve spring 24
3278173-F Valve guide 24 (repl 154946)
156541-F Valve stem seal 12
Intake
195000-F Valve insert 24 intake; Available in 0.005 oversize
154390-F Valve insert 24 exhaust
155441 Retainer valve spring 24
CRANKSHAFT
195240-F Crankshaft 1
177086-F Gear crankshaft 1
186377-F Damper vibration 1
CONNECTING ROD
551143-F Bolt connecting rod 12
152838-F Nut rod bolt 12
OIL / LUBE SYSTEM
AR60801-F Oil pump 1

551079-F Spring oil pump 1 Pressure regulator
183014-F Plunger oil pump 1 Pressure regulator
3201388-F Gasket oil pump 1 Tube to pump (repl 164916)
110848-F Oil cooler Tube bundle 6.500 x 4.00, automotive
166407-F Gasket oil cooler Cooler to filter
165153-F Gasket oil cooler Housing to block
3019116-F Seal oil cooler (repl 148293)
110827-F Retainer oil cooler
UEL / INJECTOR
INJECTOR Injector New or remanufactured available, call for pricing
169630-F Injector tube 6
3007759-F Injector sleeve oring 6
193736-F Oring injector 18 (repl 101754)
3034216-F Gear fuel pump 1 7/16 inch, LH standard (repl 3034232, BM96327)
167166-F Gear fuel pump 2 7/16-inch
167169-F Shaft fuel pump 1 Splined drive
175866-F Idler fuel pump 1
3026163-F Gasket fuel pump 1 Mounting (repl 210647)
110855-F Gasket fuel pump 1 Body
OOLING SYSTEM
WP667-PR Water pump 1 Remanufactured; cast 555260 [AR61788]
181830 Thermostat 1 Thermostat and seal, non-vented, 180F degree [3076489 kit, 20
186780-F Seal thermostat 1
AR61788-F Water pump 1 Front mount
169042-F Gasket water pump 1 Mounting (repl 202789)
AR61392-F Water pump kit 1 Repair
553093-B Idler assembly 1 Water pump pulley
553090-B Shaft water pump 1
160586-F Retainer 1 Lock ring water pump
554438-F Impeller 1
3029099-F Seal water pump 1 Impeller side, seal and seat (repl AR12732)
177596-F Bearing water pump 1 Outer
552335-F Bearing water pump 1 Inner
