6CT,6CT8.3 PISTON KIT 3929161 3802657, 325 HP

Specifications For 6CT Piston

Features of  6CT Engine  Piston Kit

1:  AL109 piston

2:  Top Quality, 2 year warranty

3:  Fast Delivery & Good packing(harden cartons and plywood)

4:  One-step service

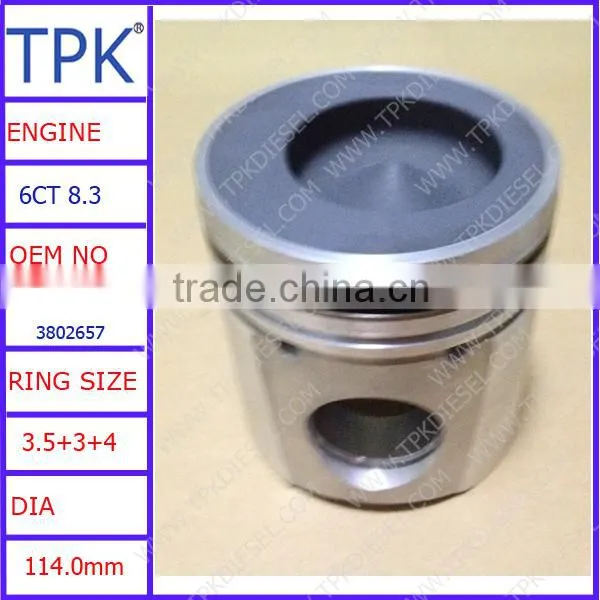

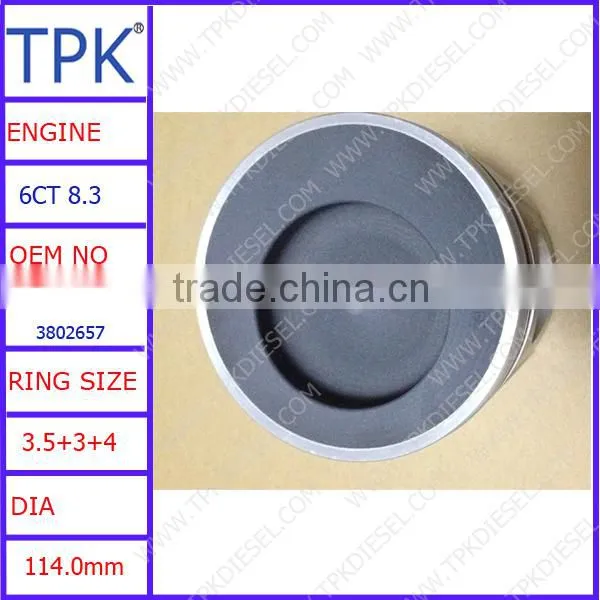

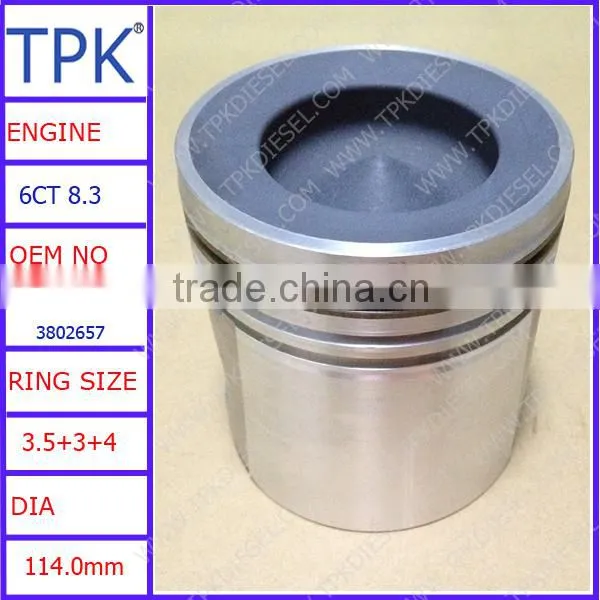

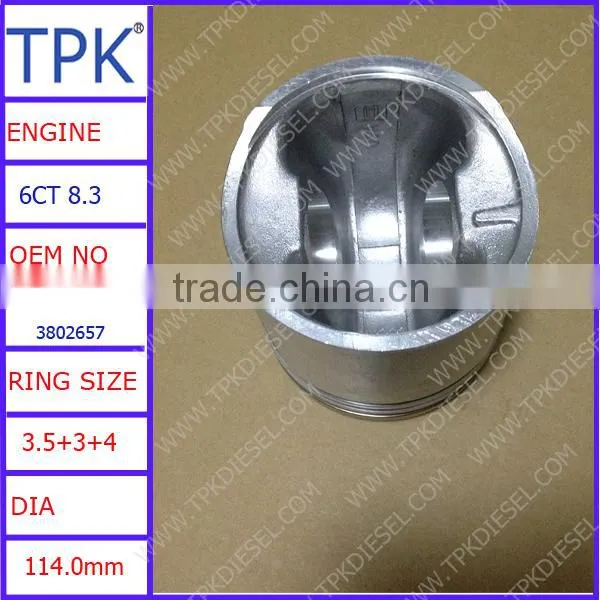

Reference Pictures of 6C 6CT,6CTA,6CTAA,6CT8.3,6CTA8.3,6CTAA8.3

Engine  Piston Kit

Shipping

(1): By sea

(2): By air

(3): By express (DHL, FEDEX, TNT, EMS... )

Packing:

(1): TPK packing or nuetral packing

(2): according to your requirments

Payment

(1): TT (30 %  in Advanced, 70 % before Shipment)
(2): Western Union
(3): Cash

Warranty

All our parts warranty 1 years, If problems from our parts itself, we will take all responsibilty on the spare parts and service.

If the troubles come from human factors, should take responsible for it.

        Guangzhou TPK Diesel Parts Co.,Ltd, Build in 1996, is a professional  manufacturer on Diesel Piston, Piston ring, Cylinder Liner, Head Gasket & Overhaul Gasket Kit. TPK has been cooperating with OEM factory in China for several years, running business mainly in imported diesel engines . All products in TPK have passed the national quality supervision on combustion engines and obtained certificates from ISO9002.

Till now, TPK has four storehouses in Guangzhou, occupying an area of over 5,000 square meters. The number of employees in TPK reaches up to 100, among which include 20 sales personnel in China, 15 sales personnel outside China, 10 QC personnel. TPK products command a ready market in Europe, Middle East, South America, North America, and Southeast Asia and are well received.

With the principles of international brand, good quality, shared resources, and serving the world, TPK endeavors to provide perfect accessories replacement solutions for customers. TPK is ready to cooperte with you to reach a win-win future.

Q:   Do you have any other engine parts?

A:   yes, we have more than 10 kinds of engine repair parts like the followings:

1: Cylinder block, cylinder head, crankshaft, camshaft, connecting rod.
2: Liner Kits. Piston kits, piston ring set, cylinder liner (sleeve), Pin bush.
3: Full / Overhaul gasket kit, head gasket,Oil Seal.
4: Engine bearing, Main bearing, con rod bearing,Camshaft Bearing,thrust washer
5: Engine valve, valve seat, valve guide.
6: Oil Pump, water pump,
7: Starter, alternator
9: Oil cooler, radiator
10: Turbocharger

Q: Do you have Some Other excavator engine models?

A:  yes, for CMS, we have the following models

C_U_M_M_I_N_S:

(1): 4BT,4BT3.9,4BTA,6BT,6BT5.9,6BTA,6BTA5.9,
(2): 6CT,6CTA,6CTAA,6CT8.3,6CTA8.3,6CTAA8.3
(3): 6L,L375,NH220,N14,NTA14,L10,LT10,
(4): NT855,NTA855,NTC,K19,KTA19,KTAA19,K38,KTA38,KTAA38
(5): ISBE, ISB3.9,ISB5.9, ISB6.7,ISCE,ISDE,ISDE107,
(6): M11,ISM,ISM11,QSM, ISF2.8,ISF3.8
(7): ISL,ISLE,ISL340,ISL375,L375,T375,ISLE375,
(8): QSB,QSB6.7,QSC,QSL,ISX,QSX,ISX15,QSX15

Q: Do you have Some Online service?

A:  yes, we have Whatspp, Wechat, Skype, YAHOO, QQ...

3917707
3802388
3907792
Pre 1992, block# 3802265, 4.00mm (.16") between bores; Flange OD 5.23"
Up to ESN 44706126 Up to ESN 21123436 Up to ESN 30417120
Cylinder kit
Cylinder liner
3802406
3919937
1992 & up, block# 3802408, 6.00mm (.24") between bores; Flange OD 5.15"
ESN 44706127 to 45636465 ESN 21123437 to 21301476
Cylinder kit
Cylinder liner
3919247
LK92477792
3907792
Pre 1992, block# 3802265, 4.00mm (.16") between bores; Flange OD 5.23"
Up to ESN 44706126 Up to ESN 21123436 Up to ESN 30417120
Cylinder kit
Cylinder liner
LK92479937
3919937
1992 & up, block# 3802408, 6.00mm (.24") between bores; Flange OD 5.15"
ESN 44706127 to 45636465 ESN 21123437 to 21301476
Cylinder kit
Cylinder liner
3919566
3802372
3907792
Pre 1992, block# 3802265, 4.00mm (.16") between bores; Flange OD 5.23"
Up to ESN 44706126 Up to ESN 21123436 Up to ESN 30417120
Cylinder kit
Cylinder liner
3802405
3919937
1992 & up, block# 3802408, 6.00mm (.24") between bores; Flange OD 5.15"
ESN 44706127 to 45636465 ESN 21123437 to 21301476
Cylinder kit
Cylinder liner
3934580
3948095
Shorter liner: 3mm shorter than previous liners
Effective with ESN 45636466 Effective with ESN 21301477
Cylinder kit
Cylinder liner
3923163
3802400
3907792
Pre 1992, block# 3802265, 4.00mm (.16") between bores; Flange OD 5.23"
Up to ESN 44706126 Up to ESN 21123436 Up to ESN 30417120
Cylinder kit
Cylinder liner
3802403
3919937
1992 & up, block# 3802408, 6.00mm (.24") between bores; Flange OD 5.15"
ESN 44706127 to 45636465 ESN 21123437 to 21301476
Cylinder kit
Cylinder liner
3923164
3802401
3907792
Pre 1992, block# 3802265, 4.00mm (.16") between bores; Flange OD 5.23"
Up to ESN 44706126 Up to ESN 21123436 Up to ESN 30417120
Cylinder kit
Cylinder liner
3802404
3919937
1992 & up, block# 3802408, 6.00mm (.24") between bores; Flange OD 5.15"
ESN 44706127 to 45636465 ESN 21123437 to 21301476
Cylinder kit
Cylinder liner
3923165
3802399
3907792
Pre 1992, block# 3802265, 4.00mm (.16") between bores; Flange OD 5.23"
Up to ESN 44706126 Up to ESN 21123436 Up to ESN 30417120
Cylinder kit
Cylinder liner
3802402
3919937
1992 & up, block# 3802408, 6.00mm (.24") between bores; Flange OD 5.15"
ESN 44706127 to 45636465 ESN 21123437 to 21301476
Cylinder kit
Cylinder liner
3925878
3802609
3919937
1992 & up, block# 3802408, 6.00mm (.24") between bores; Flange OD 5.15"
ESN 44706127 to 45636465 ESN 21123437 to 21301476
Cylinder kit
Cylinder liner
3925879
3802610
3919937
1992 & up, block# 3802408, 6.00mm (.24") between bores; Flange OD 5.15"
ESN 44706127 to 45636465 ESN 21123437 to 21301476
Cylinder kit
Cylinder liner
3929161
3802811
3919937
1992 & up, block# 3802408, 6.00mm (.24") between bores; Flange OD 5.15"
ESN 44706127 to 45636465 ESN 21123437 to 21301476
Cylinder kit
Cylinder liner
3942106
3800319
3948095
Cylinder kit
Cylinder liner
3943367
3800321
3948095
Cylinder kit
Cylinder liner

Cylinder
Kit
Liner Notes Serial Numbers Liner
Seal ring
Piston
Body
3800317 3948095 Replaced by 3800319 cylinder kit / 3942106 piston body 3907177 3943446
3800319 3948095 3907177 3942106
3800321 3948095 3907177 3943367
3802372 3907792 Pre 1992, block# 3802265, 4.00mm (.16") between bores; Flange OD 5.23" Up to ESN 44706126
Up to ESN 21123436
Up to ESN 30417120
3907177 3919566
3802388 3907792 Pre 1992, block# 3802265, 4.00mm (.16") between bores; Flange OD 5.23" Up to ESN 44706126
Up to ESN 21123436
Up to ESN 30417120
3907177 3917707
3802399 3907792 Pre 1992, block# 3802265, 4.00mm (.16") between bores; Flange OD 5.23" Up to ESN 44706126
Up to ESN 21123436
Up to ESN 30417120
3907177 3923165
3802400 3907792 Pre 1992, block# 3802265, 4.00mm (.16") between bores; Flange OD 5.23" Up to ESN 44706126
Up to ESN 21123436
Up to ESN 30417120
3907177 3923163
3802401 3907792 Pre 1992, block# 3802265, 4.00mm (.16") between bores; Flange OD 5.23" Up to ESN 44706126
Up to ESN 21123436
Up to ESN 30417120
3907177 3923164
3802402 3919937 1992 & up, block# 3802408, 6.00mm (.24") between bores; Flange OD 5.15 ESN 44706127 to 45636465
ESN 21123437 to 21301476
3907177 3923165
3802403 3919937 1992 & up, block# 3802408, 6.00mm (.24") between bores; Flange OD 5.15 ESN 44706127 to 45636465
ESN 21123437 to 21301476
3907177 3923163
3802404 3919937 1992 & up, block# 3802408, 6.00mm (.24") between bores; Flange OD 5.15 ESN 44706127 to 45636465
ESN 21123437 to 21301476
3907177 3923164
3802405 3919937 1992 & up, block# 3802408, 6.00mm (.24") between bores; Flange OD 5.15 ESN 44706127 to 45636465
ESN 21123437 to 21301476
3907177 3919566
3802406 3919937 1992 & up, block# 3802408, 6.00mm (.24") between bores; Flange OD 5.15 ESN 44706127 to 45636465
ESN 21123437 to 21301476
3907177 3917707
3802609 3919937 1992 & up, block# 3802408, 6.00mm (.24") between bores; Flange OD 5.15 ESN 44706127 to 45636465
ESN 21123437 to 21301476
3907177 3925878
3802610 3919937 1992 & up, block# 3802408, 6.00mm (.24") between bores; Flange OD 5.15 ESN 44706127 to 45636465
ESN 21123437 to 21301476
3907177 3925879
3802811 3919937 1992 & up, block# 3802408, 6.00mm (.24") between bores; Flange OD 5.15 ESN 44706127 to 45636465
ESN 21123437 to 21301476
3907177 3929161

Cylinder
Kit
Liner Notes Serial Numbers Liner
Seal ring
Piston
Body
3934580 3948095 Shorter liner: 3mm shorter than previous liners Effective with ESN 45636466
Effective with ESN 21301477
3907177 3919566
LK51908095 3948095 3907177 4933120
LK92477792 3907792 Pre 1992, block# 3802265, 4.00mm (.16") between bores; Flange OD 5.23" Up to ESN 44706126
Up to ESN 21123436
Up to ESN 30417120
3907177 3919247
LK92479937 3919937 1992 & up, block# 3802408, 6.00mm (.24") between bores; Flange OD 5.15 ESN 44706127 to 45636465
ESN 21123437 to 21301476
3907177 3919247
