DC Iron Core Inductor Compatible for Inverter
This is DC Iron Core inductor, which is compatible for frequency inverter.
DC reactor that are specially designed for many series of frequency inverterFRNG/P, and more.
For example, with the working voltage of 200V, our HSL424-F01compatible for inverter FRN0.2G9S-2 For details about parameters of our compatible reactor to series of frequency converter.
FEATURES-USE A REACTOR
1 TO ADD LINE IMPENDENCE.
2 TO PROVIDE SOME LIGHT BUFFERING AGAINST LOW MAGNITUDE LINE SPIKES.
3 TO REDUCING HARMONICS.
4 TO COMPENSATING FOR A LOW INDUCTANCE MOTOR.
5 ONLY AS PART OF A FILTER FOR REFLECTED WAVE REDUCTION
CUSTOMER BENEFITS
1.HIGH HARMONIC STRESS RESISTANCE
2.VERY LOW LOSSES
3. LOW NOISE
4.LONG OPERATING LIFE EXPECTANCY
5.ENVIRONMENTALLY FRIENDLY

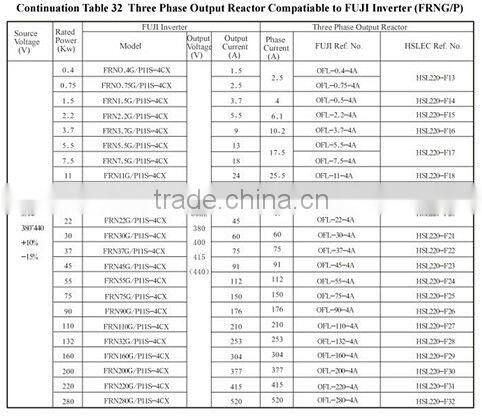

Technical parameter for your reference
PROTECTED BY WATER-REPELLENT CLOTH, SECURED AND PACKED IN WOODEN CASE
Delivery Time
10-30 Days Depending on Quantity Order
Service Conditions
1. Service Site: Indoor/Outdoor
2. Ambient Temp.:-40~+40 degree (or according to customer’s requirement)
3. Altitude: <=1000m (if it exceeding to 1000m, pls declare in order)
4. Max. Wind Speed: 35m/s
5. Relative Humidity :< =90%
6. Earthquake Resistant Capability: horizontal direction 0.3g vertical direction 0.15g (or by customer’s requirements)

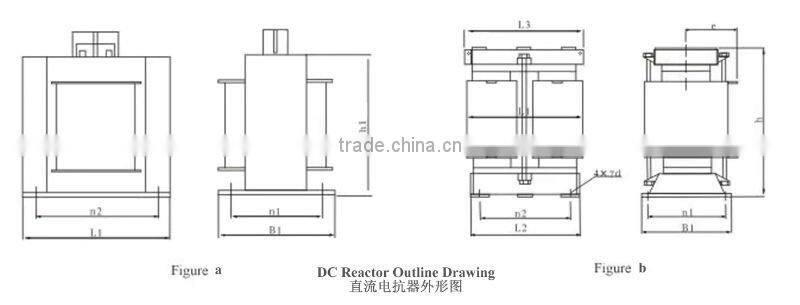

Drawing

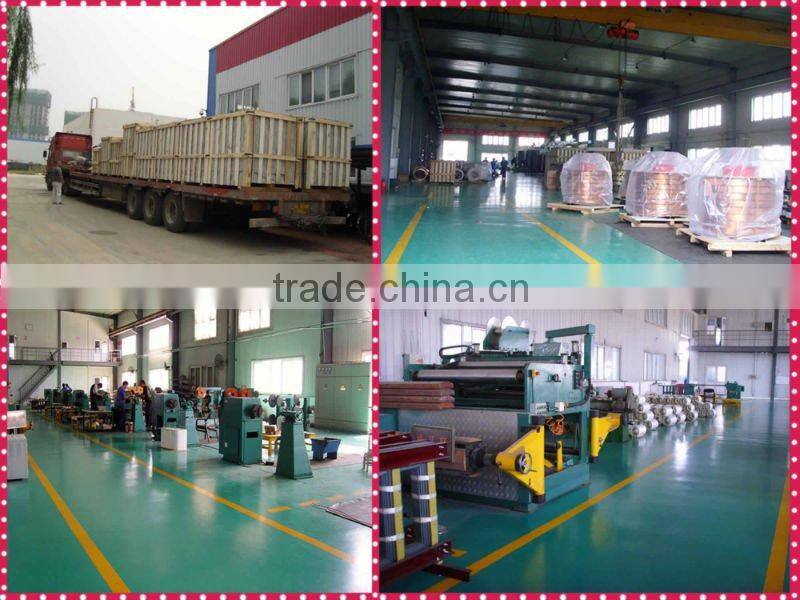

Workshop
1.Established in 1992, Huashenglong Electrical Equipment Company is an ISO9001:2008 certified low voltage inductor manufacturer in China.
2.We have one machining workshop, two wire winding workshops, complete special-use and
universal-use equipment, a complete set of inspection equipment, and large-scale winding
equipment.
3.With reliable quality and low prices, our dry type reactor and power transformer are sold well in
America, Turkey, India, Thailand, Saudi Arabia, Vietnam, Georgia, etc.
1.HSLEC offer a wide variety High Voltage and Low Voltage power products
2.including power transformers, distribution transformers,
3.air core reactors, iron core reactors and line reactors and output reactors compatible to variety
Frequecny Inverters and Governors.
4.In addition, we also can fulfill your OEM requests.
Certification

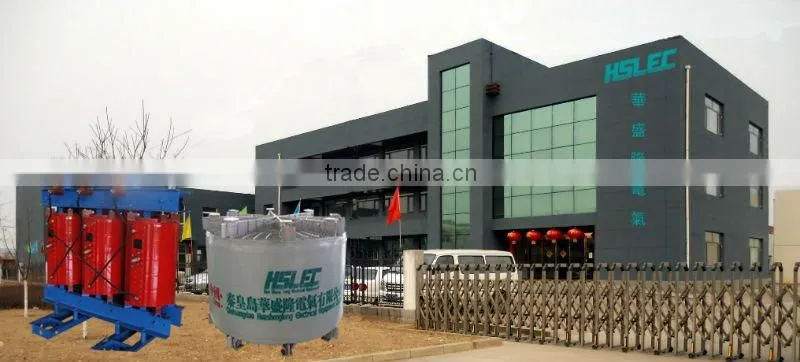

Company and workshop photos
