Three Phase Input Line Reactor compatible to (ACS143) Inverter
Welcome to Huashenglong low voltage reactor!
The line reactor is used to prevent harmonics mainly generated by power source of inverter. It helps to ensure long time running of equipment by absorbing power disturbances which may otherwise damage motors and drives. Hence, the low voltage reactor is able to increase drive reliability of equipment.
Please refer to the following data table for more details of the reactor and transformer compatible to DC speed governor and inverter of Sweden ABB Company.
| AC Voltage(V) | Motor Power(KW) |
Inverter Model |
Output Current(A) | Output Current(A) |
Three Phase Line Reactors |
||
| Phase Current(A) | ABB Ordering No. |
HSLEC Ordering No. |
|||||
| 3AC 380~480 | 0.37 | ACS143-K75-3 | 2 | 1.2 | 4 | ACS-CHK-A3 | HSL119-B101 |
| 0.55 | ACS143-1K1-3 | 2.8 | 1.7 | ||||
| 0.75 | ACS143-1K6-3 | 3.6 | 1 | ||||
| 1.1 | ACS143-2K1-3 | 4.8 | 2.8 | 8 | ACS-CHK-B3 | HSL119-B102 | |
| 1.5 | ACS143-2K7-3 | 5.8 | 3.6 | ||||
| 2.2 | ACS143-4K1-3 | 7.9 | 4.9 | 14 | ACS-CHK-C3 | HSL119-B103 | |
| 3 | ACS401-0004-3× | 4.7 | 4.9 |
In set DC Reactors |
|||
| 4 | ACS401-0005-3× | 6.2 | 6.6 | ||||
| 5.5 | ACS401-0006-3× | 8.8 | 8.8 | ||||
| 7.5 | ACS401-0009-3× | 11.1 | 11.6 | ||||
| 11 | ACS401-0011-3× | 14.8 | 15.3 | ||||
| 15 | ACS401-0016-3× | 21.5 | 23 | ||||
| 18.5 | ACS401-0020-3× | 29 | 30 | ||||
| 22 | ACS401-0025-3× | 35 | 38 | ||||
| 30 | ACS401-0030-3× | 41 | 44 | ||||
| 37 | ACS401-0041-3× | 56 | 59 | ||||
Feature
1. The line reactor greatly reduces catastrophic drive failures due to transient over-voltage.
2. The low voltage reactor decreases nuisance over-voltage trips due to line transients, drastically:
(1)Utility power factor correction
(2)Switching large AC motor loads
(3)Switching large transformers
(4)High AC line conditions
3. Line-side fuse operation during unsymmetrical voltage sags is reduced to the minimum:
(1)Utility system line-to-ground faults
(2)Unbalanced phase currents
4. The line reactor can also prevent harmonics and effectively improve power factor.
Service Conditions:
1. Service Site: Indoor or Outdoor
2. Ambient Temp.:-40~40 Degree (Or According To Customer's Requirement)
3. Altitude: <=10000m (If It Exceeding To 1000m, Pleas Declare In Order).
4. Max. Wind Speed: 35m/S
5. Relative Humidity: <=90%
6. Earthquake Resistant Capability: Horizontal Direction 0.3g Verticle Direction0.15g (Or By Customer's Requirements)

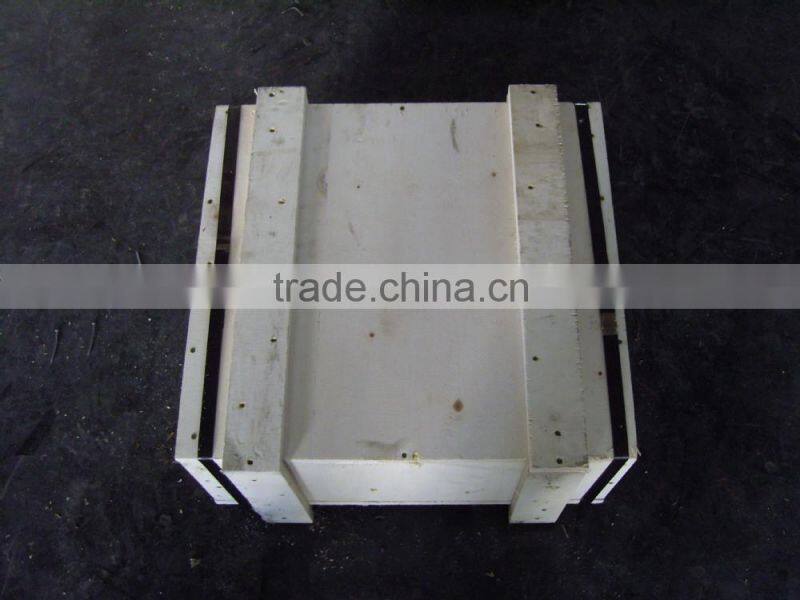

Standard export wooden packing.
Delivery Time
4-30 days after receive the payment
We are a Dry Type Transformer and Reactor Manufacturer in China. Our company was founded in 1992, short name as HSLEC. Over the past 18 years, we have maintained our commitment to make quality and affordable power transformer and dry type choke. We do this by using only superior raw materials from reliable suppliers. For instance, we purchase silicone steel plates, which are used in making our transformer cores, from top ranked steel companies, like Japan Nippon Steel Corporation and China WISCO. Our copper wire comes from China lco Luoyang Copper Company which is influential in China non-ferrous metals fabrication industry. We conduct inspections on all of our incoming materials, and we have a complete set of production and testing equipment, including large coil winding machines.
HSLEC primary products are Transformers and Reactors. Reactors which can be divided into high-voltage and low-voltage reactors two categories: High Voltage Reactors including air core series reactors, air core shunt reactors, air core filter reactors, air core currrent limiting reactors and other type iron core reactors; Low voltage reactors including line and output reactors compatible to SIEMENS,EMERSON,FUJI,LG and other brands frequency inverters.
Certificate

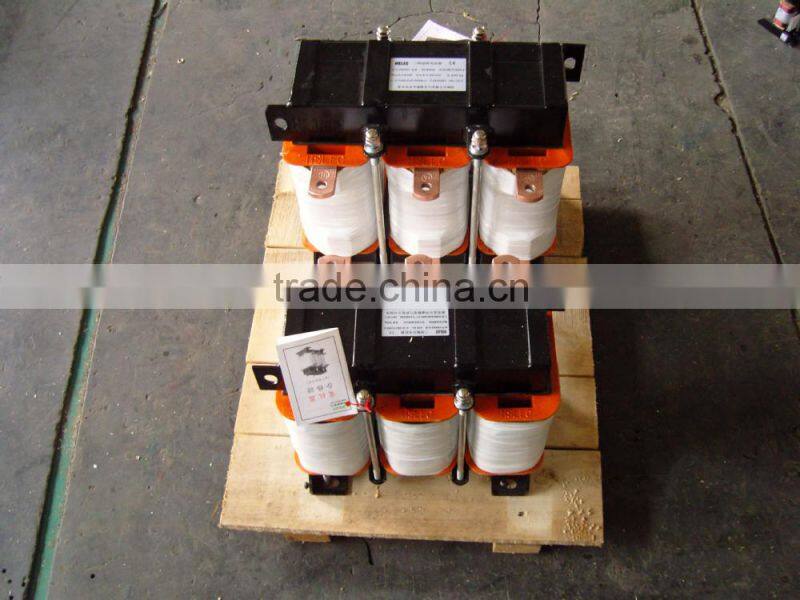

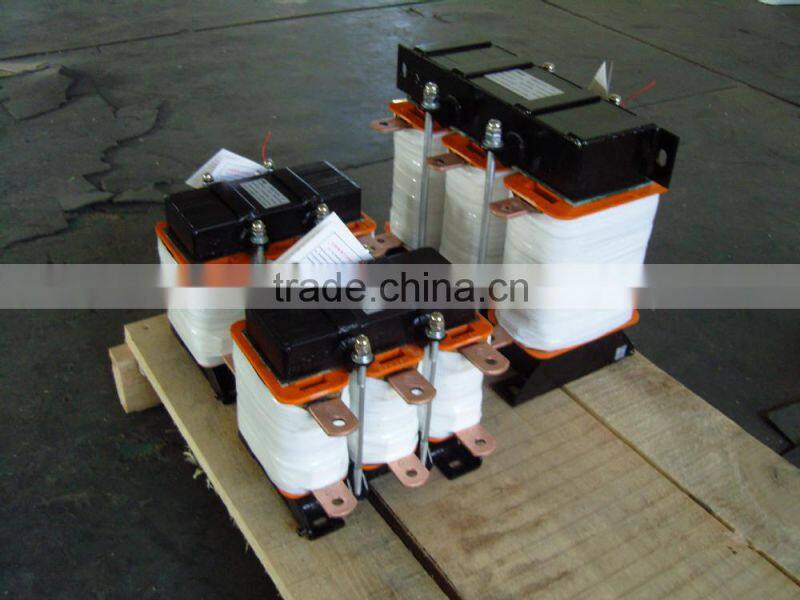

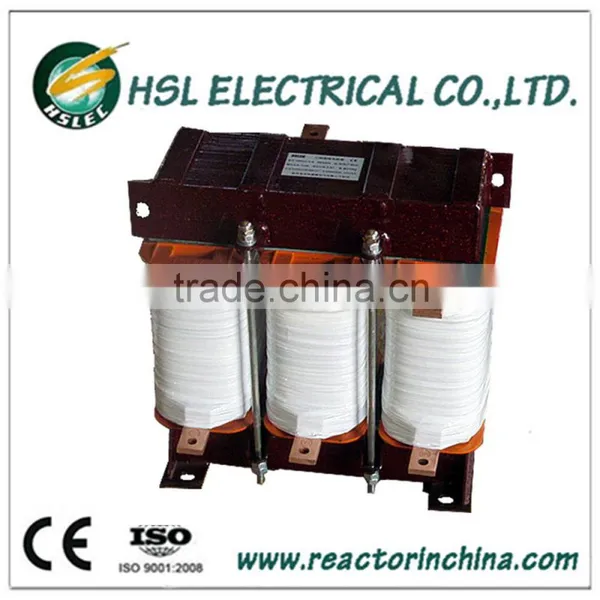

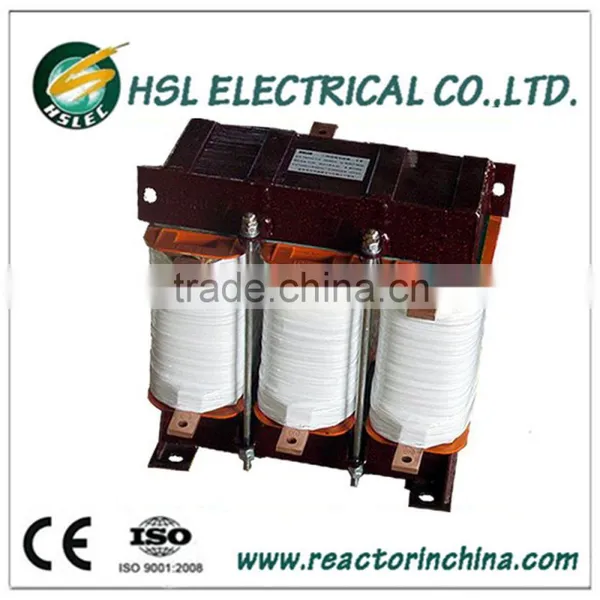

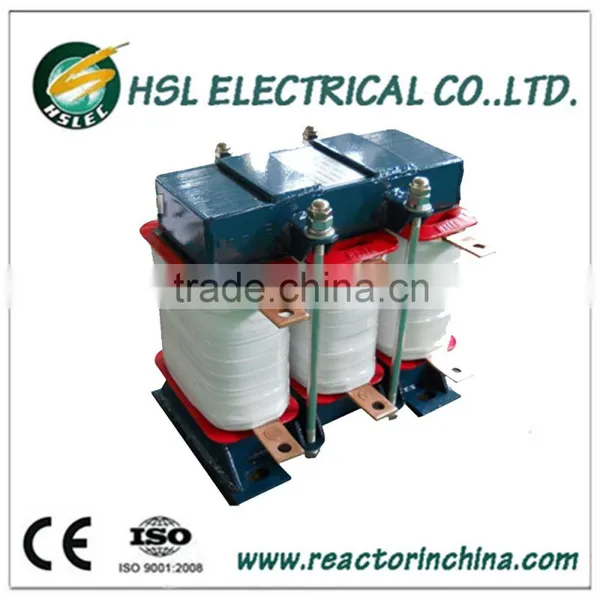

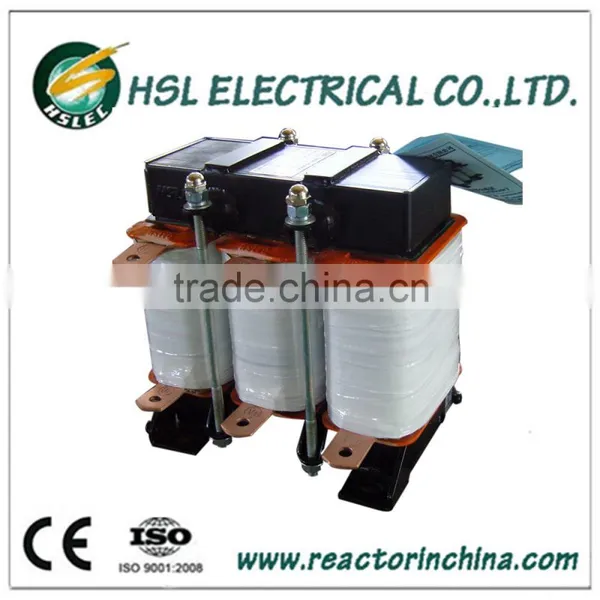

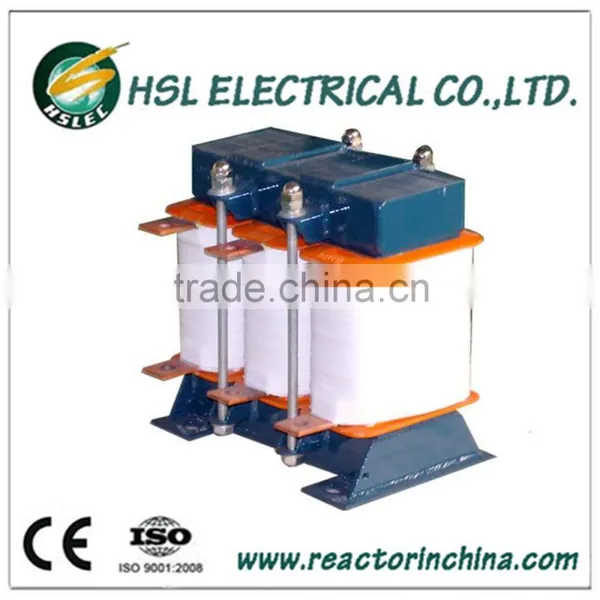

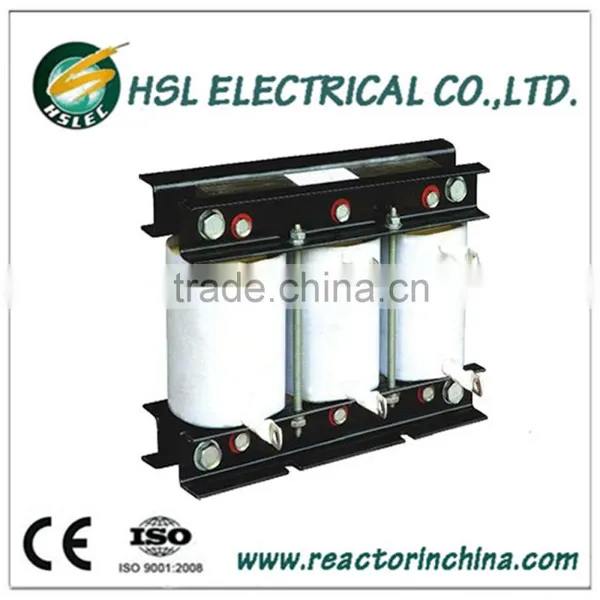

Product photos

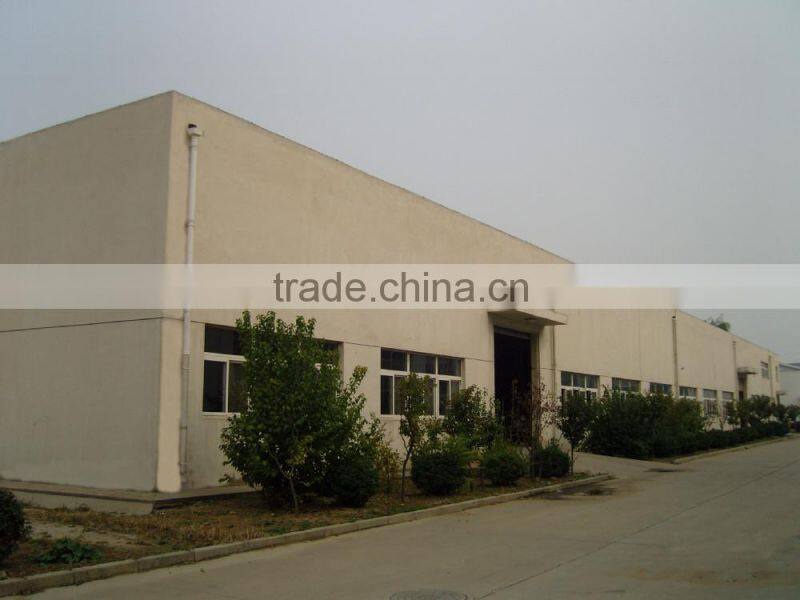

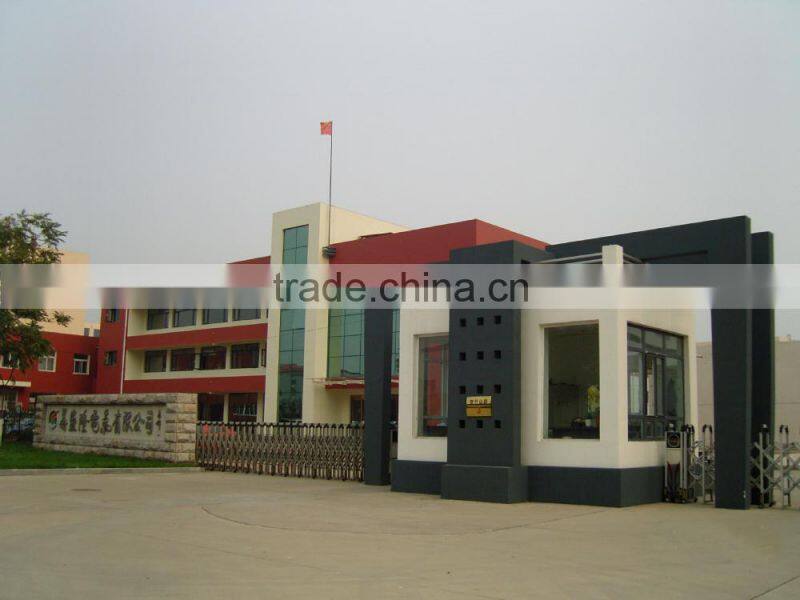

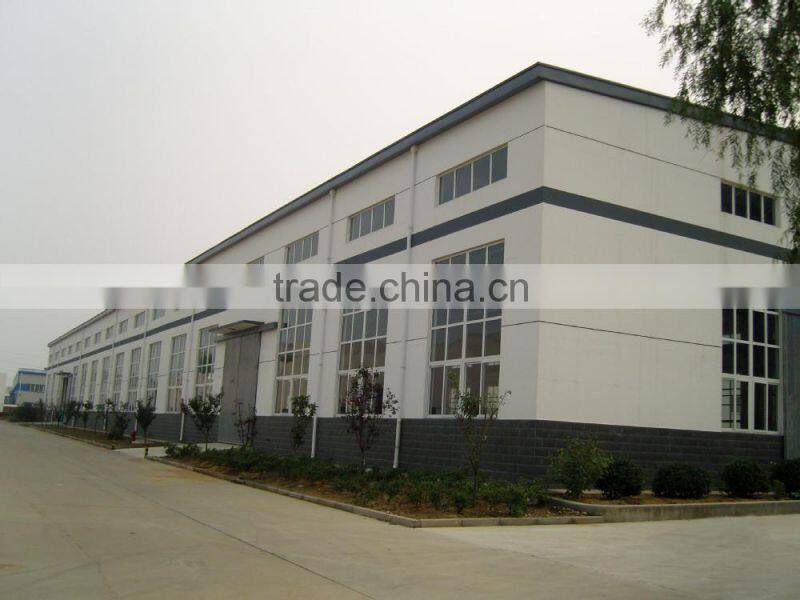

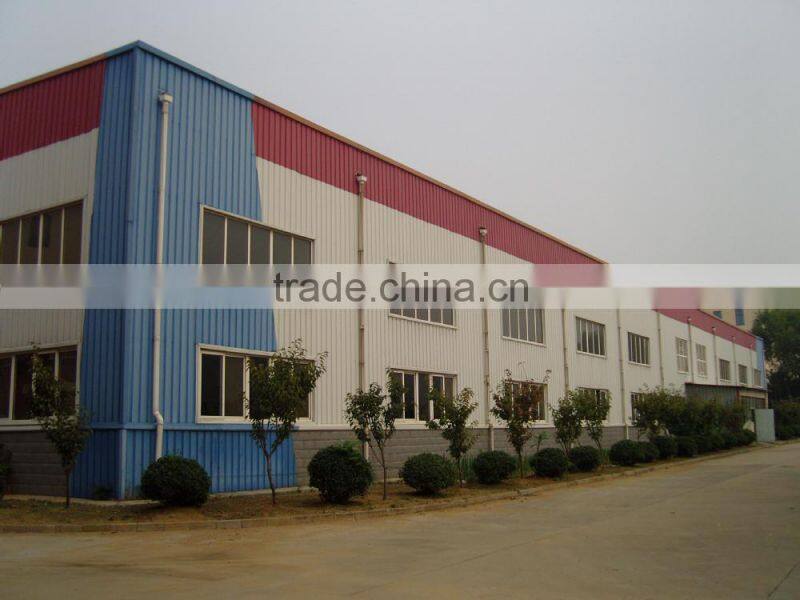

Company and workshop photos
