Specifications
Line and Output Reactor compatible to ALSTOM MD2000(18.5-200KW) Inverter1. Power Voltage:3AC 400-415
2. Frequency:50/60Hz
Line and Output Reactor compatible to ALSTOM MD2000(18.5-200KW) Inverter

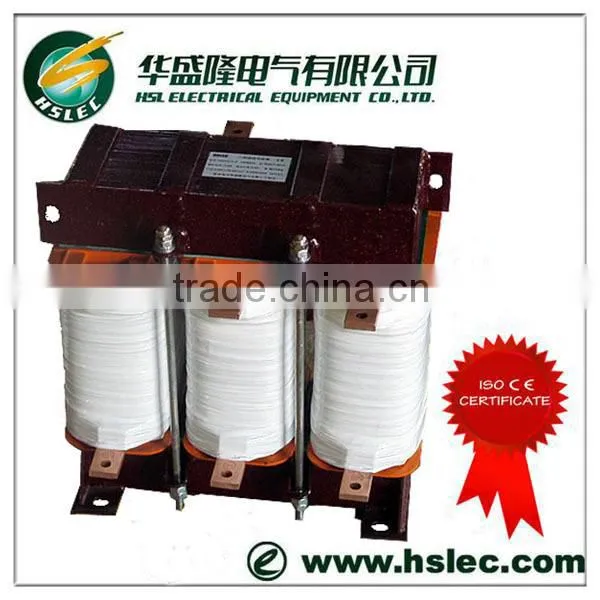

The line reactor, output reactor shown here, are compatible to France ALSTOM frequency DC speed governor. We
provide a variety of line reactor and output reactor to suit many series, such as Mv1000, Md2000, and WNTC series ALSTOM frequency DC speed governor. Operating
at the same source voltage of 3AC380~480V, the HSL119AL21 three phase line reactor is compatible with 29203347 ALSTOM transformer, while HSL220-AL01 three phase output reactor is used to work together with 29203376 ALSTOM transformer.
We also have reactor compatible to ALSTOM transformer, with the source voltage of 3AC400~415V.
Technical Parameters:
|
Source Voltage V |
Power V |
ALSTOM Transformers |
Three Phase Line Reactors |
Three Phase Output Reactors |
||||||
|
Model |
Input Current A |
Output Current A |
Current A |
ALSTOM | HSLEC Ordering No. |
Current A |
ALSTOM | HSLEC Ordering No. |
||
| 3AC 400~415 | 18.5 | 22/27-400 | 43 | 40 | 46 | 29144852 | HSL119-AL201 | 80 | 29153811 | HSL220-AL201 |
| 22 | 27/33-400 | 51 | 48 | 55 | 29144853 | HSL119-AL202 | ||||
| 30 | 33/43-400 | 65 | 62 | 72 | 29144854 | HSL119-AL203 | ||||
| 37 | 43/54-400 | 82 | 78 | 90 | 29144855 | HSL119-AL204 | ||||
| 45 | 54/62-400 | 95 | 90 | 105 | 29144856 | HSL119-AL205 | 180 | 29153812 | HSL220-AL202 | |
| 55 | 62/78-400 | 119 | 113 | 130 | 29144857 | HSL119-AL206 | ||||
| 75 | 78/102-400 | 154 | 147 | 170 | 29144858 | HSL119-AL207 | ||||
| 90 | 102/122-400 | 184 | 176 | 205 | 29144859 | HSL119-AL208 | ||||
| 110 | 122/150-400 | 226 | 216 | 250 | 29144860 | HSL119-AL209 | 260 | 29153813 | HSL220-AL203 | |
| 132 | 150/178-400 | 268 | 257 | 300 | 29144179 | HSL119-AL210 | ||||
| 160 | 178/275-400 | 340 | 325 | 380 | 29144180 | HSL119-AL211 | 415 | 29153814 | HSL220-AL204 | |
| 200 | 225/275-400 | 450 | 396 | 460 | 29144195 | HSL119-AL212 | ||||
Note:For more information,Please contact us and visit our website.
Features-Use A Reactor:
1 To add line impendence.
2 To provide some light buffering against low magnitude line spikes.
3 To reducing harmonics.
4 To compensating for a low inductance motor.
5 Only as part of a filter for reflected wave reduction
Customer Benefits:
1.High harmonic stress resistance
2.Very low losses
3.Low noise
4.Long operating life expectancy
Service Conditions:
1.Service site: indoor or outdoor
2.Ambient temp.:-40~40 degree( or according to customer's requirement)
3.Altitude: <=10000m( if it exceeding to 1000m, pls declare in order).
4.Max. wind speed: 35m/s
5.Relative humidity: <=90%
6.Earthquake resistant capability: horizontal direction 0.3g verticle direction0.15g (or by customer's requirements)
The Basic Program Of Testing Includes
Some or all of the following tests:
Routine tests
Impulse tests
Thermal current calculation
Mechanical strength test
Impedance and loss test
Temperature rise test
Sound level test
Seismic analysis
Protected by water-repellent cloth, secured and packed in wooden case
Delivery Time
4-30 days depending on quantity ordered
