Specifications
Output Inductors using for INVT P/G9 Inverter1.Source voltage:3AC380V
2.Motor power:30~315KW
3.Output current:60~600A

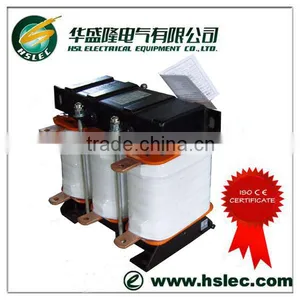

Output Inductors using for INVT P/G9 Inverter
The load side inverter output filter reactor,which was adopted by the exchange,its role is to compensate along wire capacitance charging current.Restrict wire(cable) capacitance caused by applied voltage on the motor winding up rate.
Protected by water-repellent cloth, secured and packed inWooden case
Service Conditions
1. Service Site: Indoor/Outdoor
2. Ambient Temp.:-40~+40 degree (or according to customer’s requirement)
3. Altitude: <=1000m (if it exceeding to 1000m, pls declare in order)
4. Max. Wind Speed: 35m/s
5. Relative Humidity :< =90%
6. Earthquake Resistant Capability: horizontal direction 0.3g vertical direction 0.15g (or by customer’s requirements
The basic program of testing includes some or all of the following tests
Routine Tests
Impulse Tests
Thermal Current Calculation
Mechanical Strength Test
Impedance and Loss Test
Temperature Rise Test
Sound Level Test
Seismic Analysis
DATA REQUIRED WITH ORDER OR FOR BID PURPOSE
1.System Voltage (kV)
2.Frequency (Hz)
3.Basic Impulse Level (kV)
4.Reactance/Inductance (Ohms/Microhenries)
5.Continuous Current (A)
6.Short Circuit Levels (kA) - Time Duration (Sec)
7.Fundamental/Harmonic FrequencyLevels(Hz)
8.Q Required for Filter Reactors
9.Insulators supplied or not supplied and TR No. or type to be used
10.Vertical or Horizontal Mounting
11.Three phase side by side or vertical stack mounting
12.Terminal configuration
13.Dimensional Limitations
14.Number of Units
