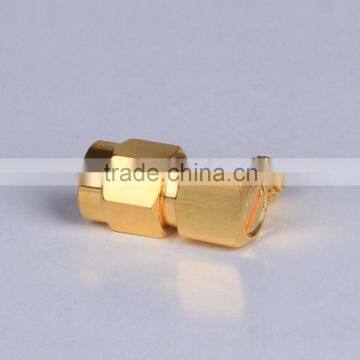

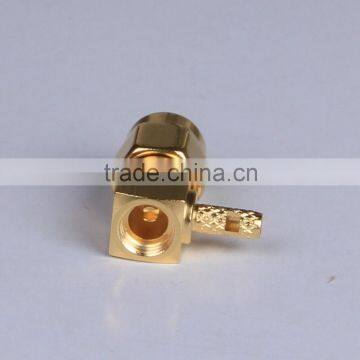

Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > Right Angle 90 Degree High Quality Sma Type Connector
US$ 0.1 - 0.6
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SH-Link
Model Number:
SMA-C-JW1.5
Payment & Shipping
Payment Methods:
Port of Shipment:
Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RF SMA 4 Holes Bulkhead Panel Mount ConnectorUS$ 0.1 - 0.9MOQ: 10 Pieces -
RP SMA Plug Rg213 Cable Sma Wire Crimp ConnectorsUS$ 0.1 - 1MOQ: 1 Piece
-
RF Coaxial SMA Connector Jack Female Straight 4 Holes for PCB Edge Mount ConnectorUS$ 0.1 - 1MOQ: 100 Pieces
-
SMA Male 90 Degree 5D-FB LMR300 Cable ConnectorUS$ 0.1 - 1MOQ: 100 Pieces
-
RF Coaxial Mini SMA Connector With Female S/T Jack and 2-hole Panel SQ Flange for Panel Mount ConnectorUS$ 0.1 - 0.6MOQ: 10 Pieces
Place of Origin
Guangdong, China
Brand Name
SH-Link
Model Number
SMA-C-JW1.5
Type
SMA
Application
RF
Gender
Other, Male, male
Specifications
1.Type:SMA
2.Socket:beryllium-copper/gold plated
Type SMA is one kind of RF coaxial connectors that is widely applied, with small-sized thread coupling, characteristic impedance is fifty Ohm. The characteristic of connectors is in wide frequency range, excellent performance, high reliability. They are used in connection with RF cable or micro-strip line in RF circuit of the WLAN system, controlled program, microwave equipment and the digital communication system. The frequency can be up to 18GHz by using semi-rigid or semi-flex cable.
| MAJOR TECHNICAL CHARACTERISTICS | |
| Temperature Range | -55~ +155°C (PE Cable -40~ +85°C) |
| Vibration | 98m/S2 (10~2000Hz) 10g |
| Impedance | 50Ω |
| Frequency range | DC~12.4GHz(Semi-Rigled Cable DC-18GHz) |
| Working Voltage | 335V r.m.s at sea level |
| Withstanding voltage | 1000V r.m.s at sea level |
| Contact resistance | Center contact<=3m Ω Coter contact<=2.5m Ω |
| Insulation resistance | >=5000MΩ |
| Center conductor retentin force | >=0.28N |
| Coupling nut retentin force | >=180N |
| Insertin loss | <=0.15 dB/6GHz |
| Voltage Standing Wave Ratio | Straight flexible cable <=1.10+0.02f semi-rigid cable <=1.07+0.018f Right Angle flexible cabl <=1.20+0.03f semi-rigid cable <=1.17+0.02f |
| Durability(mating) | >=500 times (cycles) |
| MATERIAL & PLATING | ||
| Body | brass | gold plated |
| pin contact | brass | gold plated |
| socket contact | beryllium-copper | gold plated |
| resilient contact | beryllium-copper | gold plated |
| insulator | PTFE | |
| crimp ferrule | copper alloy | nickel or gold plated |
| o-ring sealing | 6146 silicone rubber | |
