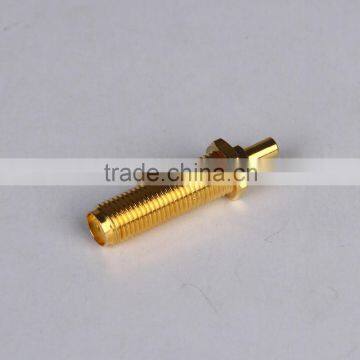

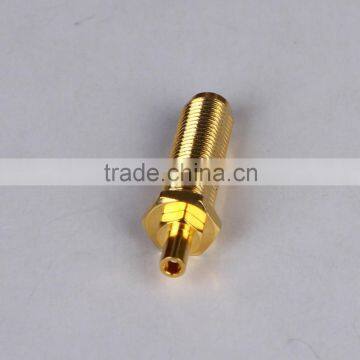

SMA,SMA Series Female Crimp RG-174/U Type and RF Application Sma Female Connector

Specifications:

1) Temperature range: -55 - +155°C

2) Vibration: 98m/s2 (10 - 2000Hz)10g

3) Impedance: 50Ω

4) Frequency range: DC -12.4GHz(Semi-Rigled Cable DC-18GHz)

5) Working voltage: 335V r.m.s

6) Contact resistance:

   a) Center contact: ≤3mΩ

   b) Outer contact: ≤2.5mΩ

7) Insulation resistance: ≥5,000mΩ

8) VSWR:

   a) Straight: ≤1.10+0.02f;≤1.07+0.018f

   b) Right angle: ≤ 1.20+0.03f; ≤ 1.17+0.02f

9) Durability (mating): ≥500 times

Applicable Standards:

1) IEC 60169-15

2) MIL-C-39012

3) CECC 22110

1. Pure brass material ,Teflon insulation, high quality with competitive price , quick delivery time.

2.CNC machines ,advanced test equipment
3.All products are suit for ROHS.
4.Military GJB certificate,ISO9001 certificate
