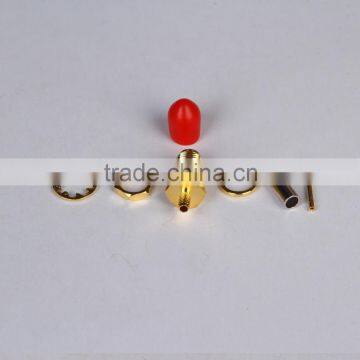

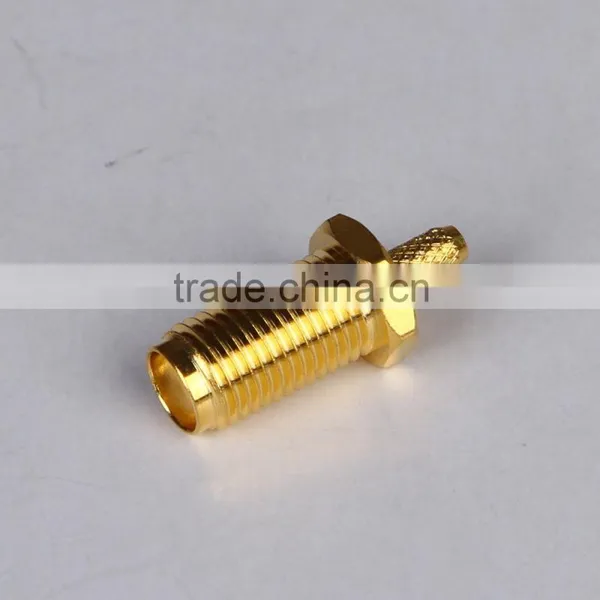

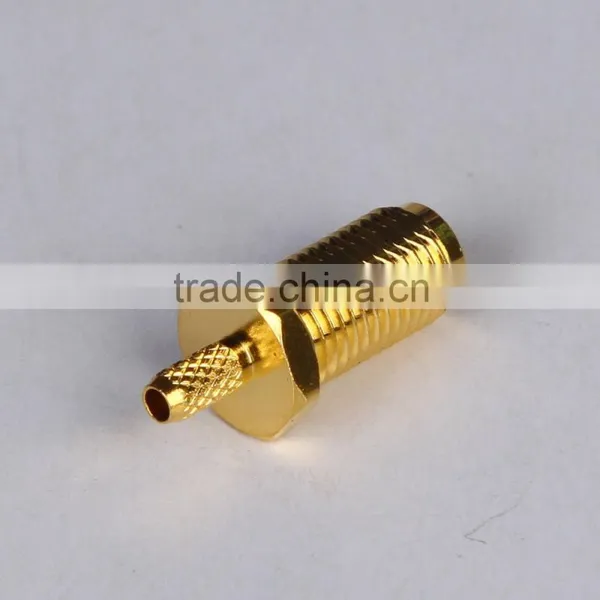

Help CenterRPSMA Coaxial Connector Rg316,terminal Type
Related Products
-
RG 174 316 SMA Solder Jack Bulkhead Connector for RF AplicationUS$ 0.1 - 0.9MOQ: 100 Pieces -
Reverse Polarity SMA Male Crimp Connector - RG58, RG141 & LMR-195US$ 0.5 - 0.9MOQ: 100 Pieces
-
Right Angle Sma rf Double Male Coaxial ConnectorUS$ 0.5 - 0.8MOQ: 1 Piece
-
SMA Plug Connector Crimp LMR300 to Sma Male to Sma MaleUS$ 0.1 - 1MOQ: 1 Piece
-
Female Gender and PCB Application Sma Female ConnectorUS$ 0.5 - 0.8MOQ: 100 Pieces
Description
According to the request of customer, the reverse polarity connectors produced by our company is to distinguish with difference original series products.(for example SMA, TNC, BNC, etc). It can change the link firm, prevent mistakes. And diminish the systematic wastage. It has the same technical characteristic, standard same with the original series of products.
MAJOR TECHNICAL CHARACTERISTICS
Temperature Range -55 to 155°C
Vibration 98m/S2
Impedance 50Ω
Frequency Range DC to 12.4GHz(Semi-Rigid Cable DC-18GHz)
Working Voltage 335V r.m.s at sea level
Withstanding Voltage 1000V r.m.s at sea level
Contact Resistance
Center contact≤3mΩ,
Outer Contact≤2.5mΩ
Insulation Resistance ≥5000mΩ
Center conductor retention force ≥0.28n
Coupling nut retention force ≥180N
Insertion Loss ≤0.15db/6GHz
Voltage Standing Wave Ratio
Straight Flexible cable≤1.10+0.02f, Semi-rigid cable≤1.07+0.018f
Right angle Flexible cable≤1.20+0.03f, Semi-rigid cable≤1.17+0.02f
≥500cycles
MATRERIAL AND PLATING
Body: brass, gold plated
Pin Contact: brass, gold plated
Socket Contact: beryllium-copper, gold plated
Resilient Contact: beryllium-copper, gold plated
Insulator: PTFE
Crimp Ferrule: copper alloy, nickel or gold plated
O-ring Sealing: 6146 silicone rubber
APPLICABLE STANDARD
MIL-C-39012
CECC 22120
IEC 60169-15
