Specifications
1.Body: brass, nickel or gold plated
2.Center contacts: brass ,gold plated
3.Insulator: PTFE
4.ROSH

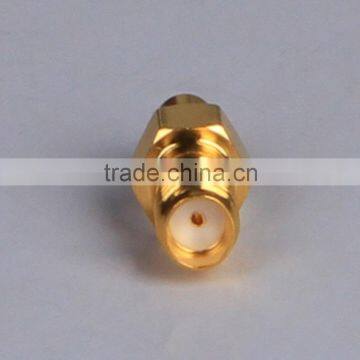

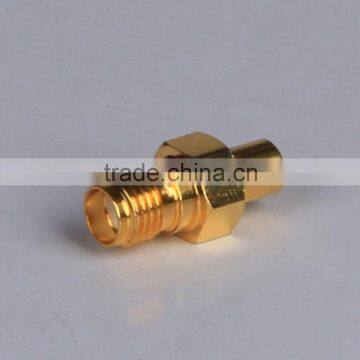

SMA connector is very popular RF adapter connector,which is a mini-coaxial connector .It is the best choice in the Miniature circuit .it can use on sundry occasions,measuring,mobile,communication and so on.
SMA key performance
Temperature range | -65~+165 | Insulation resistance | ≥5000MΩ | ||
Characteristic impedancd | 50Ω | Dielectric Withstanding voltage | 1000V(rms) | ||
Frequency range | With flexible cable | 0~12.4GHz | Contact resistance | Center conductor | ≤3mΩ |
With semi-rigid/flexible cable | 0~18GHz | Outer conductor | ≤2mΩ | ||
VSWR | With flexible cable | ≤1.15+0.02F | Durability | 500 Cycles | |
With semi-rigid/flexible cable | ≤1.05+0.02F | ||||
Material And Plating | |||||
Body | Brass , nickel or gold plated | ||||
Center contacts | Brass , gold plated | ||||
Insulators | PTFE | ||||
Gaskets | Silicon rubber | ||||
