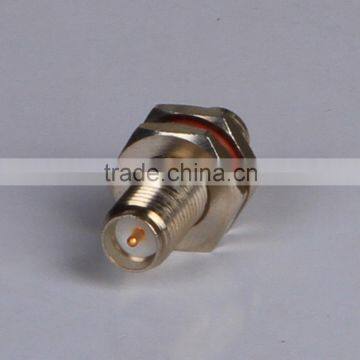

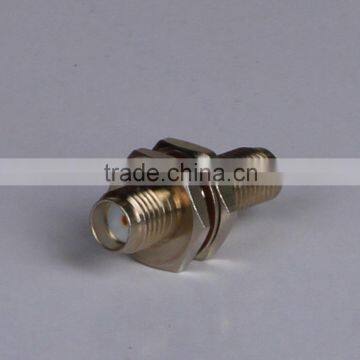

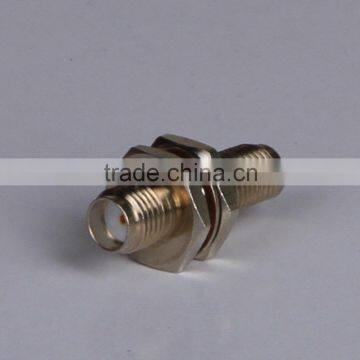

Help CenterSMA Female to RPSMA Male Waterproof Adapter Connector,bulkhead Adapter
Related Products
-
N Female to F Male Adapter,RF Connector,75ohmUS$ 1 - 9.99MOQ: 10 Pieces -
TNC/SMA-KK Adapter,sata Ethernet AdapterUS$ 0.1 - 1.5MOQ: 10 Pieces
-
Gold Plated MCX Female to SMA Female Coaxial AdapterUS$ 0.3 - 1.3MOQ: 1 Piece
-
BNC/UHF-50KJ Inter-type Socket Adapter,RF ConnectorUS$ 0.80 - 0.80MOQ: 100 Pieces
-
rf Adapter Straight Female Bnc to Tnc Coaxial ConnectorUS$ 0.1 - 1MOQ: 100 Pieces
SPECIFICATION
Adaptor is the basic product that used in the connection between the instrument cables with different interface.These are two kinds of them:within-type adaptor and inter-type adaptor.It has the same technical special characteristic with same class product.Within-type adaptor is listed in the catalogue of that product.Our company designs and produces various adaptors with all kinds of specification.They have wide frequency range and low VSWR characteristics.Welcome to visit and choose.
MAJOR TECHNICAL CHARACTERISTICS
Temperature Range | -55~+155°C(PE Cable -40~+85°C) |
Vibration | 100m/S²(10~500Hz)10g |
Impedance | 50Ω |
Frequency Range | DC~11GHz |
Working Voltage | 1000V r.m.s at sea level |
Withstanding Voltage | 2500V r.m.s at sea level |
Contact resistance | Center Contact ≤1mΩ Outer Contact ≤1mΩ |
Insulation resistance | ≥5000MΩ |
Center conductor retention force | ≥0.56N |
Coupling nut retention force | ≤450N |
Insertion Loss | ≤0.24dB/6GHz |
Voltage Standing Wave Ratio | Straight ≤1.15+6GHz Right angle ≤1.25+6GHz
|
Durability(mating) | ≥500times(cycles) |
