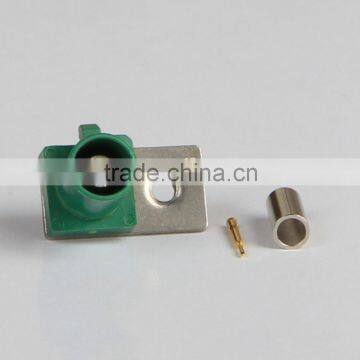

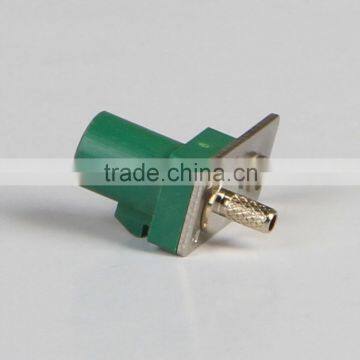

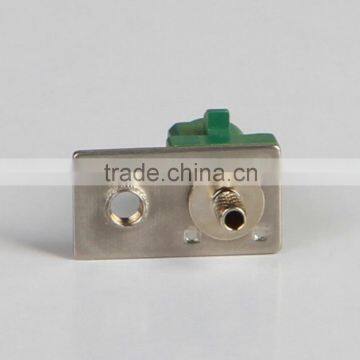

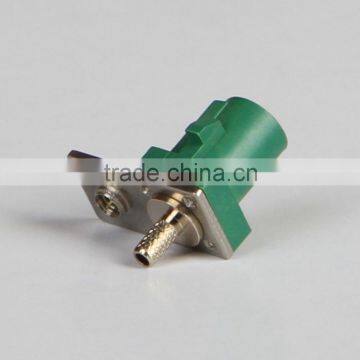

Car Connector Fakra E Type Automotive Connector Sumitomo
- Hongkong
- Credit Card
You May Like
-
RF SMB Connector, Female FAKRA Connector for Cars
-
50 Ohms C Type Blue Male FAKRA Connector With Single Flange Made in China for Cars
-
FAKRA Connector for Car Radio & Video, Male Cable Connectors With Flange
-
50 Ohms China Supply Long Male Gender FAKRA Cable Coaxial Honda Connector
-
RF SMB Plug, Female, Socket Contact Connector
-
RF Industries Price FME Male Connector Crimp RG58/U
Product Details
| Place of Origin | Guangdong, China | Brand Name | SH-Link | |

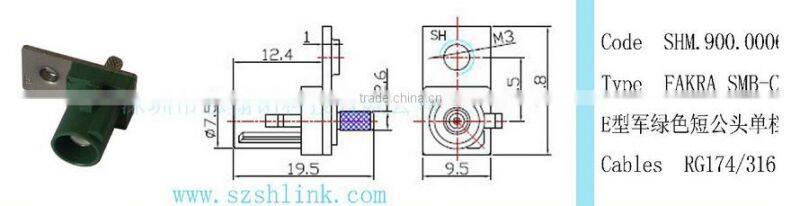

| Model Number | SHM9000006-3E | Type | Other, fakra | |
| Application | Automotive | Gender | Male |
Product Description
Major characteristics:
Double-locked, fool-proofing assembly with the color and the structure
The connector is be protected by the cap .
Easy to assembly
Many difference between the connector and the cap.
• The product technical characteristics:
Body: Brass, Ni-plated
Socket: beryllium-copper, Gold-plated
Pin contact: Brass
Insulator: PTFE
Crimp ferrule: brass, Ni-plated
O-ring: beryllium-copper
Shell: PA66+30%GF
• Technical characteristics
Impedance: 50Ω
Frequency Range: 4GHz
Withstanding Voltage: 1000V(RMS)
Contact resistance:
Center contact: ≤ 20m
Outer contact: ≤10m
Insulation: ≥1,000MΩ
VSWR: DC - 2GHz<1.2
• Mechanical characteristics:
Assembly: locked
Durability: ≥ 500 cycles
Temperature: - 40 - +85°C
• The aim of our company is to provide you outstanding quality, fast delivery, reasonable price, excellent after-sales.
• Please contact us for more details.
QQ:2859709271
WECHAT:Y13659767793
MP:+86 13659767793
