Polyethylene plastic pipe fittings
- 50000 Piece / Pieces per Month
- SHANGHAI
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | BADA | Model Number: | HDPE Pipe |
Material: | PE | Specification: | 20mm-1400mm | Length: | 12m |
Thickness: | 2mm | Standard: | CE |
Product Description

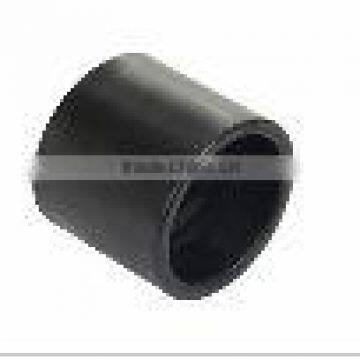

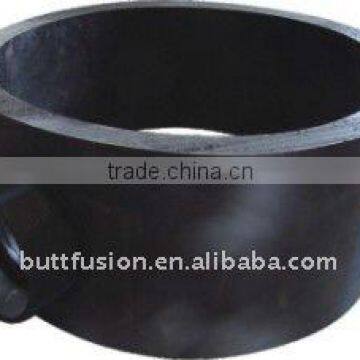

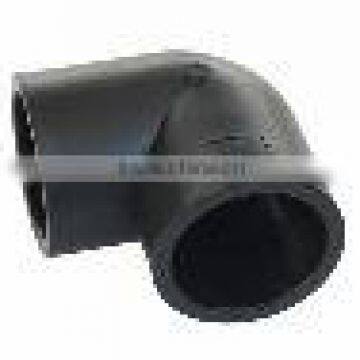

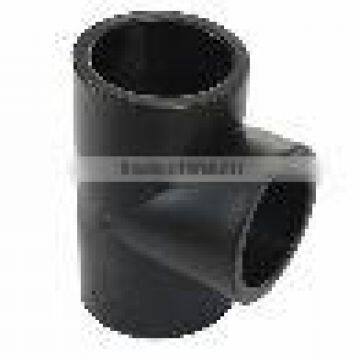

HDPE PIPE FITTINGS
PE,PP PIPE FITTINGS
Specifications
HDPE fittings are made of HDPE pipe by means of thermo-welding technology. the diameter range is 30mm-1600mm.
HDPE fittings are used to make a connection between two pipes or between a pipe and any type of fitting or equipment component. HDPE are also used for dismantling piping systems, temporary or mobile installations, transitions between dissimilar materials
Water supply and fuel gas transport. the system for drainage and sewage and many others whose tempratue does not exceed 40 degree
Temerature for hot-melting connection is 200-210 degree, when apply this method, only hot melting butt equipment is required, and the procedures are as followed:
1. Put the pipe on the clamp of welder, clamp tightly
2. Clean the connection end of pipr, mill the joint face smooth
3. Align the two butt parts, their end face misplacement value cannot be beyond 10% of tje wall thickness
4. Heat them on heating plate
5. Finished heating, withdraw the heating plates
6. Joint the two heating surface immediately, add pressure to required melting value, dwell and cooling
Product Description:
SHDS160 Manual thermo fusion joint welding machine , Shengda/BADA SHDS160/50 Manul butt fusion welding machine for PE pipes, SHDS160 Manual butt fusion machine,manual butt fusion welding machine,HDPE pipe manual butt fusion
BADA SHDS160 Manual butt fusion welding machine for weld plastic pipes from 50 to 160mm
Application and features :
Manual butt fusion welding machine suitable for welding of plastic pipes and / or fittings made of PE, PP, and PVDF can be operated in any complex work condition.

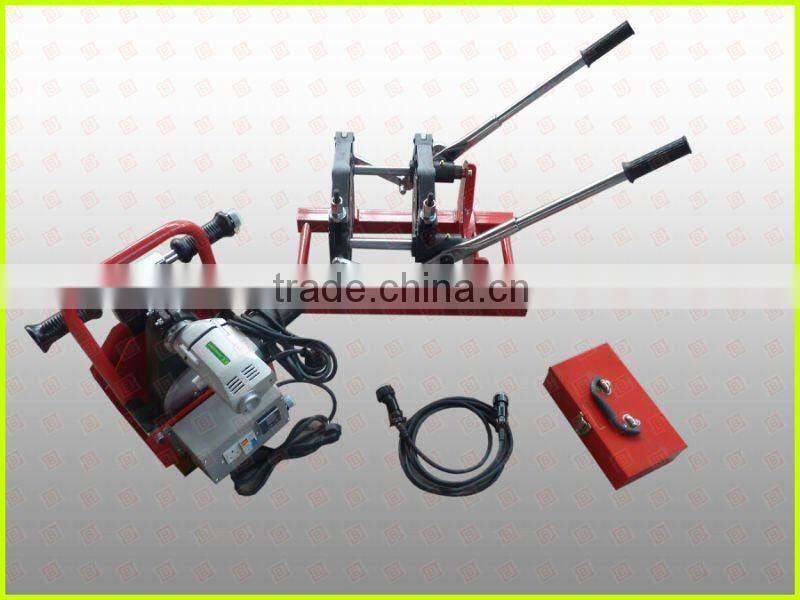

Consists of basic frame, planing tool, heating plate and support for planing tool and heating plate
Removable PTFE coated heating plate with separate temperature control system
Electric planing tool
Be made of lightweight and high strength material; Simple structure, small and delicate, user friendly
Technical parameters:
Model: SHDS160
Pipe size (mm): 50,63,75,90,110,125,140,160
Heating plate max. temp.: 270 oC
Temp. deviation in surface (170~250 oC): ≤±10 oC
Working voltage: 220V, 50Hz
Heating plate power: 1.5 KW
Planing tool power: 0.7 KW
Total power: 2.2 KW
Weight: 57 KGS
Cases: 2 Plywood cases
Volumn: 0.31CBM

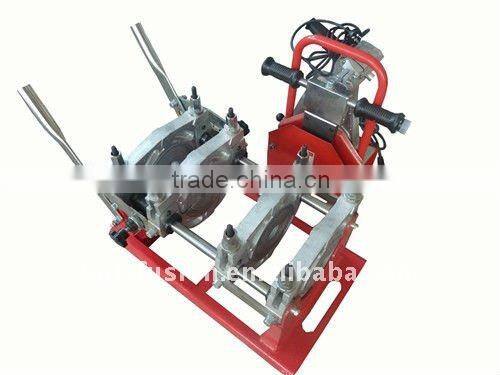

- Two circles, hand push
- Four circles, hand push

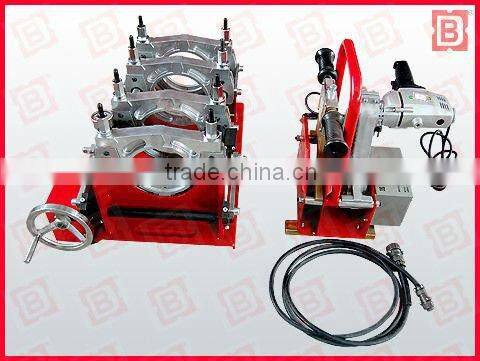

- Four circles, hand wheel
