Help CenterSHD160-315 Manual Butt Fusion Welding Machine for HDPE Pipe From Competitive Manufacturer ISO Approved
Related Products
-
SHD450 HDPE Pipes Welding Machinery ManufacturingUS$ 4,500 - 5,000MOQ: 1 Set -
SHD630 Hdpe Pipes Thermofusion MachineUS$ 5,500 - 6,500MOQ: 1 Set
-
SHD1000 Hdpe Butt Fusion Welding MachineUS$ 19,500 - 20,500MOQ: 1 Set
-
WPR1000 Data Logger for PE Pipe Butt Welding Machine With PrinterUS$ 2,500 - 2,550MOQ: 1 Set
-
SHD315 Plastic Pipe Welding Machine/Hdpe Pipe Welding MachineUS$ 1,695 - 2,465MOQ: 1 Set
SHD Plastic Pipe Hot Butt Welding Fusion Machinery ; Shengda/BADA SHD63-160 HDPE hydraulic welding machine from 63-160mm; PE Welding machine; Butt fusion welding machine; PE Welder
Application and features:
♦ Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF in a ditch in worksite or workshop

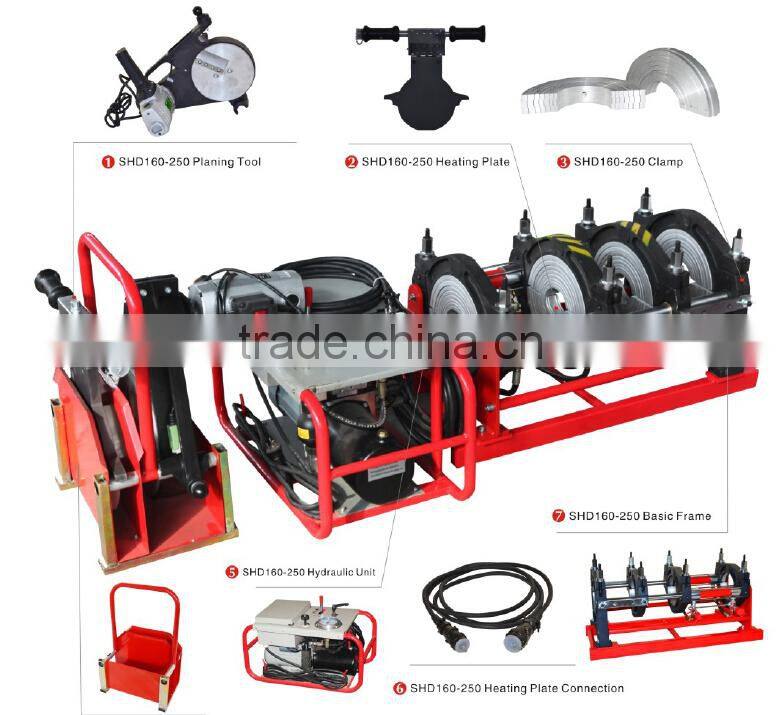

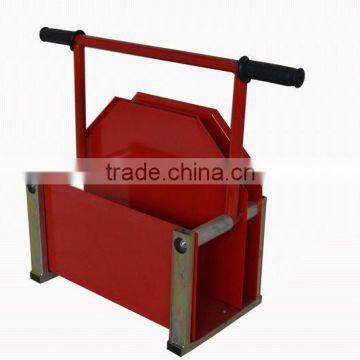

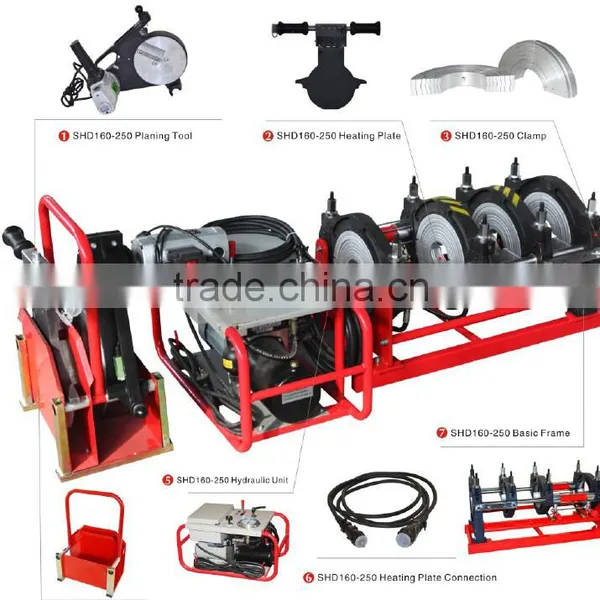

♦ Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional part

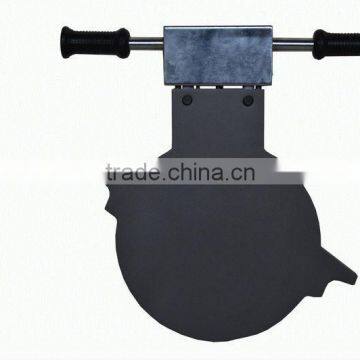

♦ Removable PTFE coated heating plate with high accurate temperature control system
♦ Electrical planing tool
♦ Be made of lightweight and high strength material; simple structure, small and delicate, user friendly
♦ Low starting pressure ensures reliable welding quality of small pipe
♦ Changeable welding position enables to weld various fittings more easily
♦ High accurate and shockproof pressure meter indicates clearer readings
♦ Separate two-channel timer records time in soaking and cooling phase
Optional parts:
Stub end device for short flange stub
Data logger
The main parameters:
Type |
SHD-160/63 |
SHD-250/90 |
SHD-315/90 |
Materials |
PE,PP,PVDF |
||
Max. range of diameter |
63-160mm |
90-250mm |
90-315mm |
Ambient temp. |
-5~45°C |
||
Power supply |
~220V±10 % |
||
Frequency |
50/60 Hz |
||
Total current |
16 A |
26 A |
28 A |
Total power |
3.35 KW |
4.85 KW |
5.35 KW |
Dielectric resistance |
>1MΩ |
||
Max. Pressure |
6 MPa |
||
Total section of cylinders |
6.26 cm2 |
10.98 cm2 |
20cm2 |
Volume of oil box |
3L |
||
Hydraulic oil |
40~50(kinematic viscosity)mm2/s, 40°C) |
||
Undesired sound |
80~85 dB |
||
Max. Temperature of heating plate |
270°C |
||
Difference in surface temperature of heating plate |
±5°C |
||
Total weight,kg |
114 |
137 |
200 |
Our company WUXI SHENGDA PLASTIC PIPES WELDING MACHINE CO., LTD is the leader manufacturer of butt fusion equipment in China. We occupy the 70% domestic market and export to more than 45 countries. We specialize in producing a complete range of international standard butt fusion equipment including field welding machine, workshop fitting machine, pipe saw, all the optional parts and tools required under the ISO9001 system and approved to CE standards by SGS.
In 2015, my company joined German ROTHENBERGER tools group, becoming one of the more than 50 companies under the first European big pipe tool production and sellers. And companies from the site moved to focus on economic development zone of jiangsu province - wuxi hudai industrial zone - joint road (north) 9 D building, with the German headquarters and subsidiaries throughout the world to work together, we will further development of domestic and international market.
