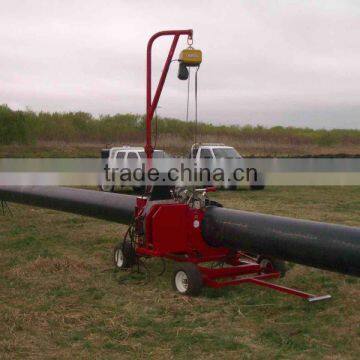

SHD1000 hydraulic PE pipe joint welding machine from 630mm to 1000mm;
Shengda/BADA SHD1000/630 HDPE hydraulic welding machine from 630-1000mm;
PE Welding machine; Butt fusion welding machine; PE Welder
Application and Features for butt fusion welding machine:
1. Consists of basic frame, hydraulic unit, planing tool, separate heating plate, support for planing tool & heating plate and optional parts
2. Removable PTFE coated heating plate with high accurate temperature control system
3. Electric planing tool with safety limit switch enables to start it only when it is locked in operation position
4. Made of lightweight and high strength material
5. Low starting pressure and high reliable seal structure
6. Changeable welding position brings more convenience while welding various fittings
7. Separate two-channel timer records times in soaking and cooling phases
8. High-accurate and shockproof pressure meter indicates clearer readings
9. Labor saving and high efficient crane is available to lift planing tool and heating plate
Technical parameters:
| Model | SHD1000/630 |
| Pipe size (mm) | 630,710,800,900,1000 |
| Heating plate max. temp. | 270 centigrade degrees |
| Temp. deviation in surface | less than ±7 centigrade degrees |
| Pressure adjustable ranges | 0~12MPa |
| Working voltage | 380V 50Hz |
| Heating plate power | 17.5KW |
| Planing tool power | 3KW |
| Hydraulic unit power | 3KW |
| Crane power | 0.5KW |
| Total power | 24KW |
| Weight | 2600KGS |
| Packing | 5 Plywood cases |
Option parts:
Stub end device for short flang
Data Logger
Trolley
WORKFLOW
These are our finished product:
After inspection the each parts of the machine is packed in plastic bags and then carefully packed in plywooden cases
Our exhibition in Shanghai and Gaungzhou
We have good after-sale service and we have a group of experienced engineers, available to help you solve any difficult problems!
Wuxi Shengda, your best and wise choise.

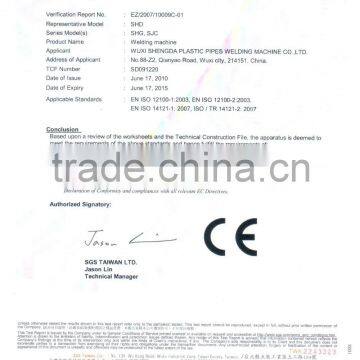

Our company WUXI SHENGDA PLASTIC PIPES WELDING MACHINE CO., LTD is the leader manufacturer of butt fusion equipment in China. We occupy the 70% domestic market and export to more than 45 countries. We specialize in producing a complete range of international standard butt fusion equipment including field welding machine, workshop fitting machine, pipe saw, all the optional parts and tools required under the ISO9001 system and approved to CE standards by SGS.
In 2015, my company joined German ROTHENBERGER tools group, becoming one of the more than 50 companies under the first European big pipe tool production and sellers. And companies from the site moved to focus on economic development zone of jiangsu province - wuxi hudai industrial zone - joint road (north) 9 D building, with the German headquarters and subsidiaries throughout the world to work together, we will further development of domestic and international market.
