Help CenterWuxi Shengda SHD450 HDPE Butt Fusion Welding Machine
Related Products
-
Shengda/BADA SHD450/200 HDPE Butt Fusion Machine With Welding Range 200-450mmNegotiableMOQ: 1 Set -
Plastic Pipe Butt Fusion Welding Machine SHD500/200NegotiableMOQ: 1 Set
-
Butt Fusion Machine SHD315NegotiableMOQ: 1 Set
-
Wuxi Shengda Butt Fusion Welding Machine SHD630/315NegotiableMOQ: 1 Set
-
Butt Fusion Machine SHD630/315 Suit for PE Pipes WeldingNegotiableMOQ: 1 Set
Product Description:
SHD450 Hdpe Pipes Thermofusion Machine , Butt fusion welding machine, Butt welding machine, Hydraulic butt welding machine, HDPE pipe welding machine
Application:
Hydraulic butt fusion welding machine is suitable for butt fusion welding of plastic pipes and fittings made of PE, PP, and PVDF in construction site or workshop.
Features:

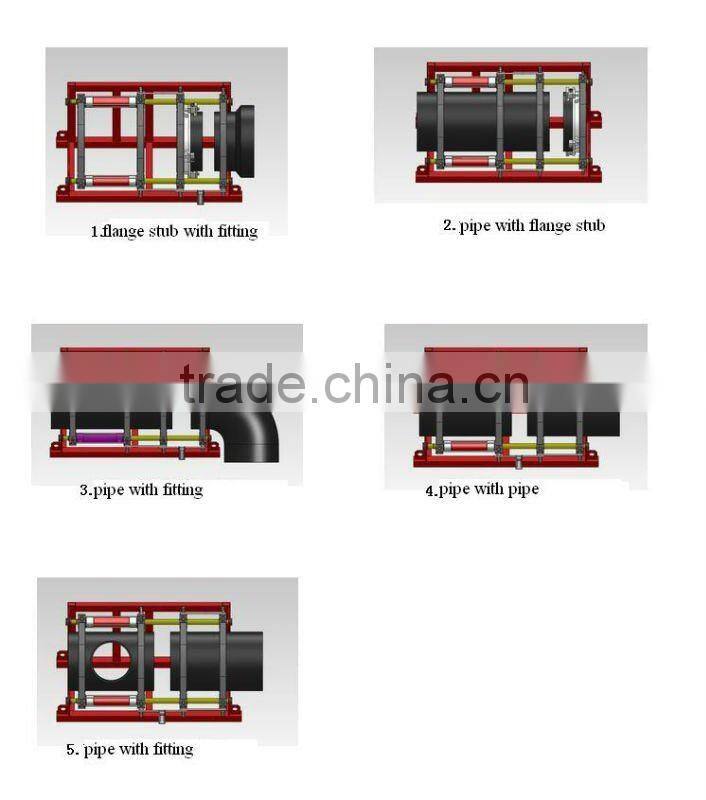

1. The machine body is equipped with four main clamps with the third clamp axially moved and adjusted.
2. Removable PTFE coated heater with separate temperature control system.
3. Electric facer with reversible double cutting edge blades.
4. Hydraulic unit provides welding machine with compressing power.
5. Be made of lightweight and high strength material; Simple structure and easy to operate.
6. Low starting pressure ensures reliable welding quality of small pipes.
7. Separate two-channel timer shows time in soaking and cooling phases.
8. High-accurate and shockproof pressure meter indicates clearer readings.
Technical specifications:
*Welding ranges: plastic pipes: 200mm-450mm
(200mm—225mm—250mm—280mm-315mm-355mm-400mm-450mm)
*Ranges of application: PE,PP and PVDF
*Working voltage: ~380V ±10%,50Hz
*Total power: 8.2 kW, including: planing tool:1.5 kW, heating plate:5.2 kW, hydraulic unit motor: 1.5kW
*Working voltage: ~415V ±10%,50Hz
*Total power: 9.2kW, including: planing tool:1.5 kW, heating plate:6.2 kW, hydraulic unit motor: 1.5 kW
*PTFE coated heating plate, adjustable knob for temperature control, difference in heating plate surface temperature ≤±5°.
*Environment temperature: -10° ~ 45° ;
*Electronic count-down timer for heating and cooling time ;

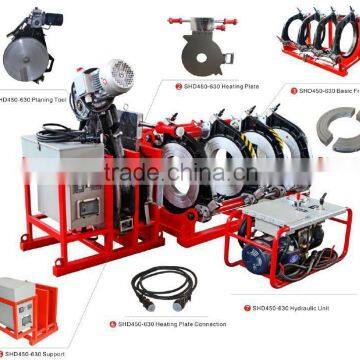

*Whole machine consists of basic frame, heating plate, planing tool, hydraulic unit and support (for planing tool & heating plate)
The whole machine consists of machine body, hydraulic unit, facer, heater, support for heater & facer.
On request (accessories):
1. Flange stub end holder
2. Data logger
3. Electrical hoist
WORKFLOW
These are our finished product:
After inspection the each parts of the machine is packed in plastic bags and then carefully packed in plywooden cases
*High quality with reasonable price.
*Twelve months warranty and good after-sales service.
*The customs all over the world accept our product.
*Engineers available to service machinery overseas
*We are international company joined German RITHENBERGER tools group and have further development of domestic and international market.
*Number 1 brand in China welding machine field.
Our company WUXI SHENGDA PLASTIC PIPES WELDING MACHINE CO., LTD is the leader manufacturer of butt fusion equipment in China. We occupy the 70% domestic market and export to more than 45 countries. We specialize in producing a complete range of international standard butt fusion equipment including field welding machine, workshop fitting machine, pipe saw, all the optional parts and tools required under the ISO9001 system and approved to CE standards by SGS.
In 2015, my company joined German ROTHENBERGER tools group, becoming one of the more than 50 companies under the first European big pipe tool production and sellers. And companies from the site moved to focus on economic development zone of jiangsu province - wuxi hudai industrial zone - joint road (north) 9 D building, with the German headquarters and subsidiaries throughout the world to work together, we will further development of domestic and international market.
