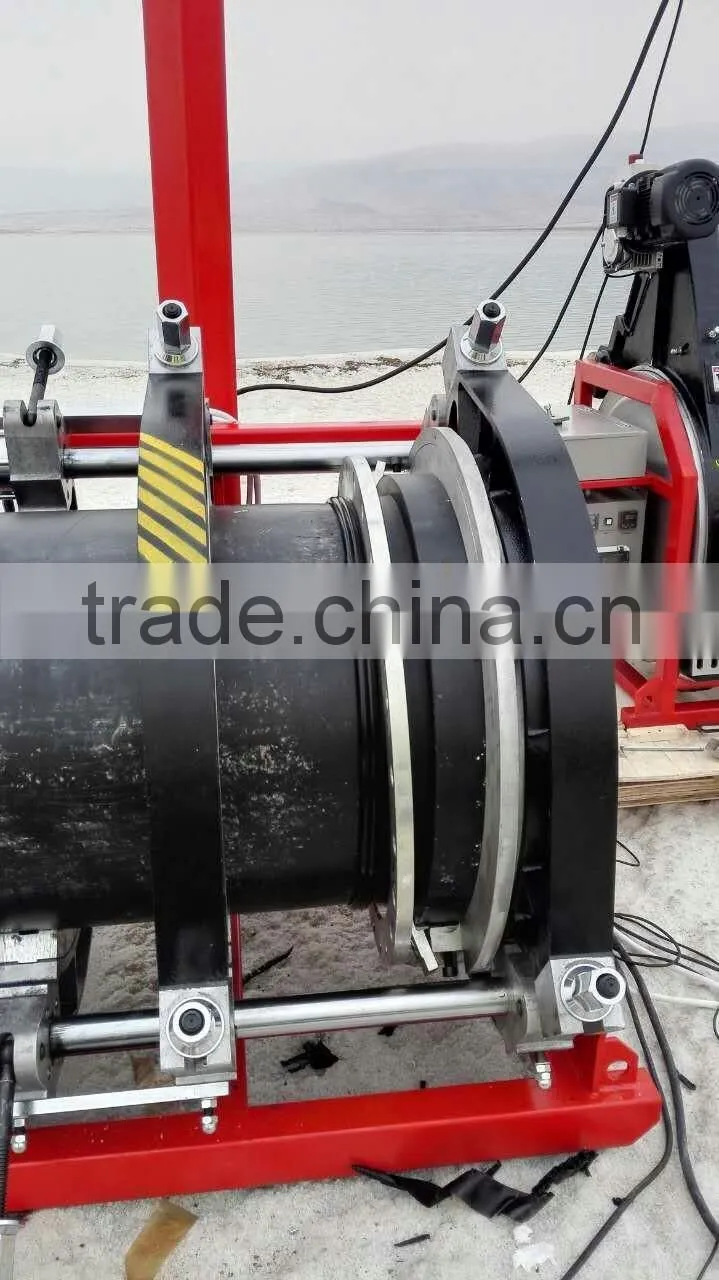

SHD800 hydraulic PE pipe joint welding machine from 450mm to 800mm;
PE Welding machine; Butt fusion welding machine; PE Welder
Application and Features for butt fusion welding machine:

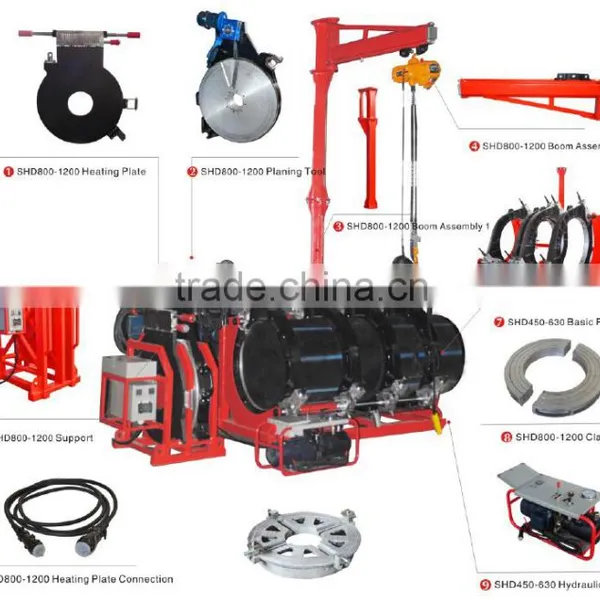

1. Consists of basic frame, hydraulic unit, planing tool, separate heating plate, support for planing tool & heating plate and optional parts
2. Removable PTFE coated heating plate with high accurate temperature control system
3. Electric planing tool with safety limit switch enables to start it only when it is locked in operation position
4. Made of lightweight and high strength material
5. Low starting pressure and high reliable seal structure
6. Changeable welding position brings more convenience while welding various fittings
7. Separate two-channel timer records times in soaking and cooling phases
8. High-accurate and shockproof pressure meter indicates clearer readings

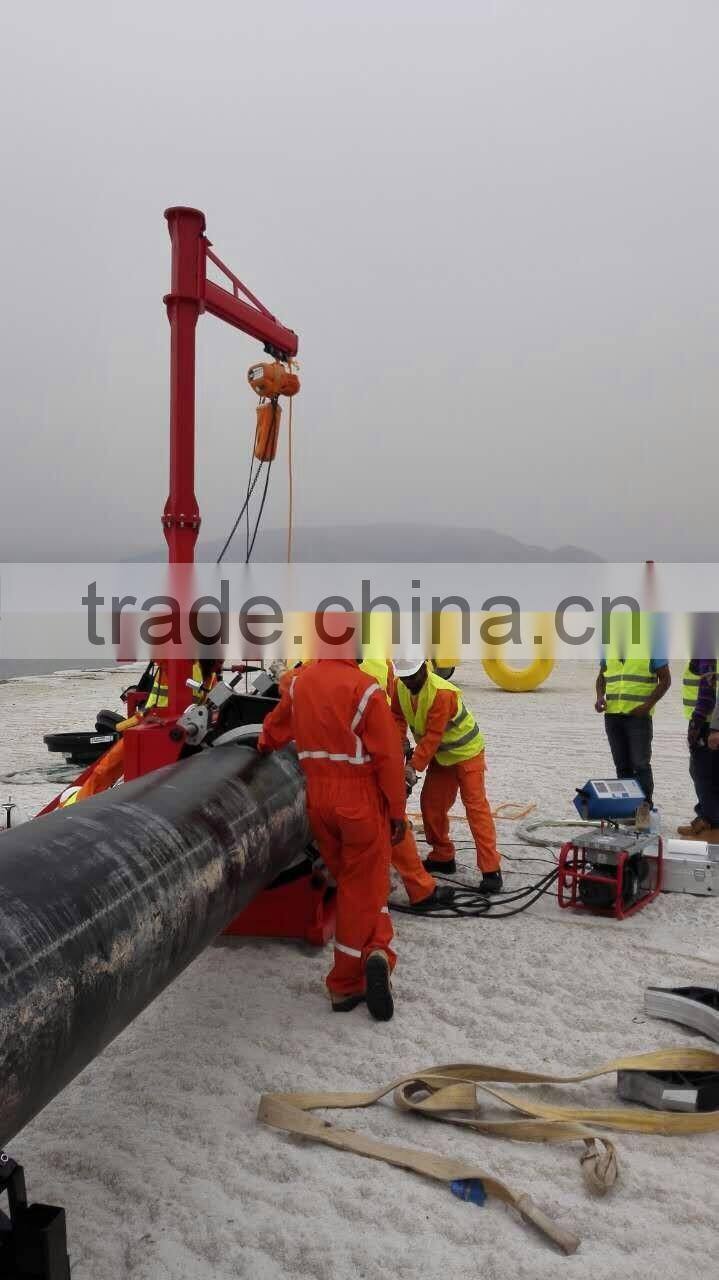

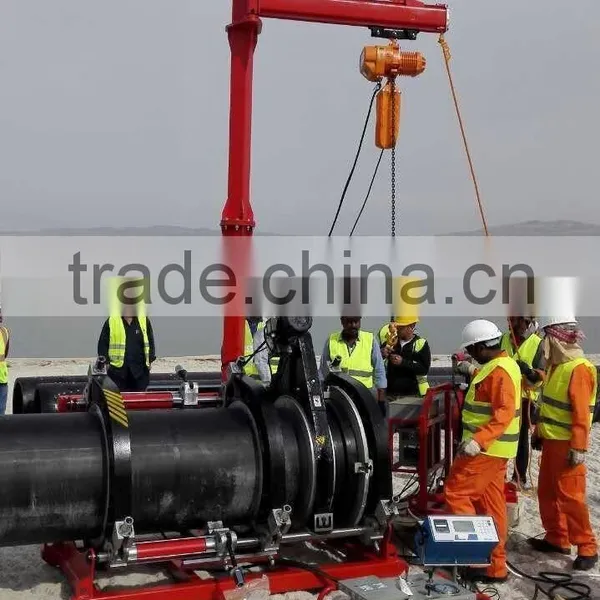

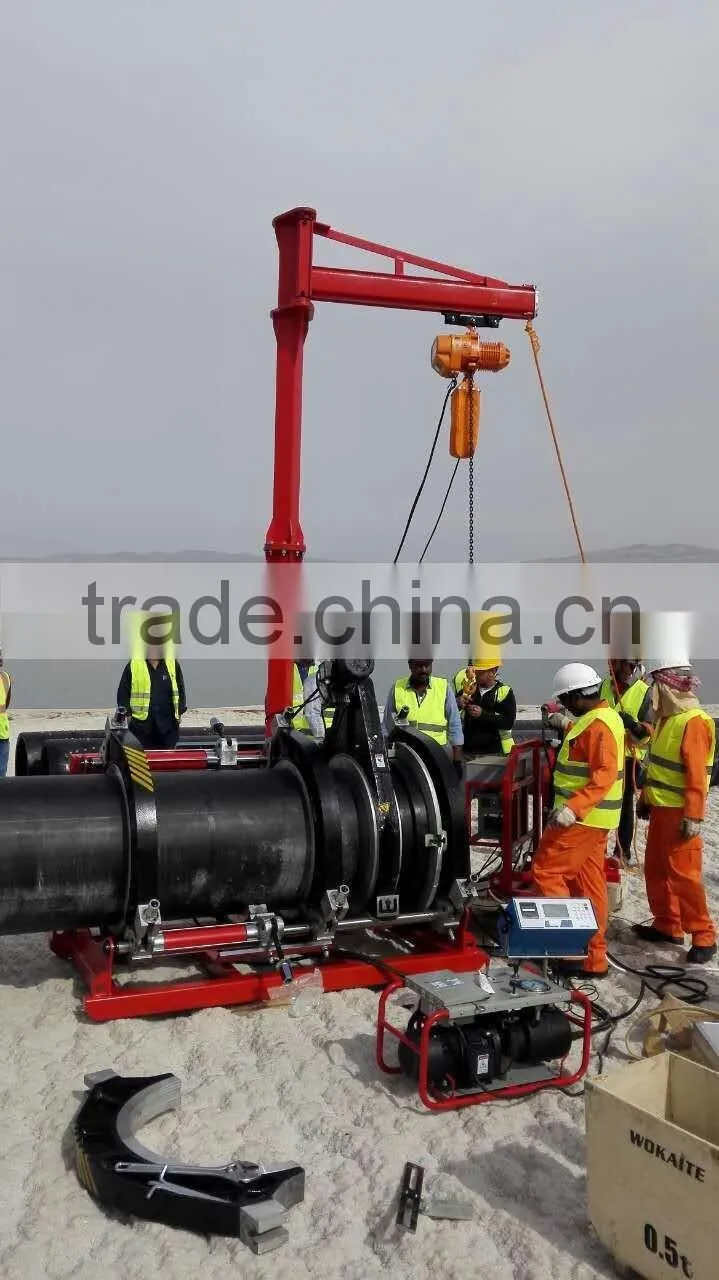

9. Labor saving and high efficient crane is available to lift planing tool and heating plate
Technical parameters:
| Model | SHD800/450 |
| Pipe size (mm) | 450,500,560,630,710,800 |
| Heating plate max. temp. | 270 centigrade degrees |
| Temp. deviation in surface | less than ±7 centigrade degrees |
| Pressure adjustable ranges | 0~12MPa |
| Working voltage | 380V 50Hz |
| Heating plate power | 12.5KW |
| Planing tool power | 2.2KW |
| Hydraulic unit power | 3KW |
| Crane power | 0.5KW |
| Total power | 18.2KW |
| Weight | 1500KGS |
| Packing | 5 Plywood cases |

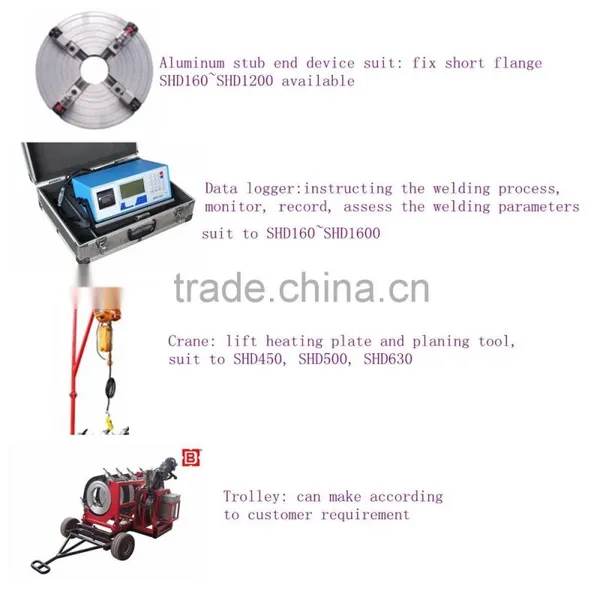

Option parts:
Stub end device for short flang
Data Logger

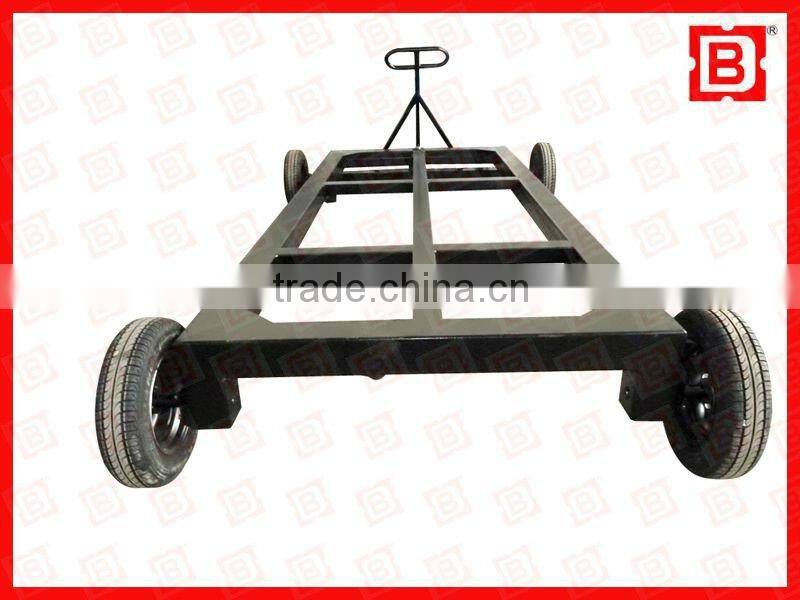

Trolley

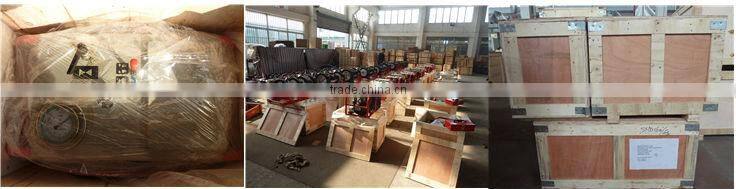

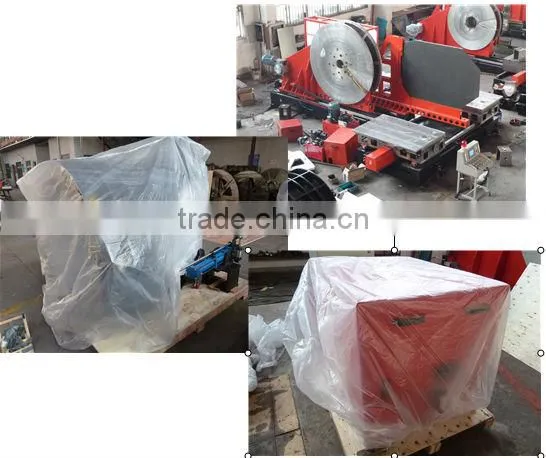

Conventional packing: Plywood cases / Wooden cases
Shipping: By sea / By air
