Help Center400mm Hydraulic Semi Automatic PE Pipe Butt Fusion Welding Machine
Related Products
-
160mm Hydraulic Semi Automatic PE Pipe Butt Fusion Welding MachineUS$ 600 - 1250MOQ: 1 Combo -
200mm Hydraulic Semi Automatic PE Pipe Butt Fusion Welding MachineUS$ 800 - 850MOQ: 1 Combo
-
250mm Hydraulic Semi Automatic PE Pipe Butt Fusion Welding MachineUS$ 2300 - 2400MOQ: 1 Combo
-
315mm Hydraulic Semi Automatic PE Pipe Butt Fusion Welding MachineUS$ 2730 - 2760MOQ: 1 Combo
-
355mm Hydraulic Semi Automatic PE Pipe Butt Fusion Welding MachineUS$ 3200 - 3300MOQ: 1 Combo

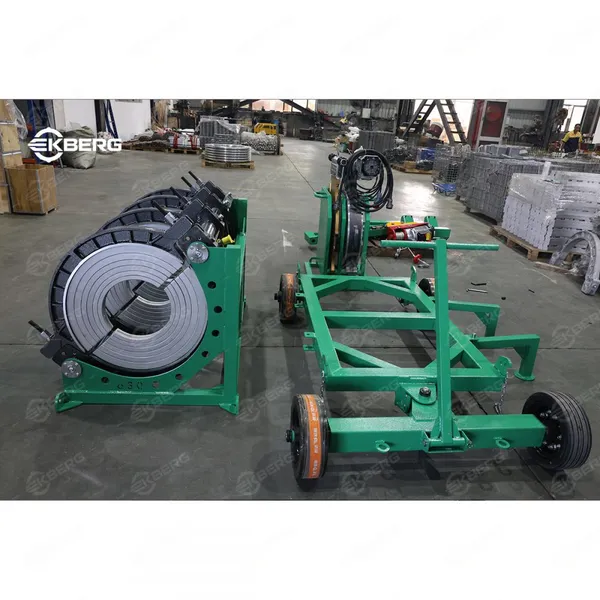

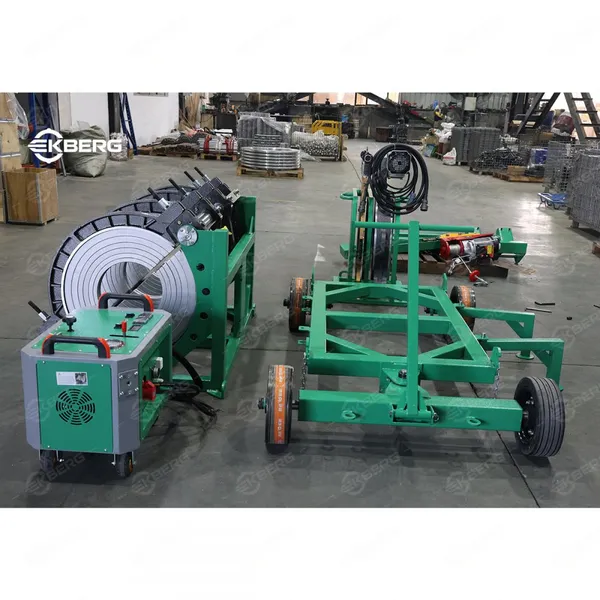

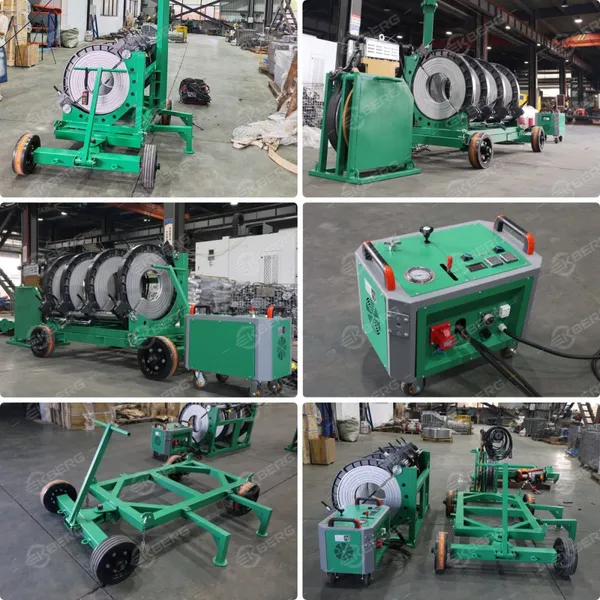

This 400mm hot melt welding machine is heavy duty hydraulic semi automatic butt fusion equipment developed for large diameter thick wall PE HDPE and PVDF pipes. The solid thick integrated steel frame can withstand the reaction force generated in pipe fusion and reduce vibration caused by rough site ground. The multi point clamping jaws apply uniform holding force to fix pipes steadily and avoid misalignment during hydraulic pushing. The durable anti corrosion coating protects the whole machine against changing weather, dust and humidity for long term outdoor construction work.

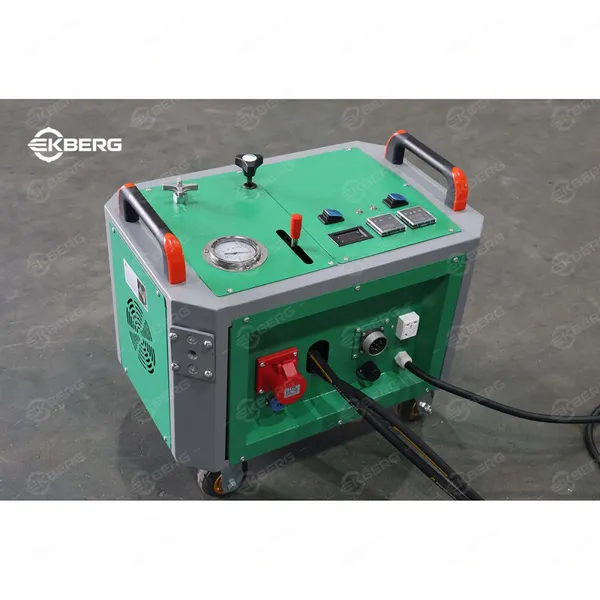

It is fitted with high precision digital constant temperature control system. The temperature error is within plus or minus 5 centigrade and the maximum heating temperature is 270 centigrade. The large heating plate achieves deep even heat penetration on wide pipe end faces, lowering risks of partial melting and invisible internal weld defects. The independent hydraulic power pack supports fine adjustment of thrust and movement speed to meet strict operation standards for large plastic pipe butt welding.
This welding equipment is widely adopted for municipal main branch water supply pipelines, suburban sewage transmission lines and medium large water conservancy projects. It maintains stable performance during continuous heavy load welding tasks and produces high integrity weld joints that meet pressure test and project acceptance standards.
Send Inquiry to This Supplier
