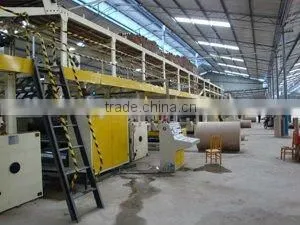

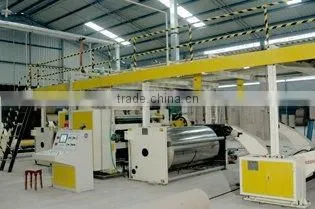

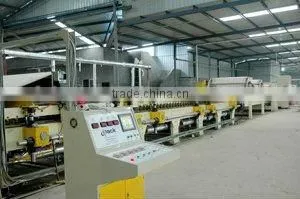

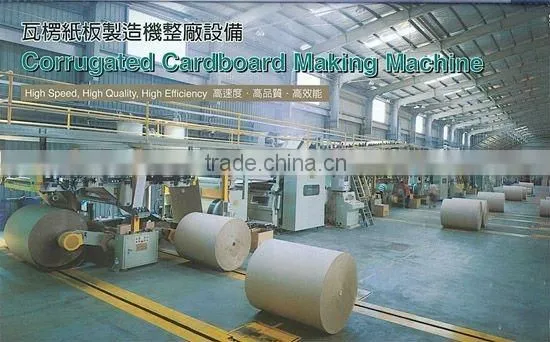

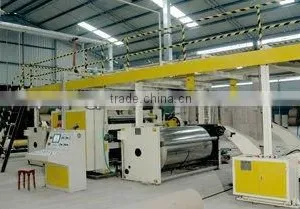

automatic 3 layer corrugated paperboard production line
- 1 Set / Sets per Month
- shanghai
- Semi Automatic Packing Line , Toilet Roll Packaging Machine Price
- Reciprocating small egg tray machine apple tray machine
- 3600mm Multi Wire Fluting Paper Machine Production Line Made Paper in 110-250gsm
- Durable and sturdy spiral paper tube machine
- Durable and sturdy corner protectors
- A user-friendly and durable fireworks paper tube machine
Product Details
Condition: | New | Product Type: | Other, Cardboard Production Line | Processing Type: | Paper Folding Machine |
Place of Origin: | Shanghai, China | Brand Name: | QiSheng | Model Number: | WJ80 |
Certification: | CE | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Our company is a famous enterprise in domestic carton packing machine field. Founded since 1997, we are first-class research and3 layer complete Corrugated cardboard production line
Usage and feature:
The assembly line for automated mass production, can produce good national standard corrugated cardboard, high efficiency, good quality board to take centralized control, easy operation, easy maintenance, safety and reliability, greatly reduced the labor intensity. The production line using the latest international energy-saving way to provide high temperature heat conduction oil to heat machine than the steam heating energy savings above 60%, significantly reducing power consumption, effectively reduced the cost of production, is the ideal product for today's economy and medium-sized carton factory.
One/ The total length of integral machine are 68 meters.
Two/ Total Power is 150KW.
Three/ Shaftless holder: Double arms for exclusively up and down.
Four/ Laminator: adopt electromagnetic adjusting motor
Five/ Two roller gluer:use on glossy paper in the bottom two layers of adhesive roller guide
Six/ Dryer: Total length 10 meters, consists of 14 pieces of heating board. Pneumatic device, separate automatically when power off
Seven/ Molding Part: including 27 pairs of molding shaft

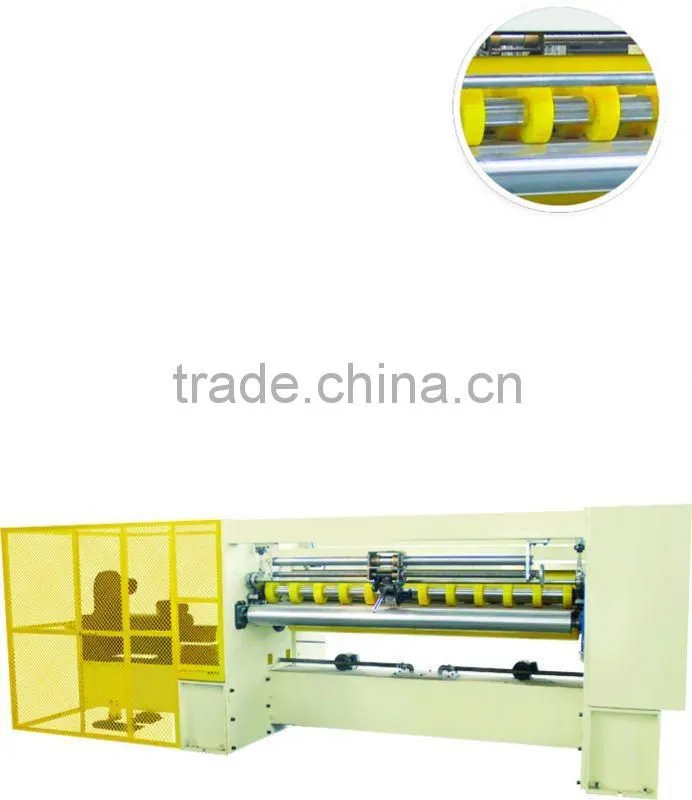

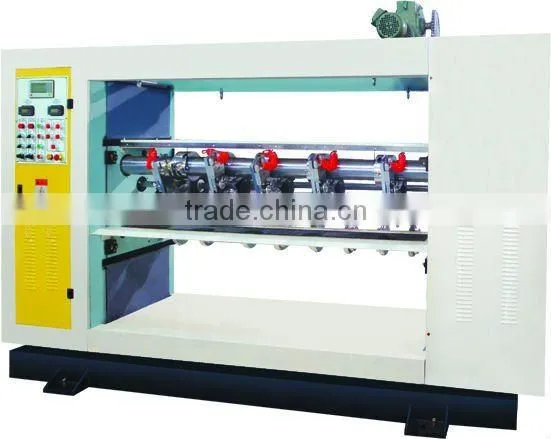

Eight/ Slitter: select common knife or thin knife according to customer’s request, highly automatic and easy operation
Nine/ Cutting machine: Into the computer and mechanical single-pole single-pole total of four optional means for customers to choose.
Ten/ Boiler (self), coal consumption 120 kg / hr
Specification:
Production line type | Max speed (m/min) | Max working width(mm) |
WJ150-1400 | 80 | 1400 |
WJ150-1600 | 80 | 1600 |
WJ150-1800 |
80 | 1800 |
WJ150-2000 | 80 | 2000 |
WJ150-2200 | 80 | 2200 |
WJ150-2500 | 80 | 2500 |
