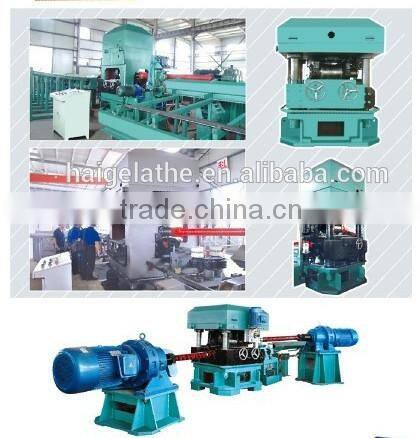

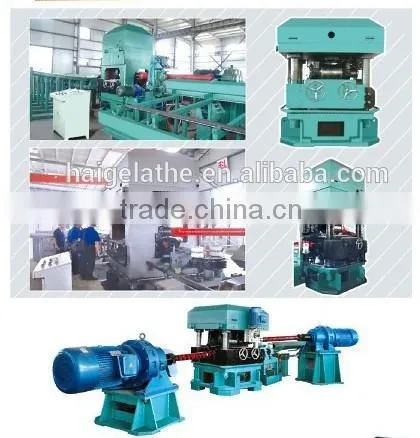

Series JY straightening machine:It is mainly used for straightening and calenderinintroaall.jpgg for various metal bar after peeling or granding.Sometimes, it is also used in the rough pre-straightening for the black bar.
With this machine, calendering and straightening of the bar can be completed at the same time,which greatly improved the efficiency.
The special curve between the upper concave and the lower convex of the two straightening rolls can easily realiize calendering while straightening.
Series JY two-rolls Straightening Machine includes two-beams structure, four-beams structure,prestressed structure and frame structure.Different types will be matched with different parameter tables
.
Yantai Haige Machine Tools Co.,Ltd
----Professional Manufacturer of Centerless Lathe &Straightening Machine
Yantai Haige Machine Tools Co.,Ltd. was built in 1997,which is mainly producing series WXC Centerless Lathe(Bar Peeling Machine),Series JY Bar Straightening Machine,Abrasive Belt Grinder (Belt Sander Polishing Machine) and
auxiliary machine,etc.
We regard Customer’s Satisfaction as our unremitting pursuit.
Based on more than ten years manufacturer and design experience,our machine have been exported to Russia,Vietnam,India,
Korea and other countries and regions.
|
Haige Machine Tools Co.,Ltd. Unique After-sale Service 1.Our engineers can offer overseas service,including guiding installation,commissioning,etc. 2.Free quality guarantee period for 1 year except for vulnerable parts 3.Free provide long-term technical support 4.Free train buyer’s operator in seller’s factory |
Series JY Straightening Machine is mainly used for precision straightening and calendering for the bar after peeling or
grinding and rough pre-straightening for the black bar.
Series JY two-rolls Straightening Machine includes two-beams and four-columns structure,prestressed structure and frame structure.
The Feature of Bar Straightener
1.high feeding straightening speed,due to calendering and straightening at the same time,so the working speed can reach
10~30m/min
2.Straightening and calendering at the same time
High precision,straightness can reach 0.15mm/m to 0.4mm/m,surface roughness Ra≤0.8μm.
Main Parts
Series JY straightening machine is mainly used forprecision straightening for the metal bar after peeling or grinding and
pre-straightening for the metal bar.
The machine adopted special curve between upper concave and the lower convex two straightening rolls to realize
calendering and straightening at the same time,which greatly improved the working efficiency.
Series JY two-rolls Straightening Machine consists of two-beams and four-columns structure,prestressed structure and frame structure.
The most vital part of a straightener is the two
straightening rollers, which designed by our qualified engineers.The upper roller is concave and the lower one is convex,
which formed a special curve to press strongly onto the materials to realize straightening,as well as calendering.

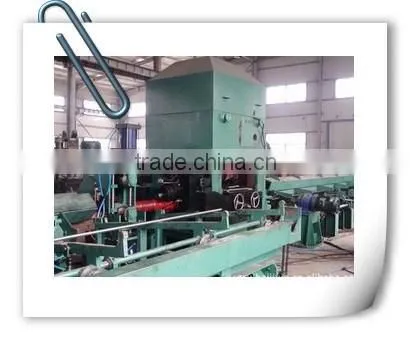

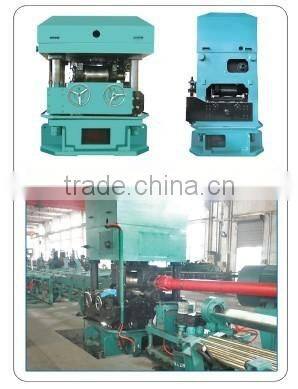

Main Machine

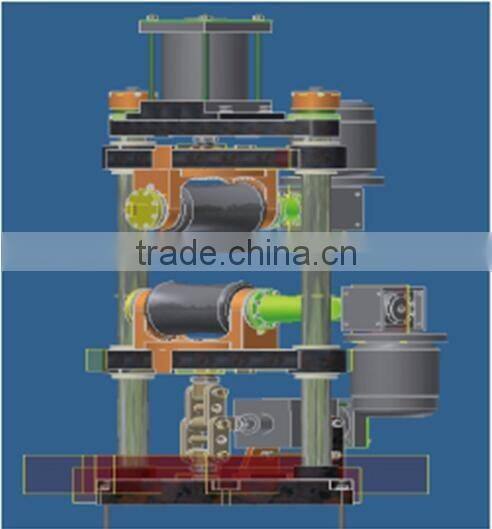

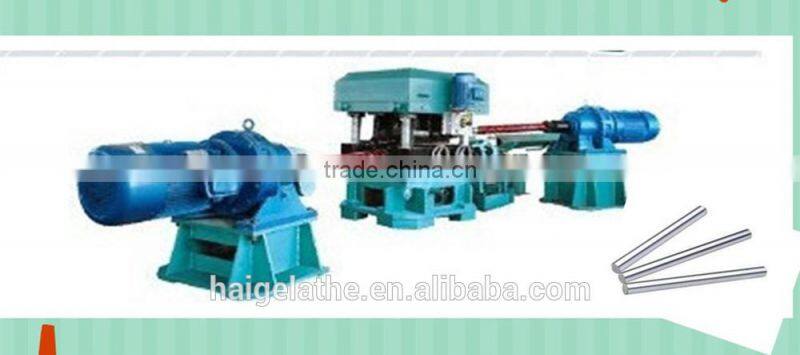

The upper and lower body respectively install a straightening roller,the upper roller is concave ,the lower roller is convex.
According to the diameter and the material properties of the bar,respectively to adjust upper and lower straightening roller
angle,electric lift part adjust the gap between the two straightening rolls,start the cooling lubrication system,driven by main
motor,to complete calendering and straightening at the same time.
Frequency conversion stepless speed,real-time display the gap between upper roll and lower roll.Guide sleeves are installed in the inlet and outlet.Its location can be
adjusted,playing guide and support role.During processing,the bar can accurately enter and leave the straightening rolls.
Cooling Lubrication System
Cooling lubricants by cooling pump suction,through multiple pipelines from the front spray nozzle to the roll gap and the
bar,playing cooling and lubricating role.After converging,follow together into the coolant tank.Coolant tank design three
layer protection filter,to ensure lubricating coolant cleanness.
Electrical System
The transmission system adopts frequency conversion stepless speed regulation,feeding system,adjustment system,cooling
and lubricating system controlled by AC power.
The main power supply is AC380v 50Hz,control power supply is AC220V 50Hz.Control system for low voltage power
supply(DC24v).

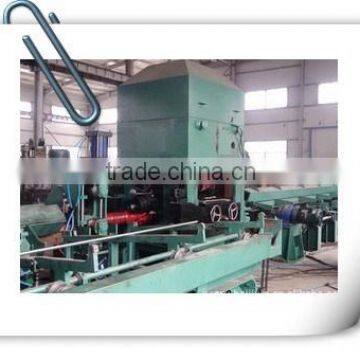

Entry Guide System and Exhaust System

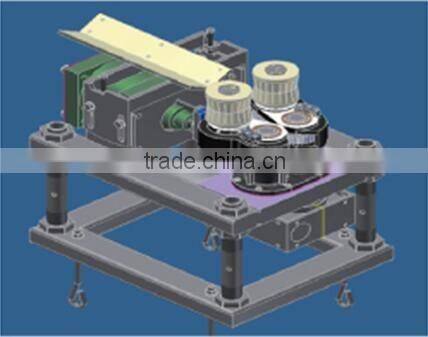

The upper and lower cylinders respectively control the upper and lower nylon rollers lifting,meanwhile,two motors drive
two nylon rollers rotating.Then clamp the bars entering the entrance of the guide sleeve.
Two nylon rollers clamp the workpieces and asssure the workpiece not easy to slip,reliable work.

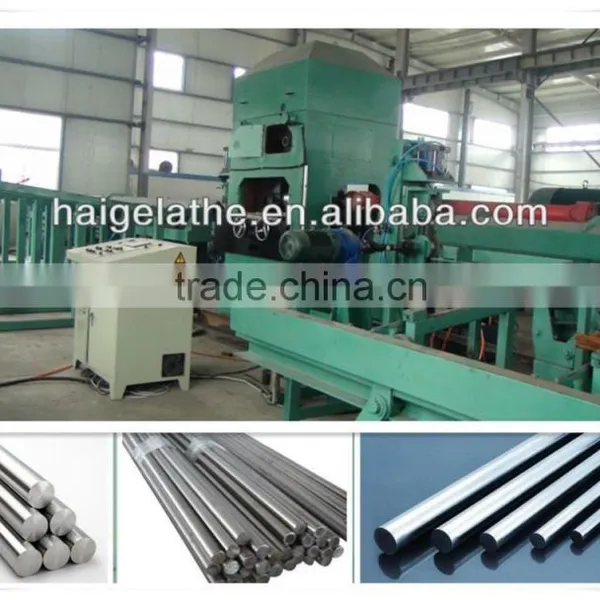

Auxiliary Machine

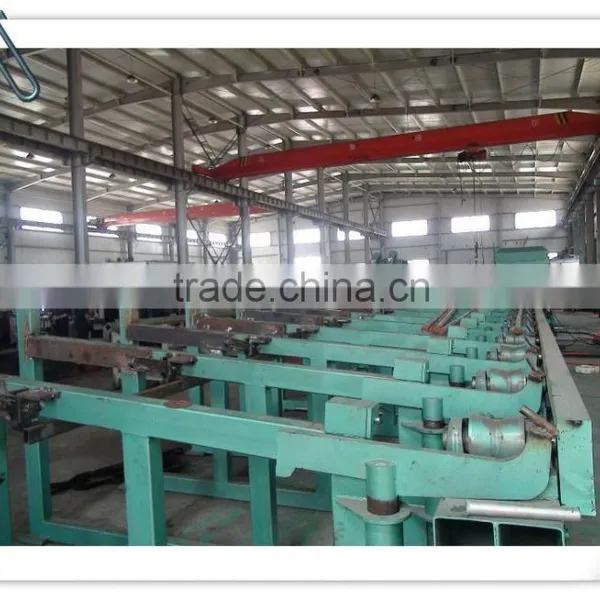

Automatic loader and unloader,greatly saving labor cost.
After straightening,all the collection racks are equipped with protective layer to avoid any scratches.
