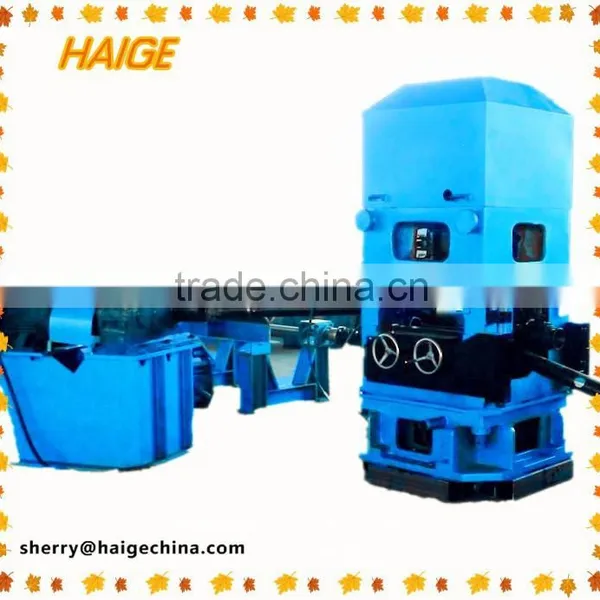

Series JY straightening machine:It is mainly used for straightening and calendering for various metal bar after peeling or granding.Sometimes, it is also used in the rough pre-straightening for the black bar.
With this machine, calendering and straightening of the bar can be completed at the same time,which greatly improved the efficiency.
The special curve between the upper concave and the lower convex of the two straightening rolls can easily realize calendering while straightening.
Series JY two-rolls Straightening Machine includes two-beams structure, four-beams structure,prestressed structure and frame structure.Different types will be matched with different parameter tables.
Main Technical Parameters
Specification |
JY100 |
|||
|
Raw
Material
|
Diameter Range(mm) (excluding drawing material) |
Tensile Strength σb≤450(M pa) |
Φ25≤d≤Φ100(L ≥3000) |
|
Tensile Strength σb≤1000(M pa) |
Φ25≤d≤Φ90(L ≥3000) |
|||
Surface Hardness |
≤HB380(≤HRC42) |
|||
Straightness(mm/m) |
Bright Steel≤3 Black Material≤4 |
|||
Diameter Tolerance |
Bright Steel≤IT10Black Material d-2-GB/T702-2004 |
|||
Circular Degree |
d≤50 |
≤50% of diameter tolerance |
||
50<d≤80 |
≤65% of diameter tolerance |
|||
d>80 |
≤70% of diameter tolerance |
|||
|
Diameter Range(mm) (excluding drawing material) |
Bright Steel≤3.2mm~6.3mm |
|||
|
Finished
Products
|
Straightness(mm/m) |
Bright Steel≤0.40 Black Material≤1.0 |
||
Diameter Tolerance |
Bright Steel≤IT8 Black Material:Much better than raw material |
|||
Surface Roughness(Ra) |
Bright Steel≤0.8μm Black Material:Much better than raw material |
|||
Roller Quantity (Pcs) |
2 |
|||
Roller Diameter (mm) |
Φ380 |
|||
Straightening Feeding Speed(m/min) |
2~12 |
|||
Main Machine Motor Power (KW) |
75 X 2 |
|||
Lifting Motor Power (KW) |
4 |
|||
|
Outline Dimensions (Length*Width*Height) (for your reference) |
Full Set (including auxiliary machine) 15.8mX5.5Mx4.6m |
|||
Weight(for your reference) |
Main Machine 26T Full Set(including auxiliary machine) 32T |
|||
Total Capacity(for your reference)KW |
170KW |
|||
Compressed Air Source(user prepare by themselves) |
0.5~0.8MPa,3m3/min,two-stage oil-water separator |
|||
♦ Optimum straightening effect, even with high strength materials
♦ Two-roll principle with concave upper roller and convex bottom roller to ensure that the ends are straightened
♦Straightener roll from alloyed and hardened chrome steel
♦Lateral guidance of the bar to be straightened between the straightener rolls by special guide ledges
♦Long striaghtening roller life due to coolant lubrication
The most essential part:
convex and concave
straightening rollers
whose special curves are researched
and designed by our engineer to
straighten and calender the bars
at the same time
1.Outside package: Standard export wooden case
2.Inner package:stretch film
A. 12 months Warranty period.
B. 24 hours welcome to your enquiry.
C.Customized design is available. OEM& ODM are approved.
D.overseas installation,commssioning,training,etc.
E.Special discount can be provided to our distributor.
|
