Specifications
Modular design providing flexibilityExtrusion glue system
Vacuun tray hold-dowm and position sheet squaring device
Long-life

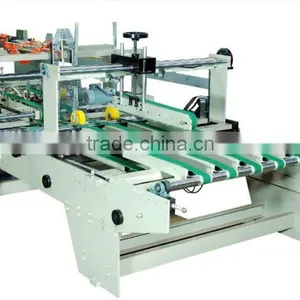

High speed automatic folder gluer Features
Modular design providing flexibility
Extrusion glue system
Vacuun tray hold-down and position sheet squaring device
Long-life belts
Easy operation&low maintenance
Faster set-ups
Features:
1.The average speed stick boxes:5000-10000/h;
2.Automatic for the paper ,automatic coating ,automatic folding ,automatic calibration.automatic counting automatic stacking;
3.Frequency control ,touch screen input data;
4.Effectively overcome the traditional stick scissors box appears the phenomenon of mouth and tail marks ,ensuring accuracy of sticky boxes ;
5.For forming a carton;
6.Significant savings in laboor and improve efficiency.
Master technichal parameters
modal |
YS-2000 |
YS-2400 |
YS-2800 |
|
|
Specification Of the Cardboard |
Max H*L |
1000*2000 |
1000*2400 |
1400*2800 |
Min H*L |
300*800 |
350*800 |
350*800 |
|
Distance between the two Grooves B |
150*600mm |
150*800mm |
150*800mm |
|
Distance between the two Grooves c |
150*600mm |
150*800mm |
150*800mm |
|
Applicable cardboard thickness(mm) |
2-9mm |
|||
Adhesive |
Polyvinyl Acetate Emilsion |
|||
Sheet feeding method |
Friction Feeding |
|||
Formation mode |
|
|||
Compressed air |
0.7-1.0Mpa |
|||
Total power of the whole machine |
8kw |
Total power of the whole machine |
8kw |
|
Running speed |
180/min. |
|||
Cementing with |
<=45mm |
|||
Power |
380v |
|||
Machine overall dimensions(mm) |
3000*11500 |
3200*11500 |
3600*11500 |
|
