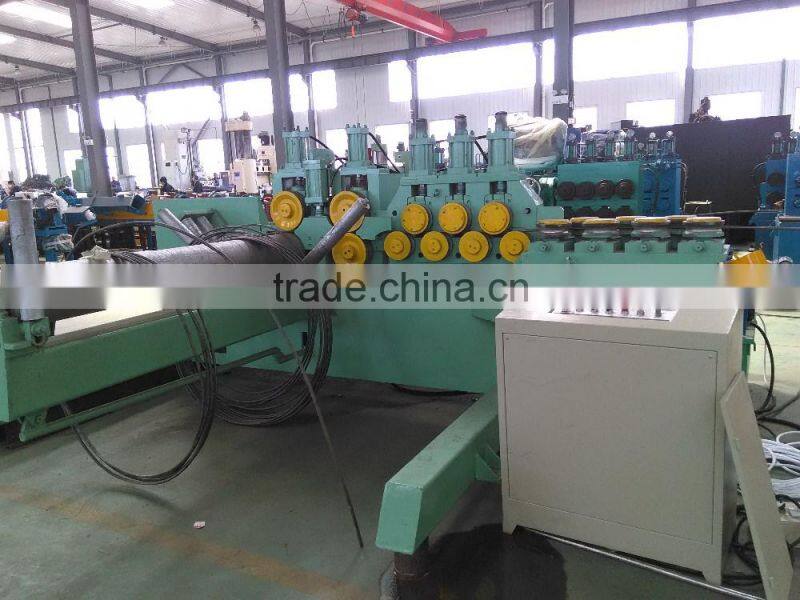

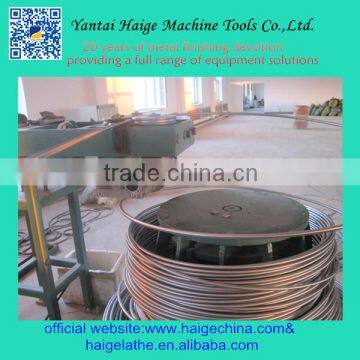

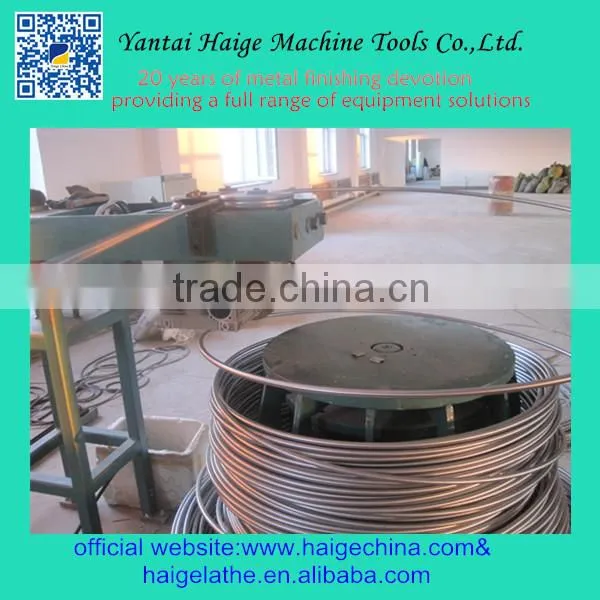

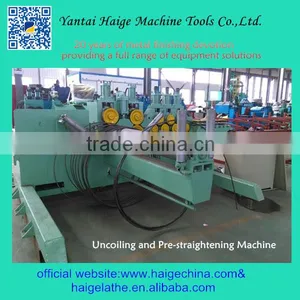

Uncoiling and Coiling Machine for Wire Rods/steel Coil
US$ 45000.00 - 45000.00
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wire Rod/steel Coil Uncoiler and CoilerUS$ 45000.00 - 45000.00MOQ: 1 Set -
Wire Rod to Bar Automatic Production LineNegotiableMOQ: 1 Set
-
HAIGE Professional High Speed Peeler Steel Copper Wire Rod Peeling MachineUS$ 50,000 - 200,000MOQ: 1 Set
-
Uncoiling Peeling Coiling Machine Production Line Wire Rod to Wire RodNegotiableMOQ: 1 Set
-
China Top Steel Brass Wire Rod Peeling Machine Peeler With Automatic FeederUS$ 50,000 - 200,000MOQ: 1 Set
Condition
New
Type
Horizontal
CNC or Not
CNC
Automatic Grade
Automatic
Max. Swing Diameter
reference
Place of Origin
Shandong, China
Brand Name
HAIGE
Model Number
KP20
Voltage
280V/440V
Power(W)
reference
Dimension(L*W*H)
reference
Weight
reference
Certification
ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
Main Technical Parameters for your reference
Specification |
KP25 |
|
|
Requirements before Peeling
|
Diameter range(mm) |
Φ8-Φ25(without dead bending) |
Yield strength σb (Mpa) |
≤900 |
|
Surface hardness |
≤HB320 |
|
Requirement for curvature(mm/m) |
peeling≤1.5 but no dead blend |
|
Diameter tolerance |
d-2-GB/T702-2004 |
|
Roundness |
≤50% of diameter tolerance |
|
Surface Roughness (Ra) |
≤25μm |
|
|
After peeling
|
Dia peeling depth (mm) |
0.5-1.5 |
Diameter range (mm) |
Φ7.5-Φ23.5 |
|
Diameter tolerance |
≤IT10 |
|
Surface roughness(Ra) |
≤6.3μm |
|
Roundness |
≤0.03 |
|
Speed( stepless speed) |
1.0-8.0m/min |
|
Motor of uncoiler machine |
15kw |
|
Feeding motor(uncoiler machine) |
2.2kw |
|
Main motor (centerless lathe) |
45kw |
|
Feeding motor(centerless lathe) |
4kw×2 |
|
