steel brass wire rod peeling machine peeler with automatic feeder
Compared with ordinary lathe
1. Ordinary lathe has great restriction for processing long shaft.
Centerless lathe can process the bar of infinite length in theory.
2. Centerless lathe can process not only bars, but also wire rod, including wire rod to wire rod, and wire rod to bar.
3. The working efficiency of centerless lathe is dozens of the ordinary lathe, its processing speed is 1~12m/min.
4. High precision. After peeling, the tolerance of diameter reach≤IT9, surface roughness≤6.3μm.
Series WXC Peeling machine is a high-efficiency lathe which is specialized in processing the surface of steel round bar and steel wire rod, for example, straightening, peeling, cutting and polishing, etc.
Not only quickly remove surface hardened layer, cracks and other defects, but also can get high precision.
Shapes of Workpiece are requested long steel round bar and steel wire rod.
Wire rod to wire rod process: loader→uncoiler machine→centerless lathe→pre-bending→unloader

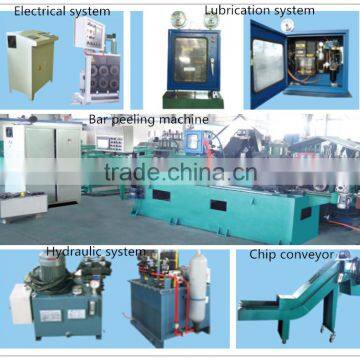

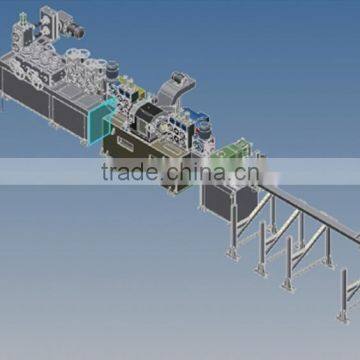

Whole production line
Uncoiler machine
Centerless lathe
Pre-bending device and unloader

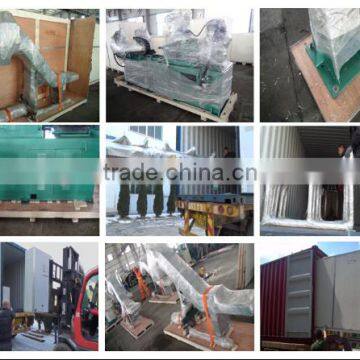

The first layer
wrapping with foam film and stretch film for the special components, in order to avoid moisture.
Second layer
inside of plywood box, adopting small square plywood block and strapping belt to fix.
Third layer
the machine itself has screw fixing holes, so it can be tightly fixed on the bottom of the plywood box through screw and nut.
Fourth layer
in a container, by compact layout, reducing the gap between boxes to avoid shaking. At the same time, reinforcing between the bottom of the container and plywood boxes once again, furthermore using hanging steel wire protection.
1. Free quality guarantee period for 12 months, except for wearing parts.
2. Free provide long-term technical support
3. Free train buyer’s operator in seller’s factory
4. Fast response service within 24 hours
5.Our engineers can offer overseas service, including guiding installation, commissioning, training, etc, if our customer needs.
The company is based on the manufacturing plant--Yantai Haige machine tools Co., Limited, which is mainly engaged in producing and sell bar peeling machines (centerless lathes), straightening machines, polishing machines( abrasive belt machines), auxiliary machines and other processing and finishing equipment for steel (bright steel) for more than ten years.
Our company has strong R&D and production capacity. With advanced technology, high quality, high precision, high reliability, high efficiency, excellent after-sale servie, our metal finishing equipments in full sets not only have been sold well to nearly thirty domestic provinces and cities, but also spread to many other countries in the world.
Please feel free to contact me for more information.
