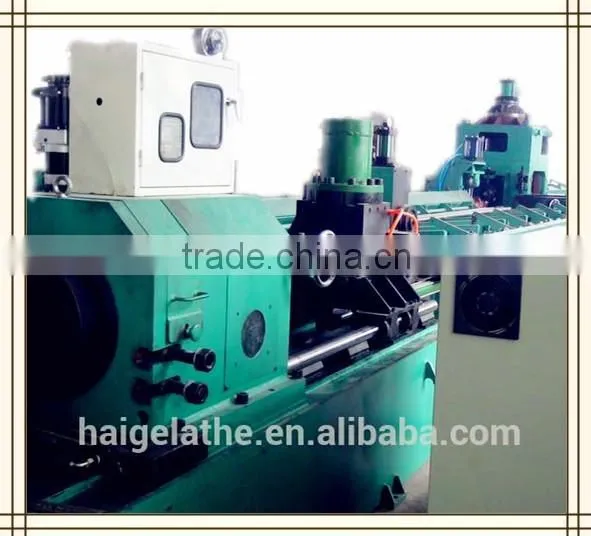

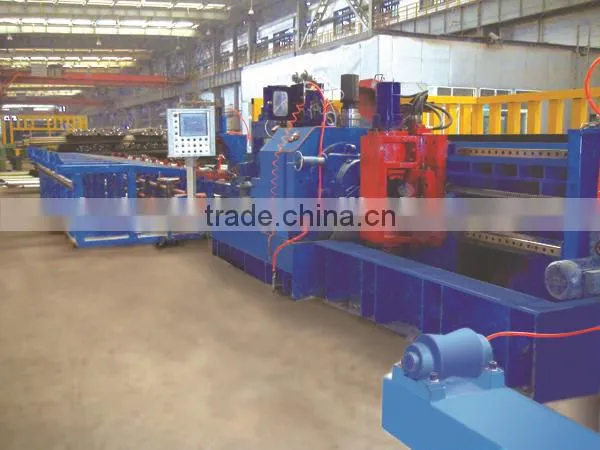

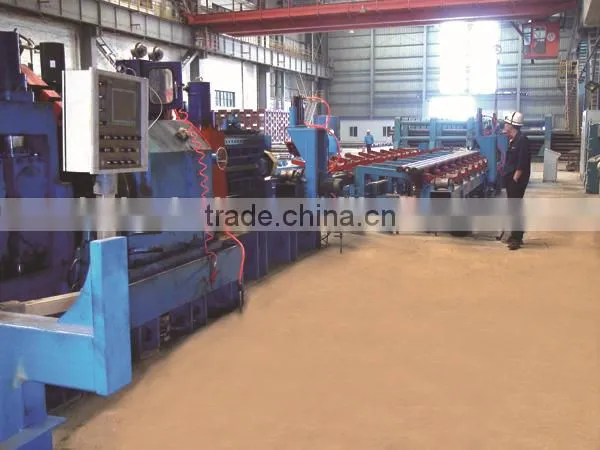

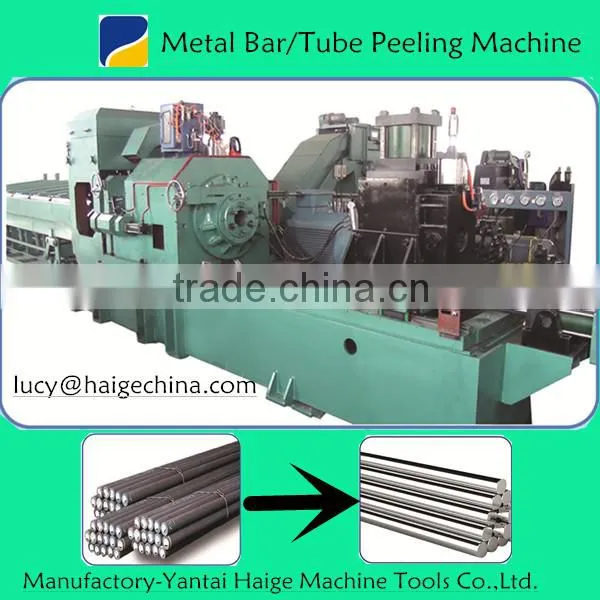

Series WXC Centerless Lathe includes Semi-automatic hydraulic and CNC type.
The machine’s features are as follows:
When processing over-length bar,centerless lathe has incomparable advantages.
Centerless Lathe is not only processing Bar,also Wire Rod.
Processing speed 1~12m/min,the working efficiency of centerless lathe is dozens of times of the ordinary lathe.

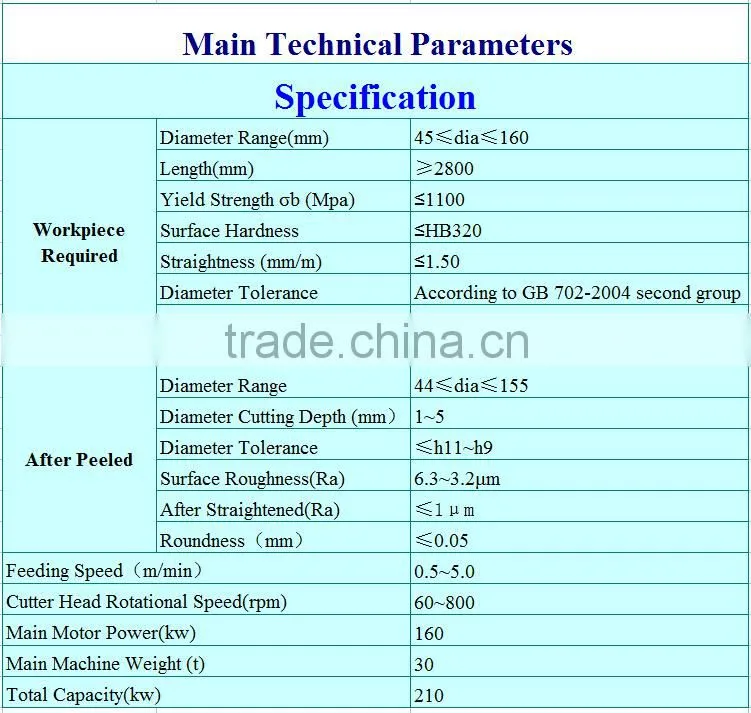

High Precision,after peeling,diameter tolerance can reach ≤h9,surface roughness(Ra)≤6.3μm.

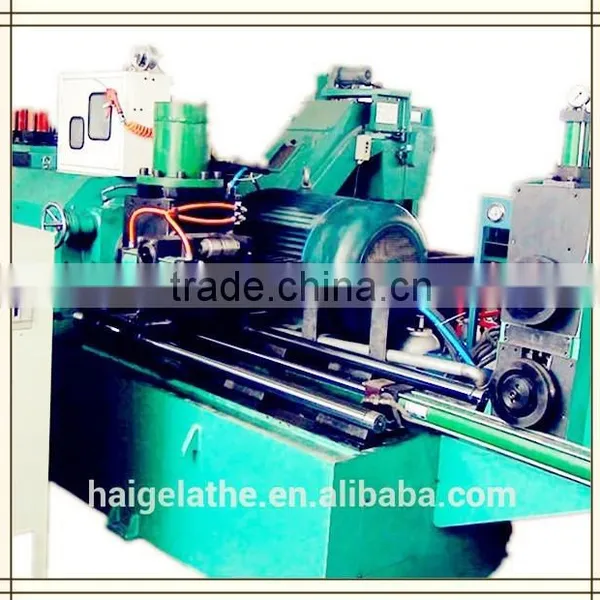

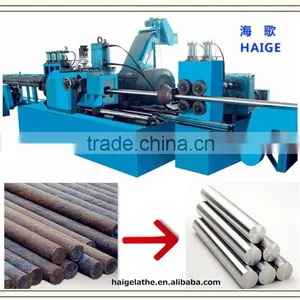

Semi-automatic Hydraulic Peeling Machine

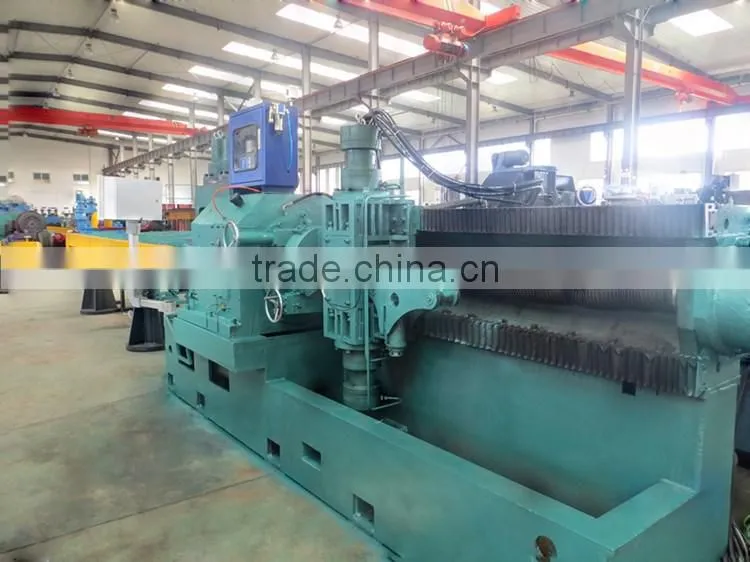

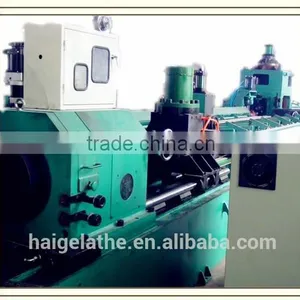

CNC Bar Peeling Machine
During processing,the bar itself doesn’t rotate.The cutter head drives the tools rotating at high speed to peel the surface of the bar.After peeling,the bar keeps walking straight ahead.
Applications
1. Ferrous metals:
Stainless steel, bearing steel, spring steel, tool steel, structural steel, alloy steel, free-cutting steel, air valve steel, gear steel. etc.
2. Nonferrous metals:
Copper alloy, titanium alloy, magnesium alloy, aluminum alloy, etc. Widespread in preparation link in manufacturing of slender axles, hydraulic/pneumatic elements, bearings, springs, auto parts, textile machinery, processing of cold forging materials, instruments, steel pipes, cutters, engineering machinery, sports equipment and other machiner.
3.Widely applied to industries of copper, titanium, aluminum, magnesium, petroleum, power and bridge

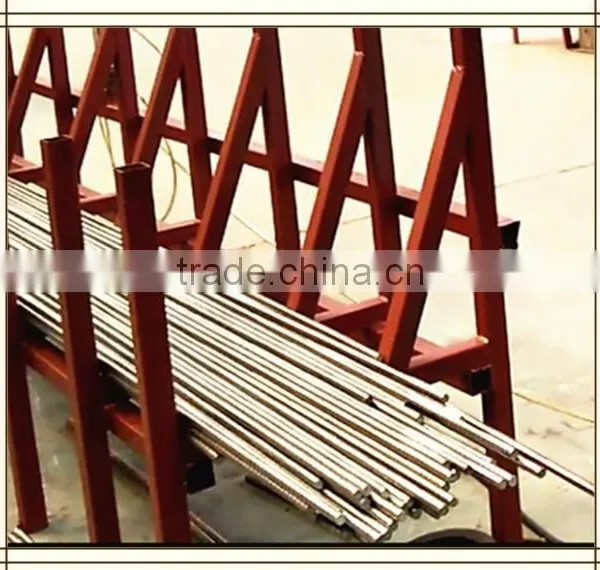

(e.g. piston rod, optical axis, bolt, spring, rack, rod thread, stainless steel rod, copper rod, titanium rod, aluminum rod, magnesium rod, bearing ring, draglink, roller shaft, pin, polishing rod, screw, core rod, oil drill pipe, tightwire, pipe blank).

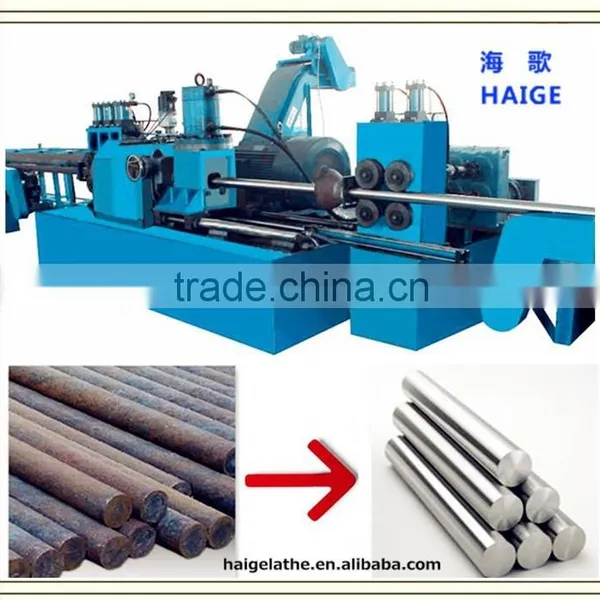

Processing Flow
Advantages
1. Centerless lathe has incomparable advantages in processing over-length bar.In theory,it can proces the bar of infinite length.
2.It can also process rod,or turning rod into bars.
4. The precessing speed: 1~12m/min which is several times faster than the general lathe.
5. High precision. The diameter tolerance ≤h9 while the surface roughness ≤6.3μm after peeling.
The surface roughness can be less than 0.8μm if our straightening machines are used afterward.
Inside taking multi protection measures:
The first layer
wrapping with foam film and stretch film for the special components, in order to avoid moisture.
Second layer
inside of plywood box, adopting small square plywood block and strapping belt to fix.
Third layer
the machine itself has screw fixing holes, so it can be tightly fixed on the bottom of the plywood box through screw and nut.
Fourth layer
in a container, by compact layout, reducing the gap between boxes to avoid shaking. At the same time, reinforcing between the bottom of the container and plywood boxes once again, furthermore using hanging steel wire protection.
Outside wooden case with export fumigation
Factory Introduction
Yantai Haige Machine Tools Co.,Ltd. was built in 1997,which is mainly producing series WXC Centerless Lathe(Bar Peeling Machine),Series JY Bar Straightening Machine,Abrasive Belt Grinder (Belt Sander Polishing Machine) and auxiliary machine,etc.
We regard Customer’s Satisfaction as our unremitting pursuit.
Based on more than ten years manufacturer and design experience,our machine have been exported to Russia,Vietnam,India,Korea and other countries and regions.
Factory real landscape
Processing Machinery
Accessories Area
Administrative Area
Our services
A. 12 months Warranty period.
B. 24 hours welcome to your enquiry.
C.Customized design is available. OEM& ODM are approved.
D.overseas installation,commssioning,training,etc.
E.Special discount can be provided to our distributor.
