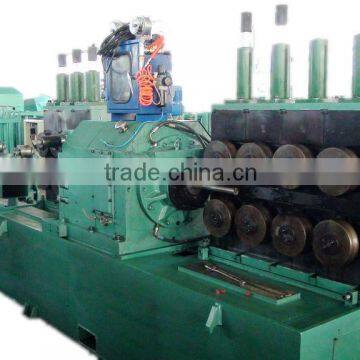

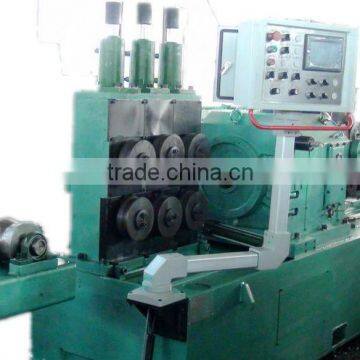

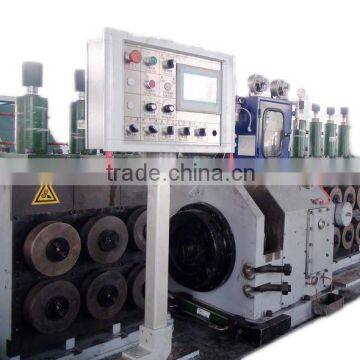

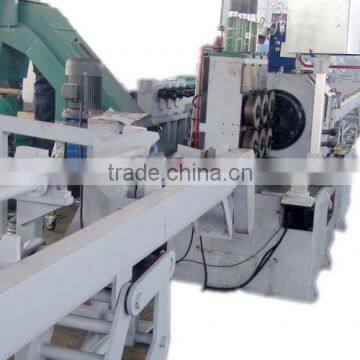

best China round steel bar peeling machine
advantages:
1. Green, with no environmental harm.
2. Surface of finished goods possesses better brightness.
3. Faster turning and straightening, and higher working efficiency.
4. Have unique advantages in processing over-long bars
(including infinitely long coiled raw materials).
5. Operation is simple, reducing labor cost and enhancing profit.
6. All of the metal shavings of turning can be recycled and resold,
reducing cost and enhancing profit once again.
Features: practical; stable processing; highly speed; high efficiency; better surface quality. Online adjusting tool holders. Full-automatic online loop-locked control of material diameter can be achieved if more control points are added. The whole line of the equipment owns high degree of automation. Turning speed of materials can reach 1-12m/min. The equipment possesses automatic and manual control systems, and the two systems can be interlocked in usage.
New-generation products of centerless lathe series independently developed by Yantai Haige Machine Tools Co., Ltd are mainly used for the skin processing of long and round metal materials, including round steel (tubing) etc. They can rapidly wipe off the defects of bars, such as surface crack, oxide layer and decarburized layer. Furthermore, they can produce high-quality bar, tubing, and wire rod of metal brightness with high precision and surface roundness. The efficiency is several times to more than ten times superior to conventional craft, greatly reducing numbers of workers and equipment cost.
Main Technical Parameters—WXC100C
Specification |
WXC100C |
|
RAW |
Diameter Range(mm) |
Φ21~Φ110 |
Raw Material Length(mm) |
≥2200 |
|
Tensile Strength (M pa) |
≤1100 |
|
Surface Hardness |
≤HB320 |
|
Curvature(mm/m) |
≤1.50 |
|
Diameter Tolerance |
According to GB 702-88 second group |
|
Roundness |
≤50% of the diameter tolerance |
|
Surface Roughness(Ra) |
≤25~50μm |
|
FINISHED |
Diameter Range |
Φ20~Φ106 |
Unilateral Cutting Depth (mm) |
1~2.5 |
|
Diameter Tolerance |
≤IT9 |
|
Surface Roughness(Ra) |
≤12.5μm |
|
Roundness |
≤0.04 |
|
Feeding Cutting Speed(m/min) |
0.5~5(reduce feed speed for continuous chips materials) |
|
Cutter Head Rotational Speed(rpm) |
240~670 (Six Poles) |
|
Main Machine Motor Power(KW) |
90 |
|
Auxiliary Machine Motor Power(KW) |
7.5(Pinch of raw materials)+ 0.75(Finished out) |
|
|
Main Machine Size (Length*Width*Height) |
4.5m X 3.5m X 2.4m ( for your reference) |
|
Auxiliary Machine Size (Length*Width*Height) |
16.5m X 5.0m X 2.5m ( for your reference) |
|
Main Machine Weight (including auxiliary weight) (T) |
13.5 (17.5) ( for your reference) |
|
Total Capacity(KW) |
130 |
|
Compressed Air Supply(user need) |
0.5-0.8Mpa,1.8m3/min,0.8m3 gasholder,two-stage oil-water separator and compressed air freezing drier |
|
|
Sky Lyu |
|
haigewmlv |
|
|
+8618663865109 | ||
+8618663865109 | ||
2597918075 | ||
+86186638865109 | ||
If you have any other questions, just feel free to contact me at any time.
Also welcome to visit our factory for further negotiation!
