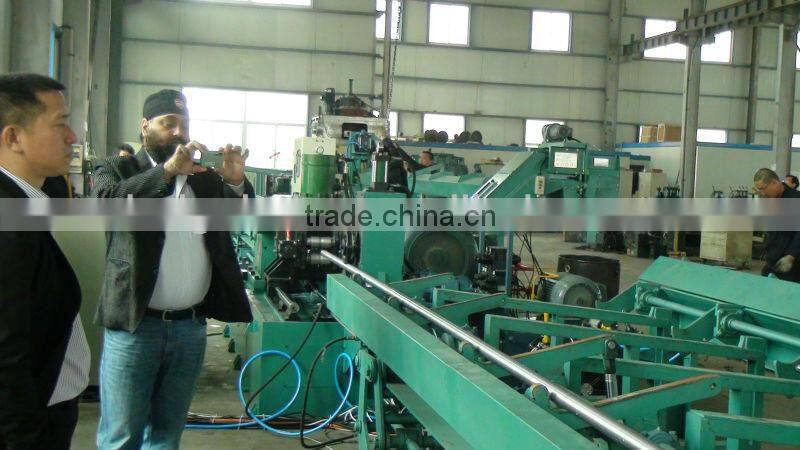

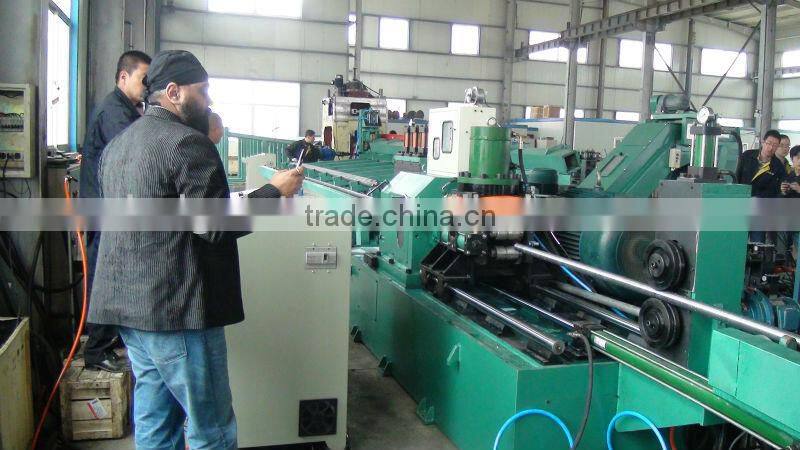

WXC80S CNC peeling for spring steel bar
|
Sky Lyu |
|
haigewmlv |
|
|
+8618663865109 | ||
+8618663865109 | ||
2597918075 | ||
+86186638865109 | ||
If you have any other questions, just feel free to contact me at any time.
Also welcome to visit our factory for further negotiation!
Main Technical Parameters—WXC80S
Specification |
WXC80S |
|
RAW |
Diameter Range(mm) |
Φ25~Φ80 |
Raw Material Length(mm) |
≥2200 |
|
Tensile Strength (M pa) |
≤1100 |
|
Surface Hardness |
≤HB320 |
|
Curvature(mm/m) |
≤1.50 |
|
Diameter Tolerance |
According to GB 702-2004 second group |
|
Roundness(mm) |
≤50% of the diameter tolerance |
|
Surface Roughness(Ra) |
≤25~50μm |
|
FINISHED |
Diameter Range |
Φ24~Φ79 |
Unilateral Cutting Depth(mm) |
0.25~1.25 |
|
Diameter Tolerance |
≤IT9 (standard tolerance grade) |
|
Surface Roughness(Ra) |
≤3.2μm |
|
Roundness(mm) |
≤0.03mm |
|
Feeding Cutting Speed(m/min) |
1.0-10.0(for continuous chips and high strength and hardness should reduce the speed) |
|
Cutter Head Rotational Speed(rpm) |
290~800 (Six Poles) 430~1200(Four Poles) |
|
Main Machine Motor Power(KW) |
75 |
|
Auxiliary Machine Motor Power(KW) |
5.5(feeding part)+0.75(discharging part) |
|
|
Main Machine Outline Dimensions (Length*Width*Height) m |
3.5m X 3.5m X 2.4m |
|
|
Full Set Machine Outline Dimensions (including auxiliary machine) (Length*Width*Height) m |
15.5m X 5.0m X 2.4m |
|
Main Machine Weight |
8.5 (11.5) |
|
Total Capacity(KW) |
95 |
|
|
Compressed Air Source (user prepare by themselves) |
0.5-0.8Mpa,1.8m3/min,0.8m3 gasholder,two-stage oil-water separator and compressed air freezing drier |
|
